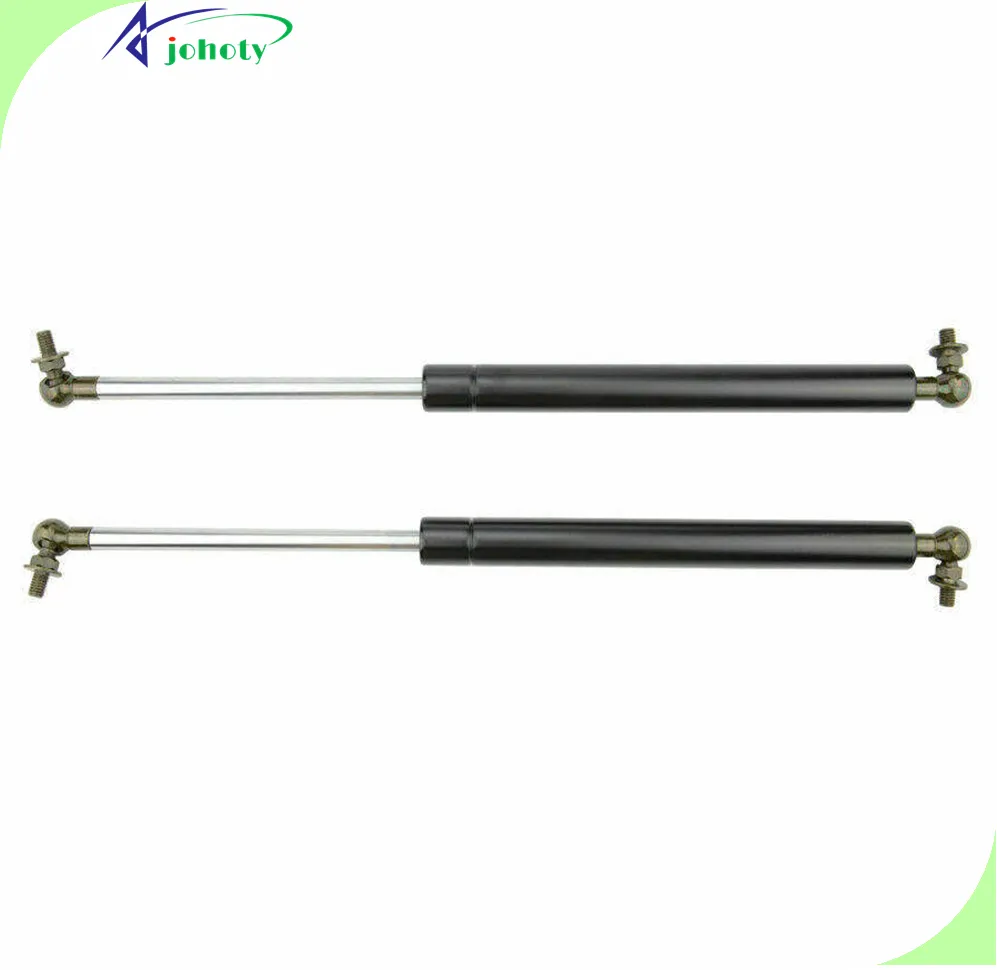

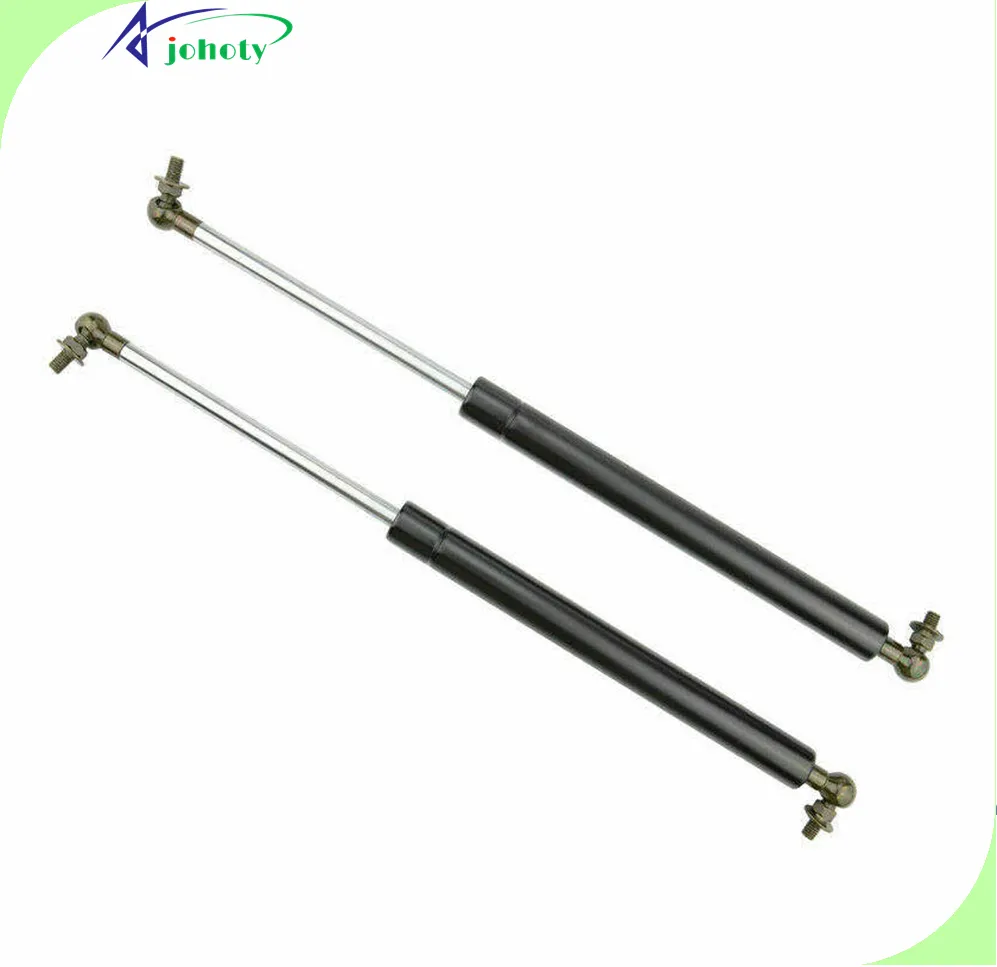

Car Gas Struts Description:
Product info: Car gas struts utilize the pressure support and buffering of gas and liquid. They can adjust movement speed and strength, and enhance the sophistication and comfort of automotive components. Suitable for car doors, hood, and seat adjustments.
Product features: Smooth operation, flexible installation, protect users. Maintain stability and avoid sudden closure. Long life, eco-friendly and energy-saving without external power supply, worry-free. Rust-resistance strong durability. Flexible size, suitable for multiple vehicle models.
Problem-solving: Insufficient or laborious support, unstable opening/closing of doors or tailgates, friction noise, rapid wear, excessive or insufficient force, adapting to environmental challenges, complex installation, time-consuming and laborious. Heavy-duty tailgate or hood manual opening and closing is laborious, with diverse requirements, easy damage, and high maintenance costs.
Specifications: Length 100-1,200mm, stroke 20-400mm, force 50N~2,000N. Rod diameter 6-20mm, Tube diameter 15-40mm, working temperature -30 ° C to+80 ° C optional: -40 ° C to+120 ° C
Applications: Hood, trunk lid, tailgate, door, seat adjustment, glove box, brmrest adjustment, chassis and suspension systems, engine cover, convertible top, truck bed cover, storage compartment, fuel door and cap.
Target industry: Automotive manufacturing, automotive parts supply, automotive modification, specialized vehicle manufacturing， commercial vehicle, EV & NEV, luxury and premium vehicle, used car maintenance and service, recreational vehicle and camper, performance racing vehicle
Customer benefits: Improve vehicle convenience and safety, extend service life, enhance vehicle sophistication, reduce energy consumption, meet customization needs, improve work efficiency, enhance customer experience, reduce long-term costs, and provide multifunctional applications.
Car Gas Struts Datasheet:
| Items | Details |
|---|---|
| Basic Info: | Name： Gas struts for passenger cars, commercial vehicles, buses and coaches, heavy vehicles, special vehicles, and high-quality gas springs. |
| Types： Compression, tension, locking, dampened, free, torque, adjustable, double-acting, customized gas spring. | |
| Position: Engine hood, trunk door, seat adjustment, window lift, sunroof, doors, center console, seat back, tailgate, mechanical device, bumper support. | |
| Specifications: | Force： 50 – 2500 N. |
| Stroke Length： 10 – 500 mm. | |
| Extended Length： 100 – 1200 mm. | |
| Compressed Length： 50 – 600 mm. | |
| Diameter (Tube)： 10 – 30 mm. | |
| Diameter (Rod)： 4 – 14 mm. | |
| Material： Steel, Stainless Steel, Aluminum. | |
| Gas Type： Nitrogen. | |

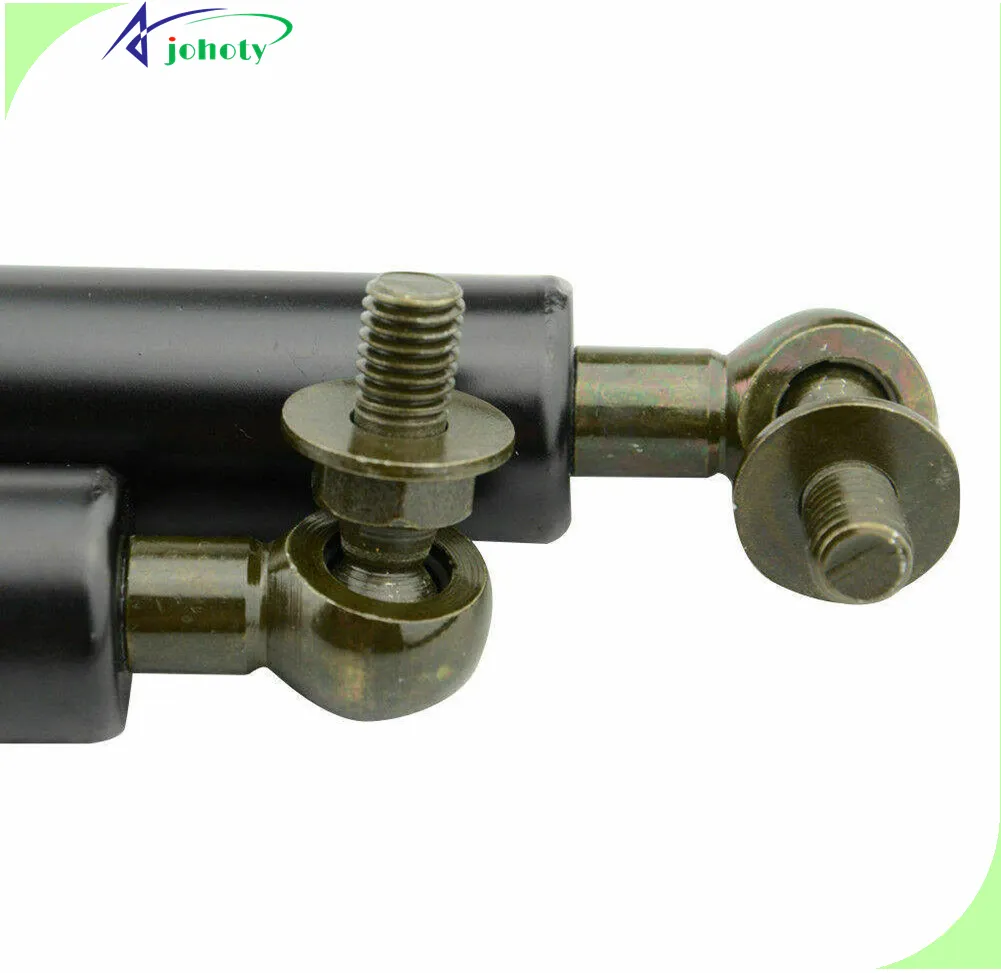

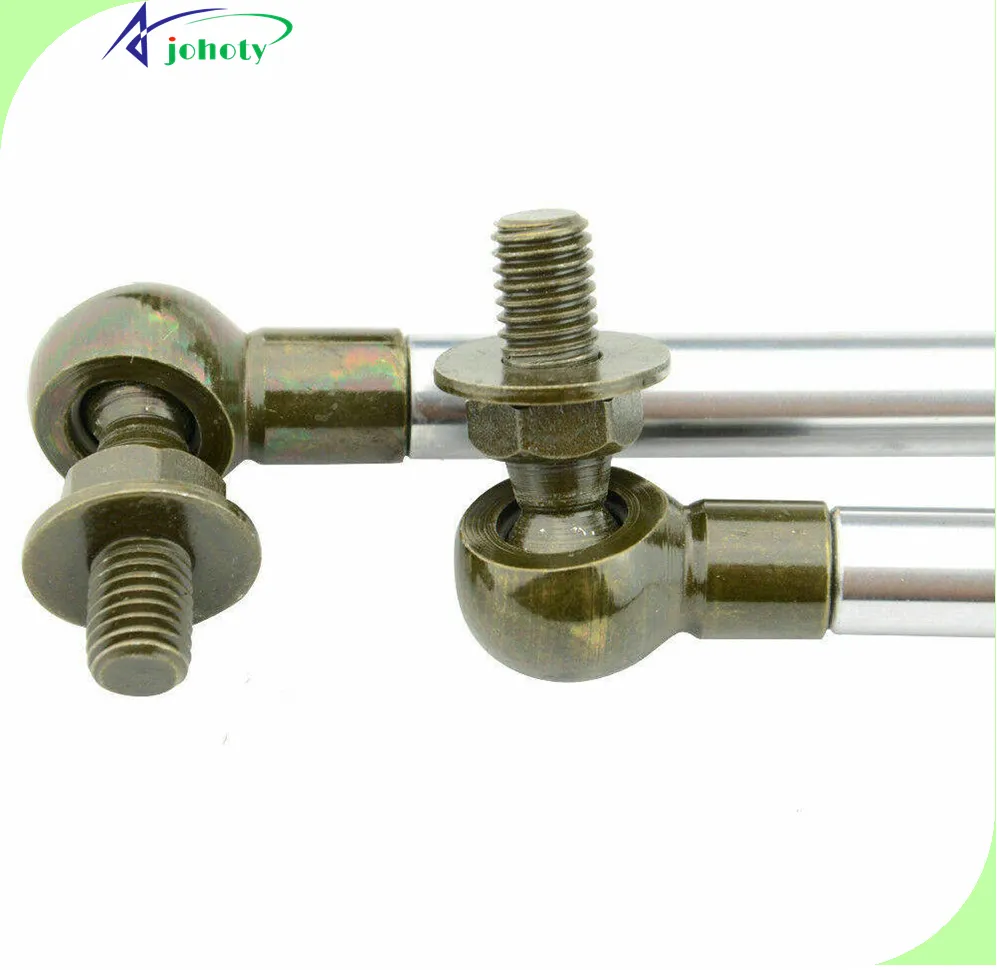

| End Fittings： Ball Socket, Eyelet, Threaded Studs. | |
| Operating Temperature： -40°C to 80°C. Custom. | |
| Finishing： Black Powder Coating, Zinc, Chroming. | |
| Cycle Life： 30,000 – 100,000 cycles. | |
| Force Tolerance： ±10%. | |
| Damping： Adjustable, fixed. | |
| Performance: | Pushing Force： 50 – 2500 N. |
| Pulling Force： 10 – 2000 N. | |
| Response Time： 5 – 50 ms. | |
| Leakage Rate： ≤ 0.2% per year. | |
| Salt Spray： ≥ 72 hours. | |
| Noise： ≤ 30 dB. | |
| Load： 5 – 200 kg. | |
| Spring Rate： 5 – 30 N/mm. | |
| Friction Coefficient： ≤ 0.1. | |
| Hardness： ≥ 200 HV. | |
| Lifespan： 2 – 10 years. | |
| Materials: | Cylinder： Carbon Steel, Alloy Steel, Stainless Steel, Aluminum. |
| Rod： Carbon steel, Chrome-Plated Steel, Stainless Steel. | |
| Seal Material： NBR, FKM, PU. | |
| Gas Type： Nitrogen. | |
| Oil Type： Hydraulic, Synthetic. | |
| Cylinder coating： Black Powder, Zinc, Phosphate. | |
| Rod coating： Chrome, Nickel, Black Oxide. | |
| Fitting： Steel, Aluminum, Nylon. | |
| Spring： Carbon Steel, Stainless Steel. | |
| Plastic： PA, POM, PP. | |
| Connection Types: | Ball Socket： Plastic, Steel, Aluminum. |
| Eyelet： Steel, Stainless Steel, Aluminum. | |
| Threaded Stud： M6-10. | |
| Clevis Bracket： Steel, Stainless Steel, Aluminum. | |
| Fork End： Steel, Aluminum. | |
| Quick Release： Plastic, Metal. | |
| L-Bracket： Steel, Aluminum. | |
| Pin： Steel, Stainless Steel. | |
| Flat Plate： Steel, Stainless Steel. | |
| Swivel Mount： Steel, Aluminum, Plastic. | |
| Package: | Poly Bag： Transparent, Anti-static, Eco-friendly. |
| Plastic Tube： Clear, Colored, Recyclable materials. | |
| Foam Wrap： PE Foam, EPE Foam. | |
| Cardboard Box： Kraft, Recyclable cardboard. |
Why Choose Johoty’s Car Gas Struts?
Johoty’s car gas struts have flexible customized sizes, 10 years life cycles, high performance. Johoty is trustworthy!
Car Gas Struts Benefits:
Operational Convenience
Johoty helps you reduce operational burden, automatically maintain the appropriate opening angle, provide invisible protection function, reduce long-term fatigue, extend vehicle components lifespan, enhance visual aesthetics and design experience, reduce accident handling troubles, reduce dependence on special tools, and provide a quieter switching experience.
Security Enhancement
We help you prevent sudden drops of components, provide smooth buffering, ensure component stability, reduce safety hazards caused by misoperation, lower the risk of accidental injury, protect children and pets, resist external environmental pressure, extend the life of mechanical components, enhance emergency reliability, and prevent secondary accidents.
Durability and Stability
We help you maintain consistent performance for a long time, withstand extreme environments, have strong corrosion and rust resistance, reduce frequent maintenance, have strong resistance to vibration and impact, extend component life, maintain smooth and stable switching, provide stable support, reduce damage caused by improper operation, and maintain a clean appearance and complete functionality.
Space Optimization
Johoty helps you save internal space by providing fully open-use space, maximizing trunk capacity, flexible design options, enhancing multifunctionality, improving the versatility of interior space, improving narrow spaces, enhancing space utilization, realizing hidden storage space, and improving the high-end feel of space design.
Car Gas Struts Applications:

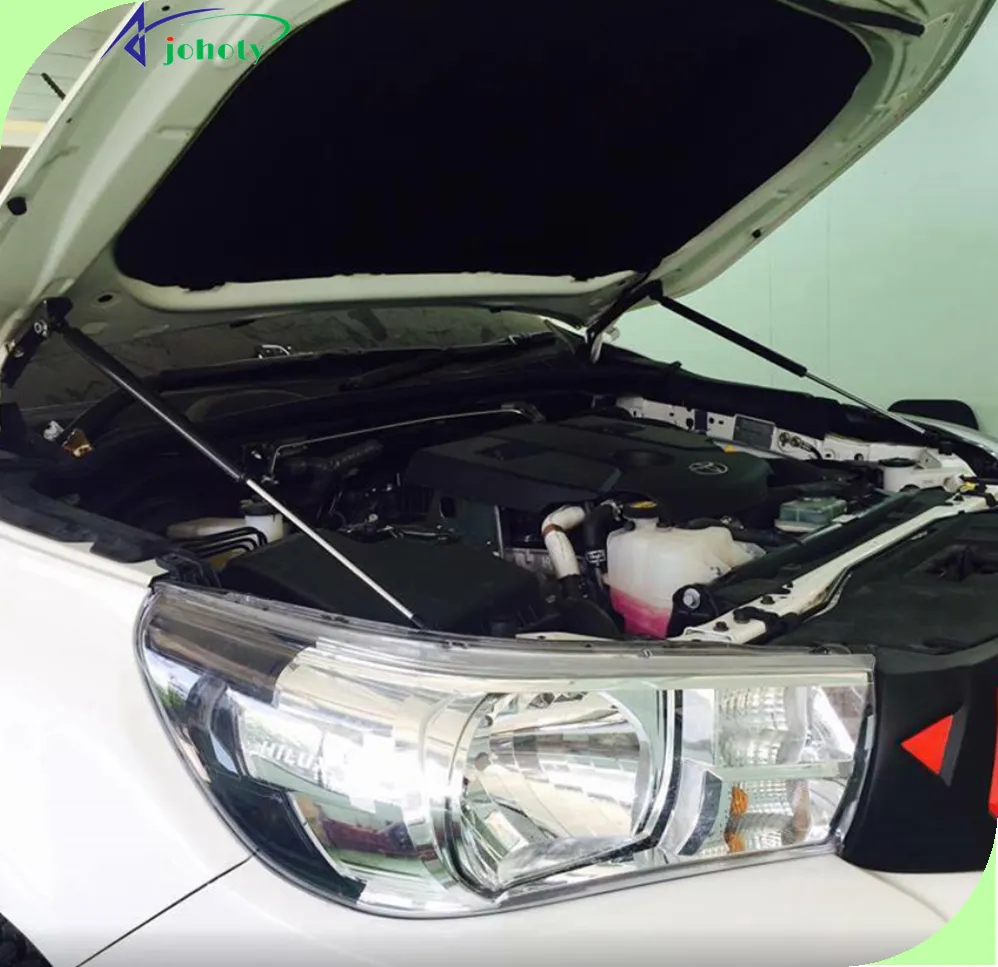

Car Hood Support
Gas struts can make it easy to open and close the hood, and also provide stable support without worrying about it falling off and hitting your hands. When you open the engine hood to check the oil or perform repairs, the gas strut can keep the hood at a safe angle.
And it is also very durable, even after being used many times, it will not lose its support. This design makes it more convenient and makes the car appear more advanced. If there were no gas springs, opening the hood would only require strong support, which is very unsafe. The gas spring has truly brought convenience to our lives.
Car Trunk Support
The trunk lid also relies on the help of gas struts. When you load and unload luggage, the gas strut can automatically stabilize the trunk lid, freeing up your hands and making it particularly convenient. Even if the trunk lid is heavy, with gas springs, you can easily open it with just a gentle push, and it will slowly rise without popping open at once.
This buffering design protects the vehicle’s body and avoids accidental collisions. It can be said that the gas spring makes every opening and closing of the trunk a pleasure.
Power-Assisted Door Switch
Many high-end cars are equipped with gas struts on their doors, especially for sliding or rear-opening doors. With gas strut, opening the car door doesn’t require too much force, and closing the door won’t make a loud bang. It can also keep the car door at a certain angle, without worrying about the door suddenly closing and trapping people. This design is convenient for children and the elderly and makes the car safer and more upscale to drive.
Car Seat Flexible Adjustment
Gas struts are hidden in the seat. If you want to adjust the seat, gas strut is effective to raise or lower it. It makes the adjustment very smooth and can also make the seat stop in the position you like. Sometimes when driving a long-distance bus, it is necessary to adjust the seat angle to relax, and gas springs make the adjustment particularly easy. Without it, adjusting the seat may become awkward and require a lot of force.
Automatic Window Lifting System
The automatic lifting system of the car windows also uses gas strut technology, which makes the opening and closing of the windows smoother and avoids hand pinching. Sometimes if the car window is not closed properly, pressing a button and gas struts can help the glass rise or fall smoothly. It enhances your driving experience and makes the car interior appear more comfortable. This design is particularly suitable for families carrying children, as it is both convenient and safe.
Car Sunroof Assist
Many people like sunroofs, but did you know that the opening and closing of sunroofs are also thanks to gas struts? Gas strut can make the operation of the sunroof switch smoother and maintain a certain angle of ventilation. For example, if you want to open the sunroof for ventilation, it can slowly lift or slide without suddenly opening completely. This design makes driving feel more comfortable, especially suitable for outings.
Automatic Lifting of Vehicle Tailgate
The automatic tailgate system also relies on gas struts. Nowadays, many SUVs or commercial vehicles support one-touch opening and closing of the tailgate, which requires a gas strut to provide lifting assistance. If you are holding a lot of things in your hand, pressing the tailgate switch will smoothly open or close it, which is very effortless. This design makes life more convenient and makes the car look very high-end.
Automotive Suspension System
Gas struts are also important in shock absorption systems. It can help absorb road bumps and make driving smoother. When passing speed bumps, having a gas strut greatly reduces the shaking sensation inside the car. This technology makes the driving experience more comfortable and protects the parts inside the car from excessive vibration damage. It can be said that gas springs make cars run smoother and more durable.
Car Gas Struts Advantages:
Stable Lifting Performance
Gas struts can make the opening and closing of car doors, windows, or trunks very smooth, just like someone is gently supporting you, without sudden force or falling off. This can protect the parts of the car and make the users feel more at ease. If you happen to need to take things up and down, this stable performance is very considerate.
Superb Durability
Gas struts used in cars are not easy to break! Because its design pays special attention to wear resistance, it can maintain good condition even after being used many times a day. And the quality is great, it can adapt to the temperature difference between hot and cold, so you don’t have to worry about it going out in winter or summer. For people who often drive, gas strut is really reliable!
Easy to Install
You know what? Installing gas struts is not at all troublesome! It adopts a very simple design, which is particularly popular among car manufacturers and maintenance technicians. You need to only complete very simple installation, saving time and effort. Even if one day it needs to be replaced, it won’t be too difficult, it’s really convenient!
High Load-bearing Capacity
Although the gas strut may not be large, its load-bearing capacity is extremely strong and can easily support the weight of the trunk or doors. Like a hidden strongman, it makes you more worry free when using a car. No matter how much luggage you pack, don’t worry about the gas strut not being able to handle it!
High Security
The design of gas struts pays special attention to safety. It will not explode due to sudden pressure changes and has a special protective structure to prevent finger or body injuries. For families with children, this design is very thoughtful, and the gas strut can make you feel very at ease when using the car.
Good Mute Effect
If you hate cars making all kinds of noisy noises, then you will definitely like gas struts. Its working process is very quiet, and almost no sound can be heard. When closing the car door or opening the trunk, there will be no clicking sound, making the entire experience more comfortable.
FAQ
1. What is the gas struts working principle?
Gas struts utilize internal nitrogen pressure to generate thrust or pull-through piston movement. Thereby supporting or controlling the opening and closing of moving components.
2. How do choose the correct gas struts?
When choosing, consider the length, force (usually expressed in Newtons), stroke length, and end-fitting type of the gas struts. This can ensure compatibility with the applications and installation requirements.
3. What types of vehicles are gas struts suitable for?
Gas struts are suitable for various types of vehicles, including sedans, SUVs, trucks, sports cars, etc. Used for components such as tailgates, hoods, roof covers, etc.
