Custom Pogo Pin Connector Can Solve Connection Challenges
Johoty rarely defines a spring loaded connector or interconnect by one specification. We can design the custom pogo pin connector to carry meaningful current while occupying very little PCB area. You can repeatedly dock and your clients won’t need to align the male end and female end precisely.
That is why Johoty approaches custom pogo pin connector as a perfect system-level engineering task. With this, our clients can maintain stable contact during the vibrates, shifts or accumulates dimensional tolerance. Johoty can also help clients integrate power, ground, sensing and communication signals/data inside one compact interface.

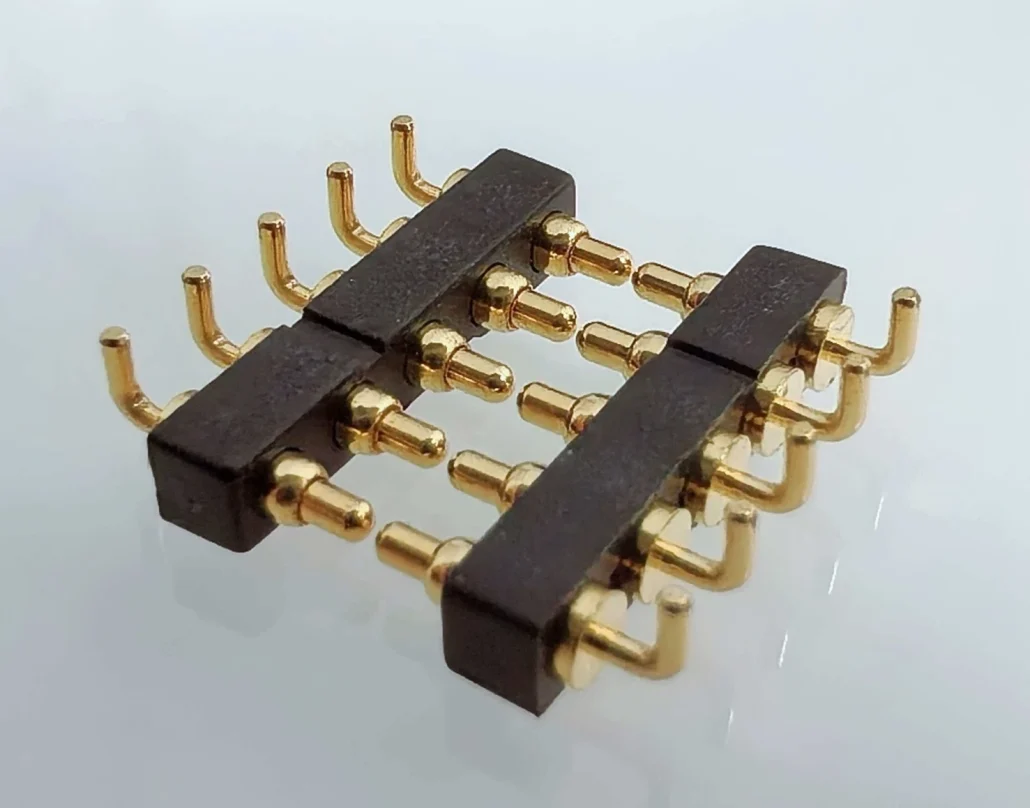

Limited Space:
Many clients have the restriction on board area or product thickness. Johoty can evaluate contact diameter, compressed height, and pitch together. Also, we can evaluate pin arrangement, housing geometry, and termination method together. We don’t optimize one dimension at the expense of dimensions else.

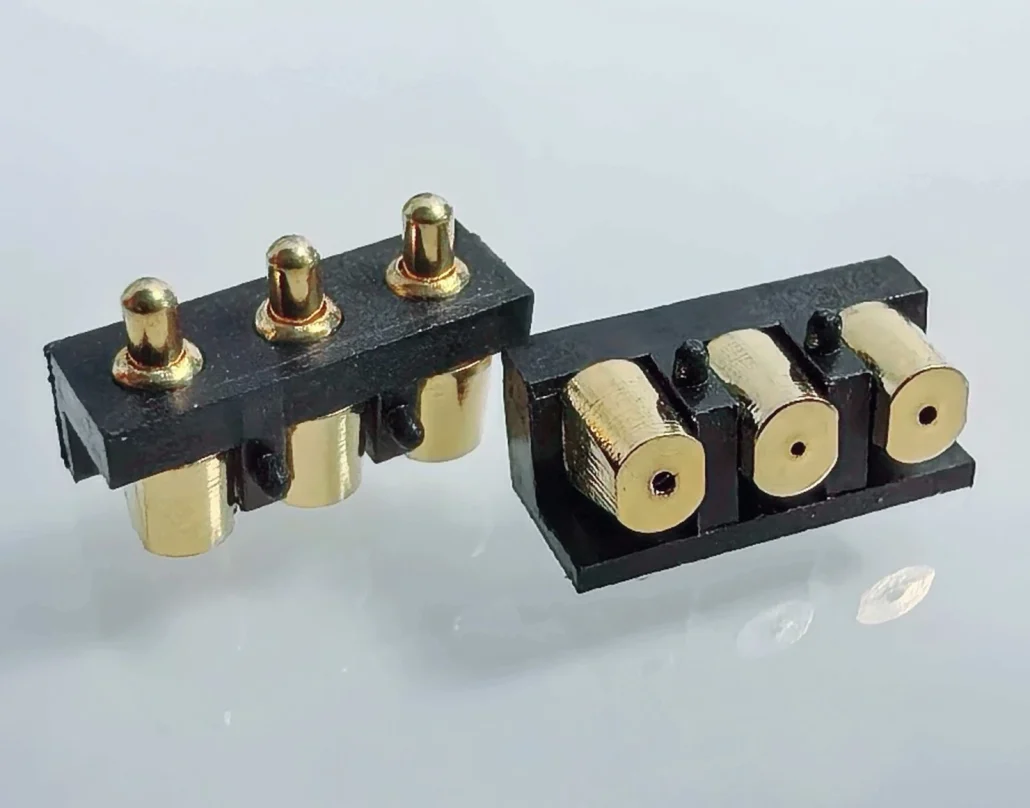

Power in a Compact Interface:
Johoty doesn’t determine the current by a marketing label only. We design it based on contact geometry, conductive materials, and contact resistance. We also customized our pogo pin connector based on plating, temperature rise, life cycles and pin counts. For demanding power, Johoty can evaluate the electrical path as part of custom pogo pin connector structure.

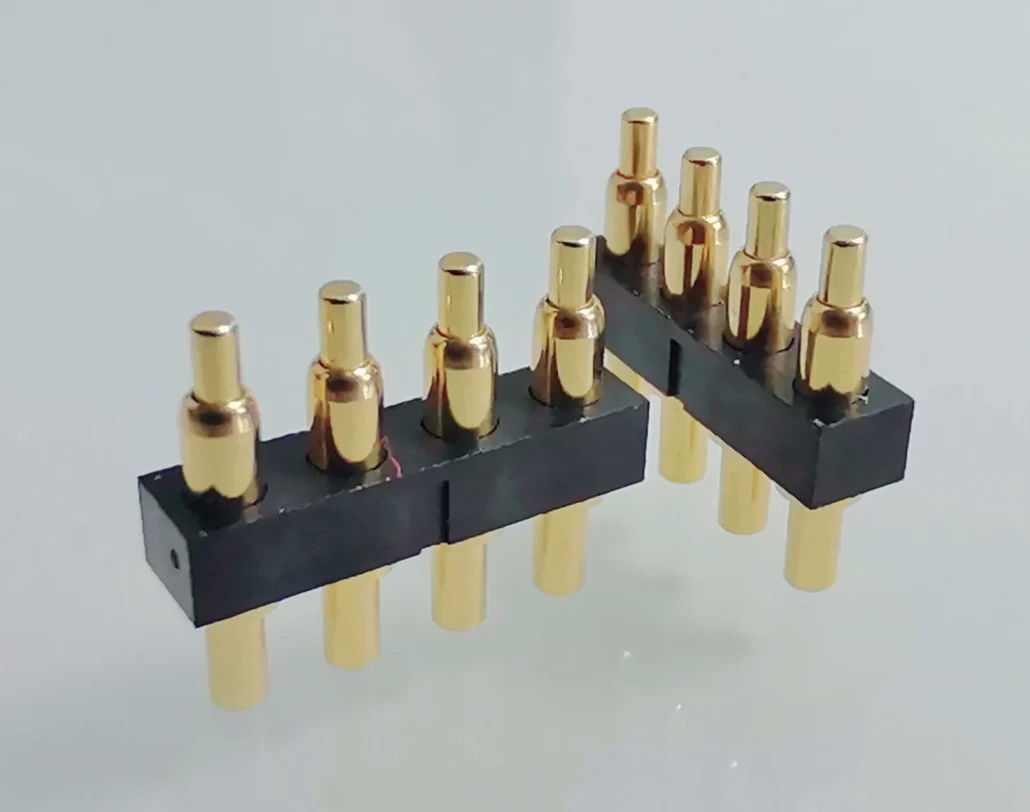

Repeated Docking:
Clients need connectors to experience frequent mating in charging docks, handheld devices, robotic systems, removable modules and service interfaces. To solve clients’ challenges, Johoty always consider spring force, working stroke, and contact geometry together. We also focus on target design, plating and mechanical guidance together.

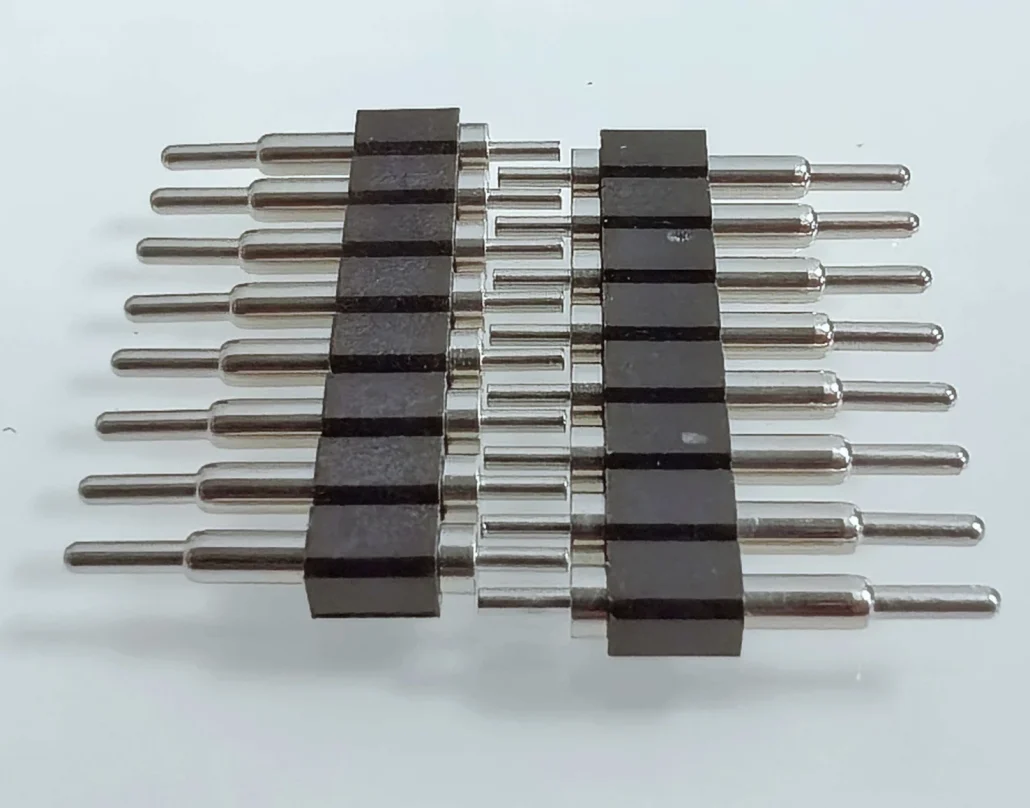

Imperfect Alignment:
There always are mechanical tolerances in real products. This can create axial, lateral or angular offset during PCB placement, enclosure molding, assembly variation and user-controlled docking. Johoty can properly engineer spring-loaded interface with compliant contact travel, target geometry and mechanical guidance for more forgiving connection.

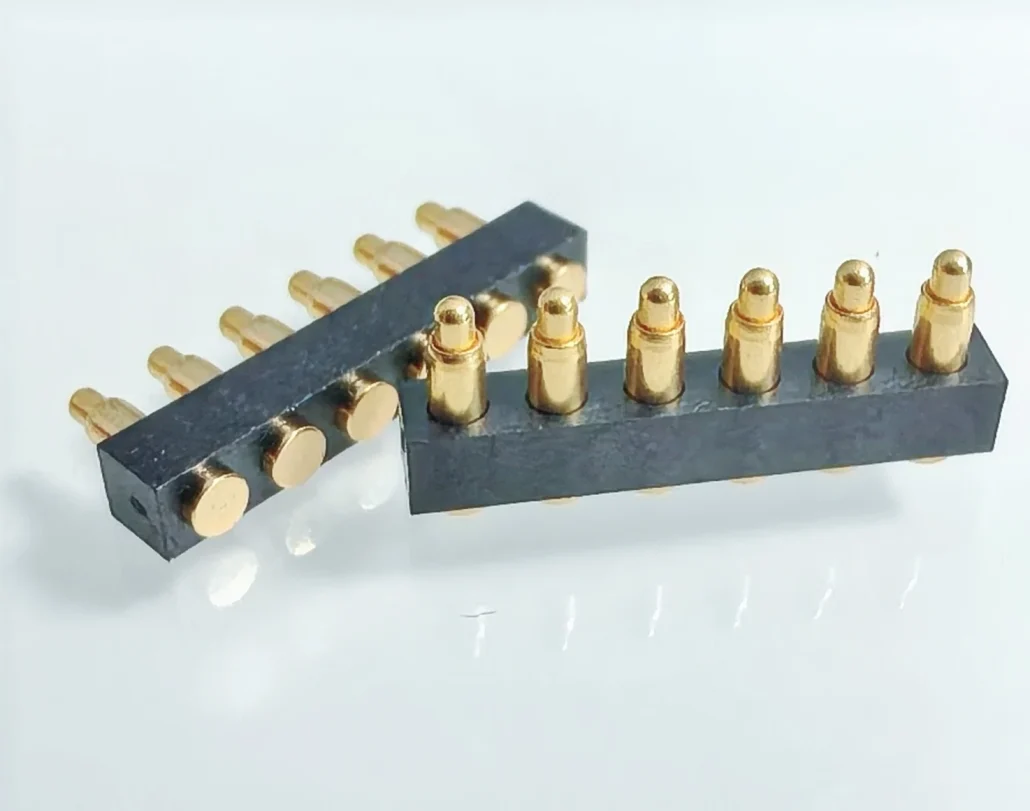

Harsh or Exposed Environments:
Many clients often encounter water, dust, sweat, cleaning, vibration or temperature changes and need to protect the connectors. Johoty can design the custom pogo pin connector perfectly from the beginning rather than treated as an afterthought. Clients can get IP67 or IP67 waterproof pogo pin connector for outdoor, seawater, automotive, and so on.

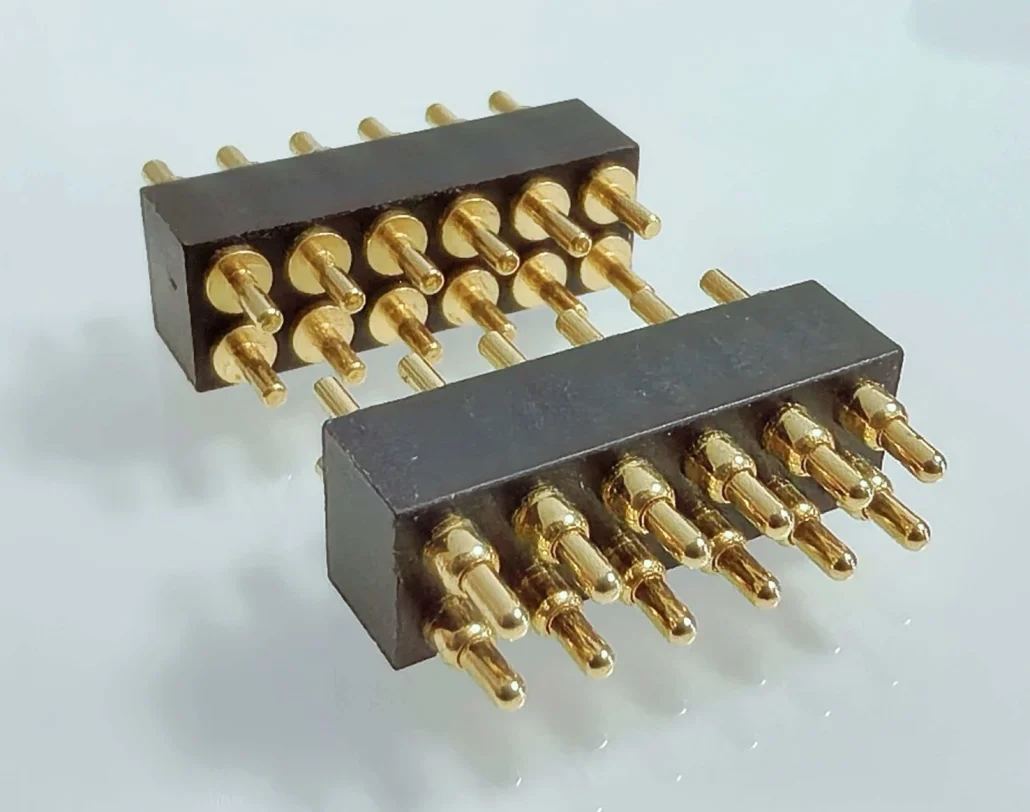

Mixed Electrical Functions:
More and more clients ask for power, ground, low-current signal, detection and communication contacts in one connector. Johoty can develop custom pogo pin connector to organize these functions within one mechanical interface. We always consider current paths, spacing, sequence and manufacturability in mind together.
Custom Pogo Pin Connector Around Your Mechanical and Electrical Architecture
Johoty never considers the custom pogo pin connector as more than changing pogo pin count only. We can design a custom pogo pin connector around the mechanical dimensions and functional requirements.
Many clients’ projects often begin with a complete engineering drawing or an existing connector. They always need improvement, PCB layout, housing model and mounting, or optimized performance requirements. Johoty can translate those constraints into a manufacturable spring loaded connector.
Contact Architecture:
Johoty can flexibly configure pogo pin number and arrangement according to the electrical functions of your device. Clients can get the linear, dual or multi-row, circular, asymmetric and application-specific layouts to match available space and mating.
Johoty can perfectly arrange power, ground, sensing and signal positions according to clients’ intended electrical architecture. We never force every pogo pin or contact pin to perform the same function.
Pitch and Density:
Johoty can select the right pitch according to contact size, electrical isolation, manufacturing tolerance and available PCB area. We can help our clients to achieve various pitches of 1.00mm, 1.27mm, or other custom pitch.
We can balance miniaturization with sufficient mechanical stability and production consistency for dense layouts, connector geometry. On pogo pin distance, pitch, height and working stroke, we can help clients with perfect solutions.
Working Height and Stroke:
All clients always value the working stroke and spring force to achieve a controlled compression. In fact, it is also important for client’s devices. Especially, for those structure restrictions, ≥0.10mm working stroke can help client solve the connection compensation and stability.
Johoty can tailor free height, working height and max compression in our custom pogo pin connector. This will match the distance between mating surfaces and the tolerance stack of the complete assembly.
Spring Force:
For custom pogo pin connector, Johoty customizes spring force to ensure contact stability, total mating force, wear and user experience. Many clients require <5% spring force attenuation after 100,000 life cycles, or continuous compression during life cycles. Yes, it is achieved.
Johoty can configure spring force as a system according to pogo pin count, required normal force, stroke and mechanical design. Because the increasing force at each individual pogo pin can dramatically increase the total force of complete connector.
Plunger Tip and Target Geometry:
Johoty can provide clients with >10 types of plunger tips, including flat, rounded, pointed, crown, and so on. Each type of plunger tip can perfectly match the target surface, required wiping behavior, contact area and application. Clients can also specify the plunger tip shape or refer to our proposal for the projects.
We always consider the mating target and the plunger tip together for our custom spring loaded connector whenever possible.

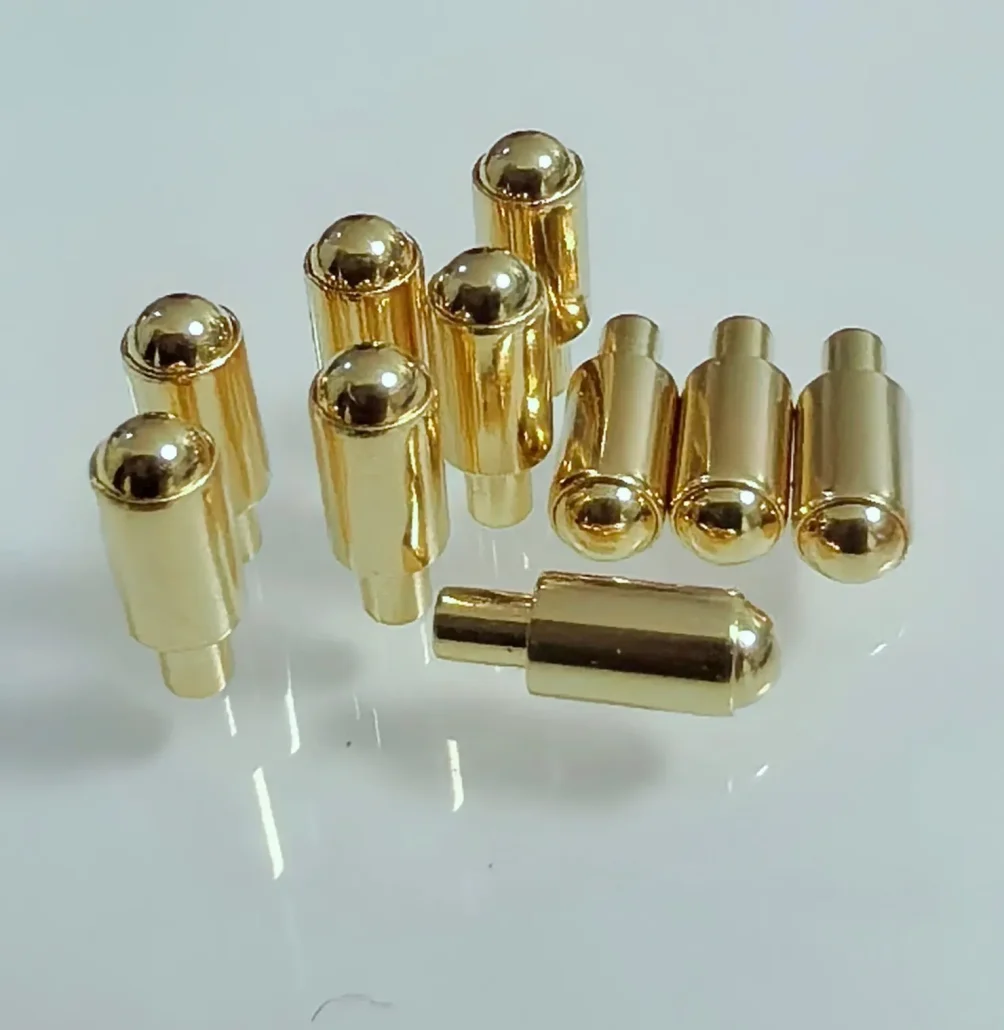

Materials and Plating:
Many clients ask custom pogo pin connector for outdoor, seawater, automotive, and so on. To meet client’s requirements, Johoty can accurately select the base materials and surface finishes. Including nickel, gold, Pd, Pd, silver, Ru, Rh as pogo pin plating, or composite plating. We can customize these solutions for conductivity, mechanical wear, corrosion environment, contact resistance and expected mating life.
We can also specify gold plating thickness and underplating to guarantee actual performance instead of only appearance.
Housing Design:
Johoty customizes the plastic housing much more than appearance only. We need to complete IP67 or IP68 waterproof, smooth mounting or fixation in devices, or high speed/frequency with EMI shielding.
Johoty can perfectly customize plastic housing around the product architecture. We don’t require client to redesign the product enclosure around a standard connector. Then, our clients can get perfect pin positioning, insulation, and mechanical guidance. And, they can get correct polarity, mating orientation, retention, sealing and integration with the enclosure.
PCB and Assembly Integration:
Johoty can flexibly design the custom pogo pin connector to match client’s product architecture, including round, rectangular, and special shapes. On mounting, we have custom solutions for SMT, through-hole, soldered, right-angle, cable-integrated or other application-specific termination structures.
Our objective is not simply to manufacture the custom pogo pin connector only. Johoty is to make the connector practical to assemble into the final product.
Custom Pogo Pin Connector Specifications
Johoty can design perfect spring loaded connectors with the following specifications during our custom connector project. You can get a custom pogo pin connector depending on connector geometry, electrical load, materials, IP67/IP68 and validation criteria.
| Parameter | Value |
|---|---|
| Pin Count | ≥2 pins, custom. |
| Pin Arrangement | Linear, dual-row, multi-row, circular, asymmetric, custom, |
| Pitch | Custom ≥1.00mm, |
| Overall Length | ≥1.60mm, custom, |
| Working Stroke | ≥0.10mm, custom, |
| Spring Force | ≥15gf, custom ≥5gf based on special dimensions, |
| Current Rating | Up to continuous 50A, cusotm, |
| Voltage | Standard voltage up to 550V, custom up to 5,000V, |
| Contact Resistance | As low as 20mΩ, custom 10mΩ， |
| Insulation Resistance | Custom ≥100MΩ，≥1,000MΩ， |
| Signal / Data Function | Power, ground, detection, sensing, low/high-speed signal and data contacts， |
| Plunger Tip | Flat, round, pointed, crown, cup, ball, custom, |
| Plunger Material | Copper alloy, BeCu, SUS, custom, |
| Barrel Material | Copper alloy, SUS, BeCu, custom, |
| Spring Material | Stainless steel, SUS631, BeCu, SWP-B, custom, |
| Pogo Pin Plating | Gold plating, silver, Pd, Pt, Nickel, Ru, Rh, custom composite plating, |
| Gold Thickness | Up to 200μin, custom, |
| Housing Material | PA9T, PA46, HTN, PEEK, custom, |
| Mounting | SMT, through-hole, right-angle, double ended, solder, cable-integrated or custom, |
| Mating Target | PCB pad, contact pad, target pin, target plate or mating interface, custom, |
| Working Temperature | From -45℃~85℃, custom up to 200℃， |
| Life Cycles | up to 500,000 times, custom, |
| Environmental Protection | Custom IP67, IP68, including IP65, |
| Mechanical Alignment | Guiding structure, magnetic assistance, errorproof, custom, |
| Tolerance Compensation | Can compensate by working stroke, custom, |
| Magnet Integration | Errorproof with S-pole and Z-pole, custom, |
| Cable Integration | Custom cable and termination, |
| Prototype | Johoty can offer prototype samples, lead time is 2 weeks, or 4 weeks based plastic molding, |
| Documentation | Johoty can offer 2D drawing, 3D model, dimensional specifications and applicable engineering documentation |
Customize the Complete Connector Architecture
Many design engineers are looking for custom pogo pin connector, Johoty can provide them with a complete mating interface.
Our clients can get the spring loaded connector with the required pin count, pitch, and contact layout. We must meet spring force, stroke, and working height. Many clients ask for special termination, housing geometry, and mating life cycles, we can achieve them. For clients’ applications, Johoty can also customize it according to mechanical alignment, polarization, retention, sealing, or magnetic assistance.
Contact:
In medical, aerospace, smart wearable, clients always emphasize plunger diameter and profile, spring force, barrel diameter and working stroke. Because clients need to get the expected electrical performance, available package space and mechanical duty.
Johoty always customize identical mechanical dimensions and electrical parameters for different contact functions. Our custom pogo pin connector often uses dedicated contact or positions for power, ground, sensing and signal functions.
Mechanical:
Clients have different design concepts for different project. Johoty must flexibly offer the housing around client’s PCB, enclosure, panel or docking structure. We aren’t allowed to force client’s industrial design around a predefined connector outline.
We can offer our clients straight, right-angle, recessed, and surface-mount. When clients need through-hole, soldered, wire-terminated or application-specific mounting, we can follow up. For the expected mechanical alignment, we can also offer reliable custom pogo pin connector for lateral or angular mating variation.
Environmental:
More and more clients design equipment for environments exposed to moisture, dust, cleaning processes or outdoor operation. So, Johoty needs to customize the sealing together with housing geometry, mating compression and materials based on injection molding.
Finally, Johoty’s clients can get an application-specific interface with IP67 waterproof or IP68 waterproof after validation of the final assembly.
User Interface:
Many connections must be intuitive and convenient for an operator, patient, technician or automated docking in many clients’ projects. So, Johoty always are asked to design magnetic assistance, blind-mate geometry, asymmetric layouts, polarization and controlled engagement. Sure, these functions are achieved.
Finally, clients won’t need a catalog connector with a modified housing. Johoty need to customize an interface around how clients’ product actually connects.
Engineered Custom Pogo Pin Connector Your Product Won’t Compromise
Many clients hope a custom spring loaded connector to begin with their device architecture. They always send Johoty the PCB layout, available connector housing, mating life cycles, enclosure model or interface drawing. We can evaluate clients’ requirements how the connector interacts with the complete assembly.
Compact devices: Johoty can minimize footprint and working height while preserving enough working stroke to absorb tolerance.
Johoty can layout pogo pins around GND, current distribution and signal for combined power and data interfaces. We won’t simply fill a housing with identical pogo pins or target pins.
Charging docks: Our custom pogo pin connector can achieve repeatable engagement. The users aren’t worried about placing the device in exactly the same position every time.
Johoty can prioritize mechanical, electrical and manufacturing by our application-first process and our tooling and production lines.
Read More
Industrial equipment: Johoty’s custom pogo pin connector can maintain electrical continuity under vibration, contamination or frequent maintenance cycles.
Higher-current systems: Johoty can customize larger or parallel current pogo pins, appropriate spring force, low-resistance interfaces and thermal verification.
show less
What to Send for a Faster Engineering Review?
A complete CAD package is helpful for Johoty. You can start with available connector housing, pin count and functional pin map, target current and voltage. We need PCB or enclosure drawing, preferred mounting method, mating direction, required stroke or tolerance range.
Johoty also need your expected mating cycles, operating temperature. As well as water, dust, chemical or cleaning exposure. For perfect solutions, we need shock and vibration conditions, magnetic retentions. It is very important for us to know annual volume and prototype quantity, regulatory or validation requirements.
Read More
If you don’t know some values, please identify the system requirement first. Johoty can make engineering decisions from the actual use case.
show less
Reliability and Proven Verification of Custom Pogo Pin Connector
Johoty engineers high reliability of our custom pogo pin connector under clients’ test condition. For a custom pogo pin connector, high reliability depends on the interaction between contact sizes, spring force, working compression. Johoty can achieve it based on plating, mating life, housing accuracy, environmental exposure and mechanical performance in final assembly.
We can define a validation plan around clients’ requirements. Depending on the application, Johoty’s verification includes dimensional inspection, spring-force measurement, stroke verification, contact-resistance measurement. Clients can also get insulation testing, dielectric testing, temperature-rise evaluation, mating-cycle testing and environmental or mechanical testing.
Johoty always prioritizes getting client’s agreement on acceptance standards for shock, vibration, moisture or temperature cycles. We won’t state generic mating-cycles only when to define actual connector architecture and working compression by cycle-life tests. And, we can validate the final sealing at the assembly processes of connector geometry, enclosure tolerances, and gasket compression.

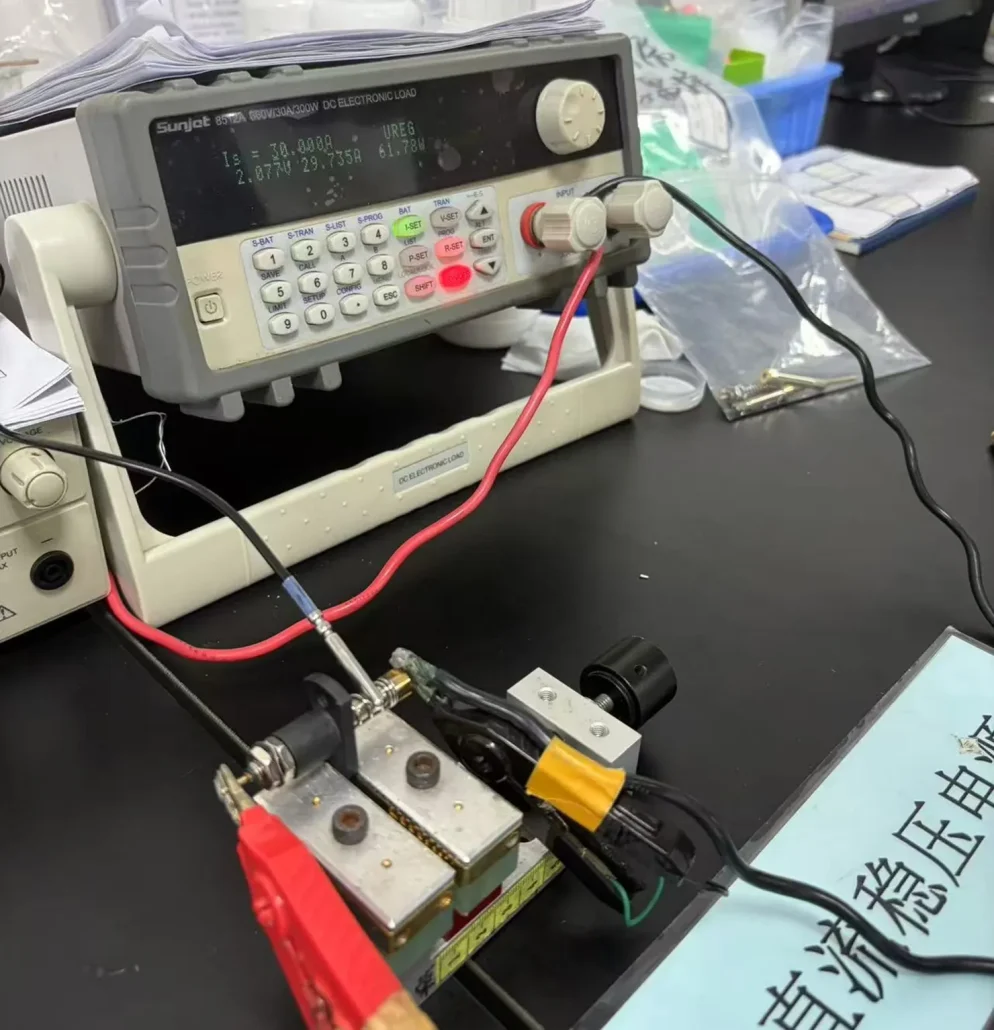

For high current carrying contacts, Johoty always evaluate electrical performance together with thermal rise, contact resistance. We can treat tight tolerance as a mechanical system, because many clients require blind-mate interfaces. And, we always allow our custom pogo pin connector to reach the intended working position by guidance and compliance. We won’t allow to side-load the custom pogo pin connector beyond Johoty clients’ approved condition.
Custom Pogo Pin Connector Contact Performance Begins at the Material and Plating
Many clients know a pogo pin is a moving electrical contact. They also know pogo pin conductivity, wear, corrosion, spring stability and contact resistance are influenced by the materials and surface.
We can customize the perfect plunger according to the required electrical load, mechanical duty, mating frequency and environment. Johoty often uses brass for the conductive contact according to clients’ required balance of conductivity, hardness and mechanical performance. We also use spring materials according to clients’ required force, operating temperature and life cycles.
Johoty can also define the gold plating or composite coating by actual applications instead of a generic thickness table. Our clients can get a corrosion-resistant contact surface for low and stable contact resistance by gold plating. And, they can get the perfect adhesion, diffusion resistance and wear behavior by underplate and base material.
We always evaluate contact surface, plating thickness, plunger geometry and target material as one tribological system for repeated mating. We select housing materials according to dimensional stability, dielectric requirements, temperature exposure, molding geometry and assembly process.
Johoty carefully considers spring material by temperature, compression and exposure to the intended environment for IP67 or IP68. So, we always emphasize the materials of custom pogo pin connector as an important part of our perfect design. Please note, it’s not an a purchasing decision after geometry is frozen.
Custom Pogo Pin Connector From Requirement to Production
1. Application Review:
We need to know the electrical, mechanical and environmental requirements of the connection. We always review the available space, pin functions, mating conditions. It’s also critical for mounting method, current requirements, tolerance and production expectations.
2. Connector Architecture:
After reviewing client’s applications, we will define pogo pin arrangement and geometry and working stroke. And, we also finalize spring force, housing concept, mounting and mating. We need to also identify excessive total force, insufficient compliance, thermal concentration, or difficult assembly.
3. DFM and Drawing Review:
At Johoty, we internally review the connector design for manufacturability, assembly, inspection and production repeatability. If need, we can send DFM to our clients. And, we will identify the critical dimensions and functional requirements on the engineering drawing together with clients.
4. Prototype:
When clients approve official drawings, Johoty can help evaluate custom pogo pin connector inside the actual device by prototype samples. Sure, we need to finalize production tooling and processes first.
5. Verification:
When receive custom pogo pin connector samples, clients can check electrical, mechanical and dimensional performance against the agreed specification. Johoty can strictly produce the custom pogo pin connector according to the finalized drawings. Our clients can test project-specific reliability by defined conditions and acceptance criteria.
6. Design Freeze:
After clients’ validation, Johoty’s clients can finalize geometry, materials, plating, tolerances and inspection requirements through the released specification. Clients can also fine tune some mechanical dimensions, we can repeat the previous steps and freeze them together.
7. Production Control:
Johoty need to control incoming materials, critical dimensions, assembly parameters and functions according to the production plan. Our clients can receive samples in 2 weeks, receive samples in 4 weeks if molding or injection molding are needed. For molding lead time, we need 25 days, and complete assembly and test in 3 days.
8. Change Control and Traceability:
For client’s ECO and ECN, Johoty can surely support each change. And, we always review and document each change affecting fit, function, material or performance before implementation with our clients.
Applications of Custom Pogo Pin Connector

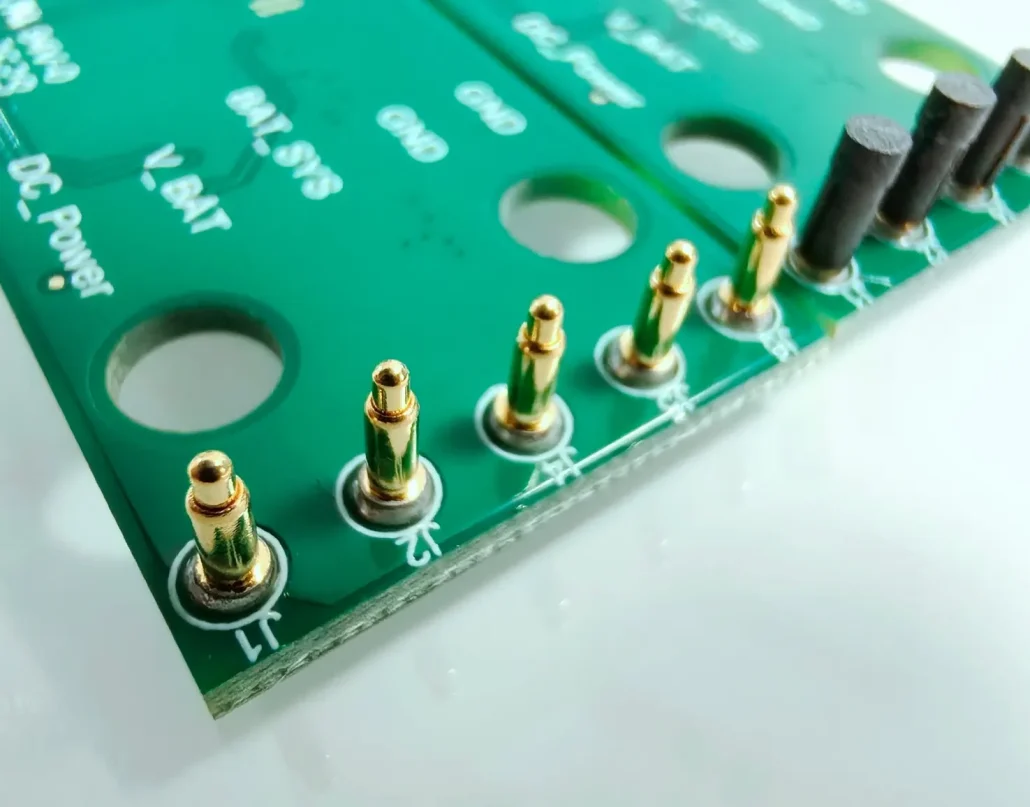

Medical and Diagnostic Equipment:
Johoty can provide our clients with custom pogo pin connector in compact charging, docking and removable-module interfaces. Clients can get repeatable connection, clean industrial design and controlled mating behavior.
In clients’ medical projects, Johoty can flexibly design the custom pogo pin connector specifications. All connectors strictly follow the device’s applicable regulatory, cleaning, electrical and environmental requirements.

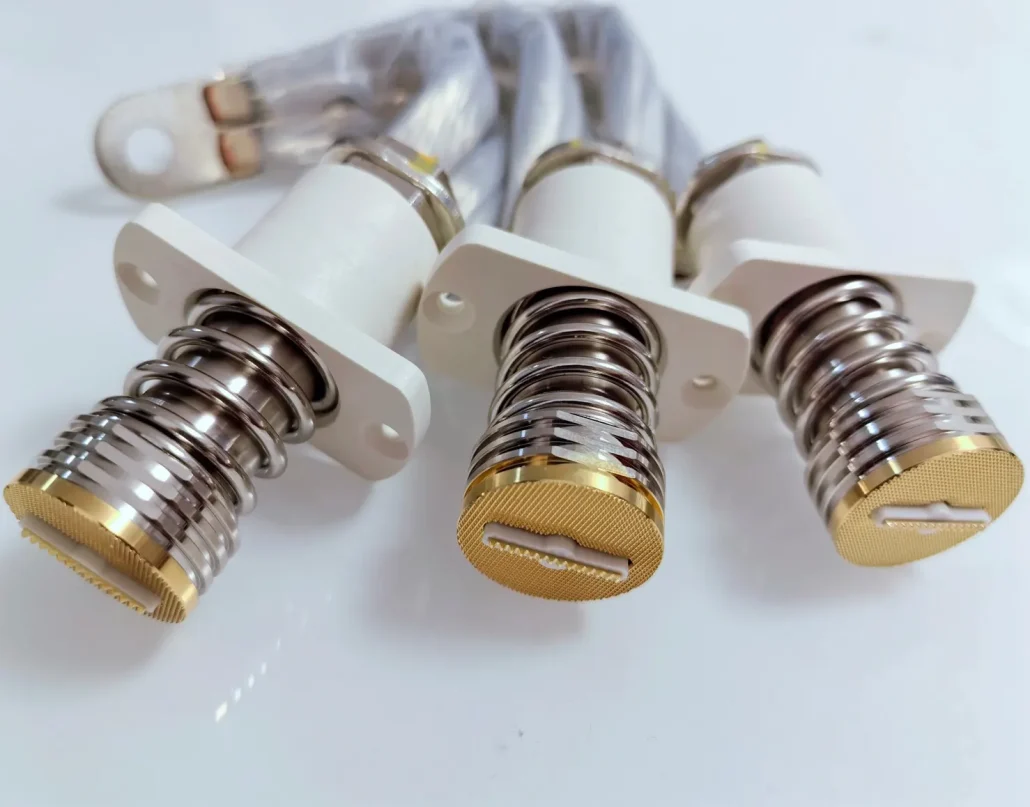

Robotics and Industrial Automation:
Many clients are from various different projects about robot end effectors and mobile equipment. They hope to get perfect connectors for their sensors, replaceable modules and automated docking. So, they often ask Johoty for custom pogo pin connector to tolerate repeated engagement and positional variation.
Then, our clients can accommodate mechanical tolerance in their projects. They can also manage the larger mating error through our spring-loaded compliance.

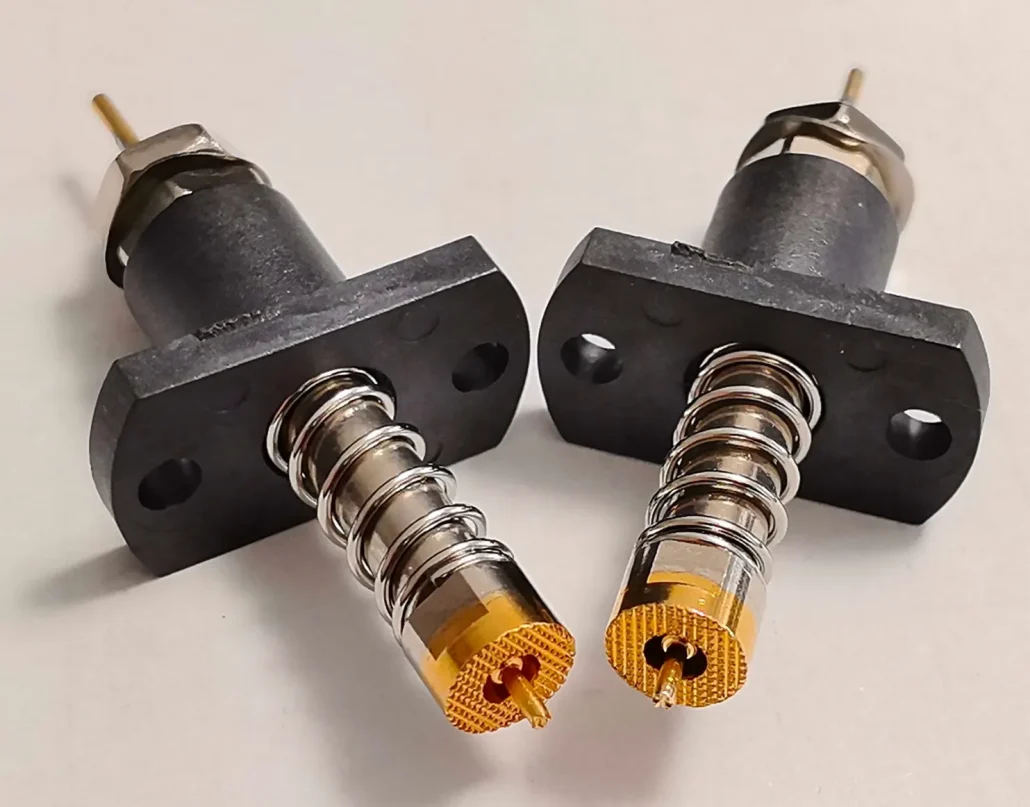

Charging Docks and Portable Equipment:
Johoty can customize simple engagement, compact packaging and tolerance absorption for our clients’ charging interfaces. For example, pogo pin with round plunger tip can match the concave surface of target pin.
If user alignment is inconsistent, Johoty can integrate mechanical or magnetic guidance in the custom pogo pin connector. For user, it will be very convenient to bring mating surfaces into intended position before plunger tip reach working compression.

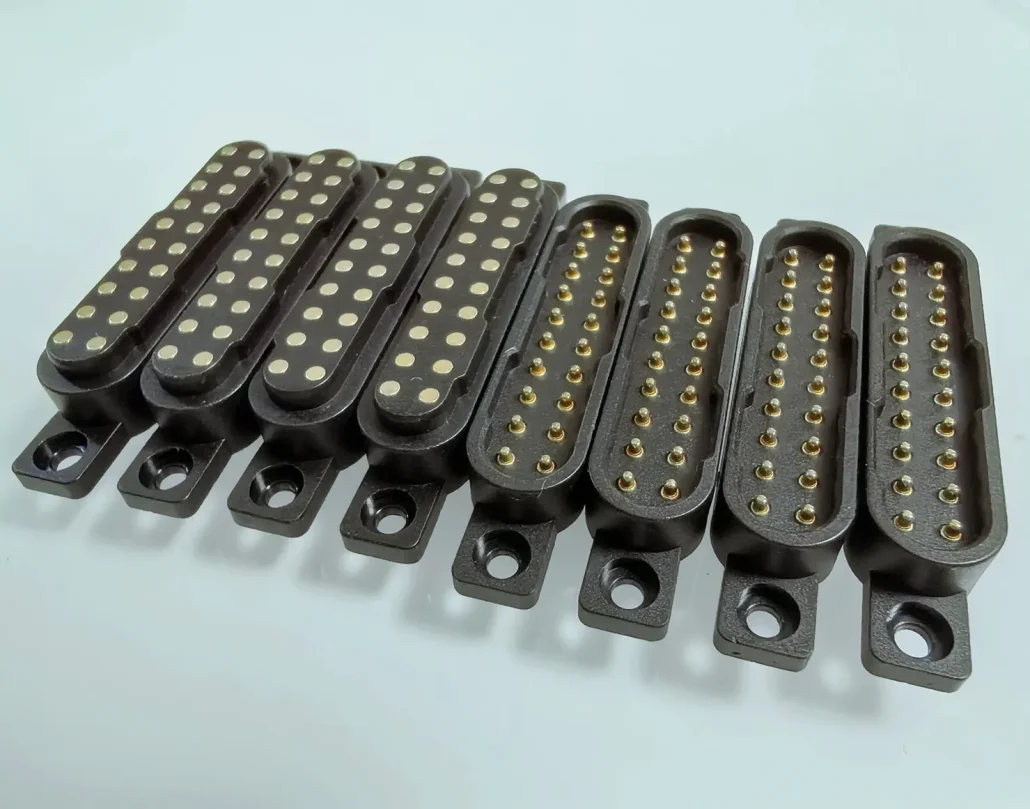

Wearables and Compact Electronics:
More and more clients require the custom pogo pin connector in limited PCB area and enclosure height. For example, they ask for pitch of 0.20mm only, 0.30mm stroke, 5gf force and working height of 0.90mm only.
Johoty’s custom layout allows our connectors to follow client’s product architecture. We won’t consume space around a standard rectangular connector.

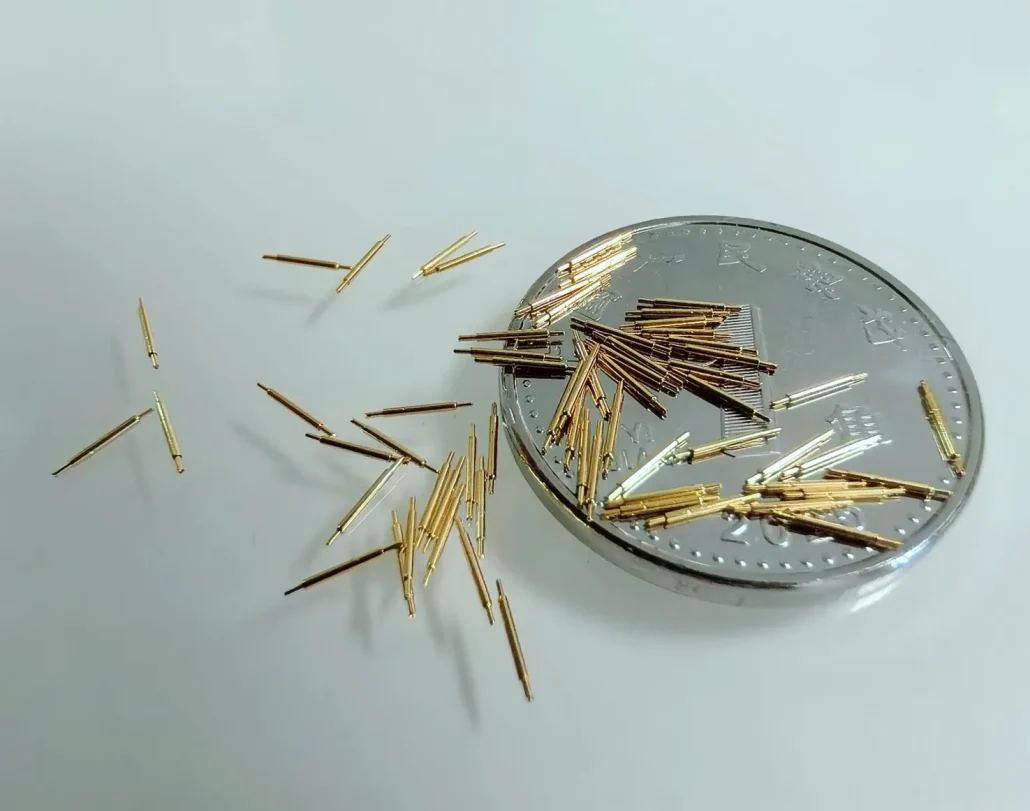

Test, Programming and Service Interfaces:
Johoty can customize perfect spring loaded pins in a pogo pin connector for temporary electrical access or consistent connections. Our clients don’t need to add a conventional plug to the finished product.
Many clients get the optimized contact layout, force and target geometry for the required service or programming procedure. With Johoty’s professional custom capability, our clients can solve various challenges in test devices.

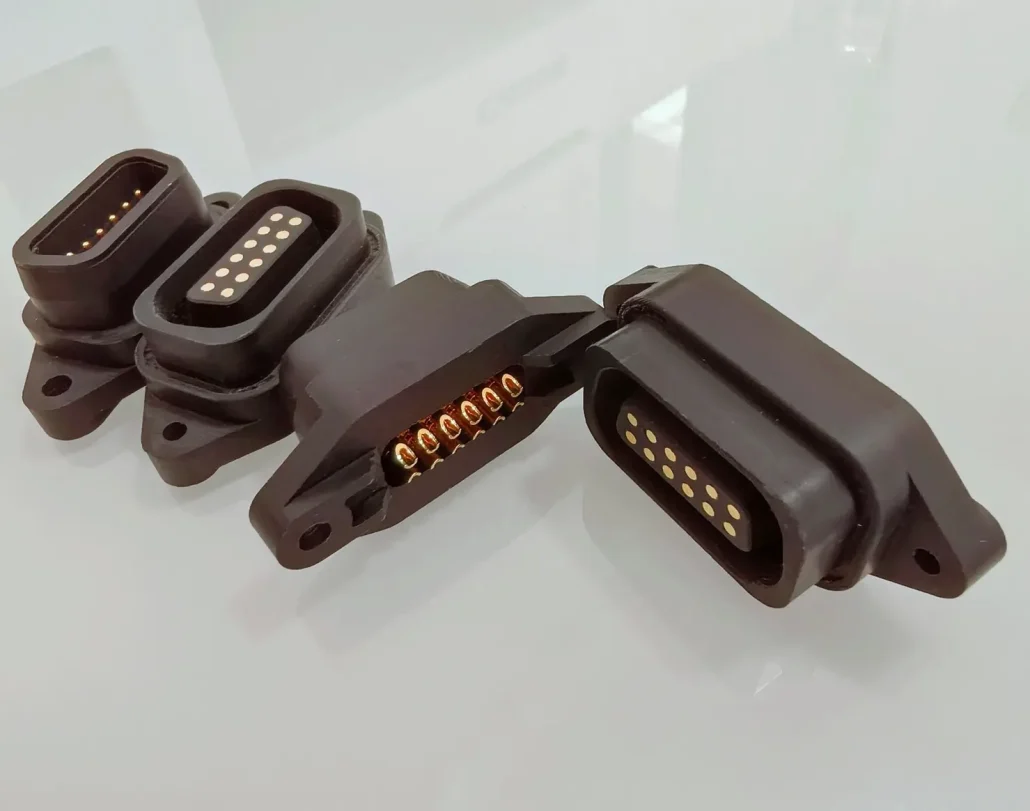

Rugged and Outdoor Equipment:
Many clients want to keep the connection stability of their devices exposed to dust, moisture, vibration or repeated field handling. So, Johoty need to design the custom pogo pin connector together with alignment, retention and sealing IP67 or IP68. These custom pogo pin connectors include IP67 magnetic pogo pin connector, high current IP67 custom pogo pin connector, etc.
Our clients can verify environmental protection of IP67 or IP68 waterproof on the final interface under defined test conditions.

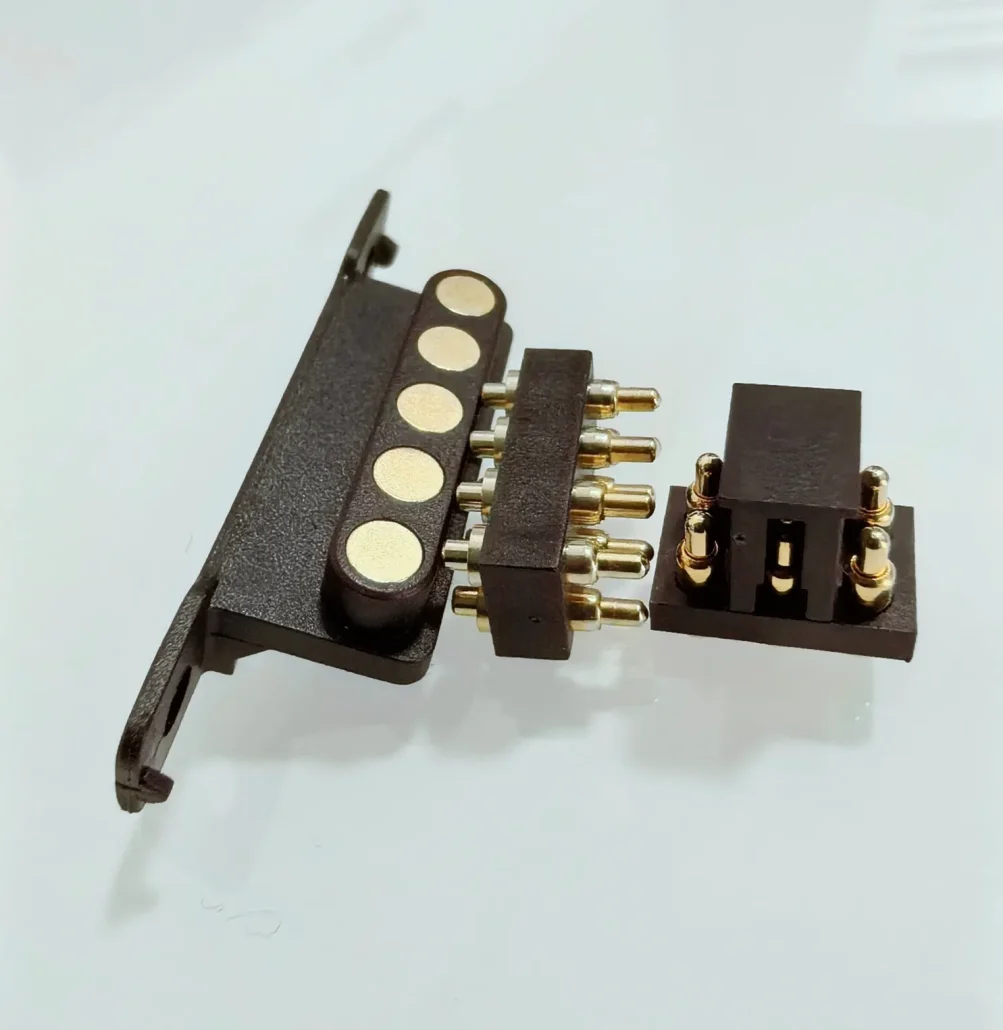

Custom Pogo Pin Connector From Geometry to Repeatable Production
Johoty won’t consider a custom pogo pin connector successful when the prototype works. We must repeatedly reproduce the dimensions, spring, electrical performance, and assembly that can validate design success.
Therefore, Johoty always identifies critical-to-function characteristics during the engineering phase and carries them into our quality inspection. We focus on pin position, exposed height, working stroke, and spring force. During our design, we also guarantee coplanarity, housing dimensions, plating, contact resistance, and mechanical alignment.
Quality: Johoty offers valid quality certifications and COC after verification.
Material: Johoty always shows RoHs/REACH/UL, plating, and approved supplier controls.

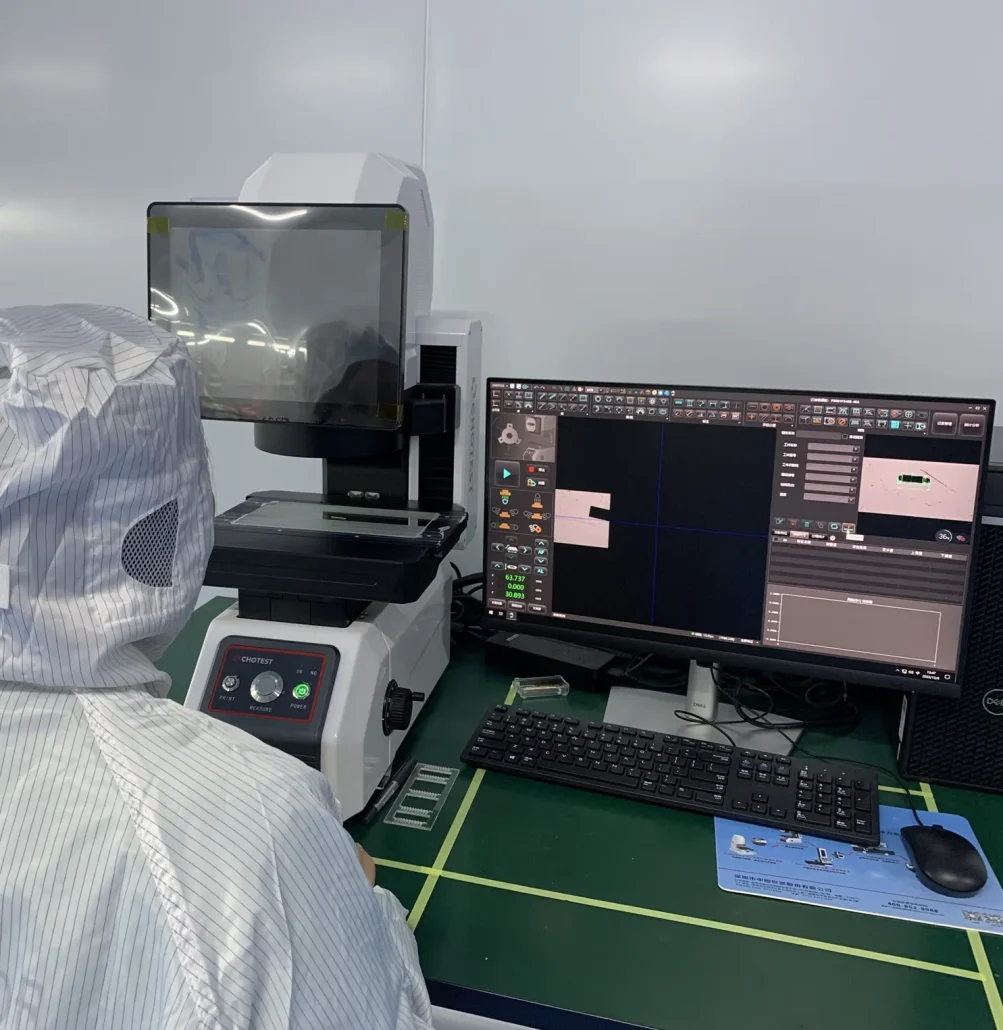

Dimensions: Johoty can offer actual inspection and equipment for critical dimensions of custom pogo pin connector.
Electrical Testing: We can send clients the real test method for resistance, insulation and dielectric verification.
Reliability: We can show life cycles, temperature rise, vibration or environmental test of custom pogo pin connector.
Traceability: Drawing revision, material lot, process lot and inspection records are clearly associated with production orders.
Production: We can show real photographs of Johoty tooling, connector assembly, inspection and testing.
FAQ of Custom Pogo Pin Connector
What is a custom pogo pin connector?
A custom pogo pin connector is a spring-loaded electrical connector. Johoty can customize for you about the expected contact layout, pitch, and stroke. If you want super low force of 5gf only, it is achieved too, including strong spring force too. You can get specific working height, housing, mounting method for your project.
Johoty always flexibly design the custom pogo pin connector around the available PCB space, enclosure geometry, and mating direction. At the same time, perfect electrical functions and environmental protection are achieved too.
What information does Johoty need to design a custom pogo pin connector?
In fact, a complete drawing isn’t required for the initial engineering discussion. You can prepare a sketch, PCB layout or 3D model, Johoty can establish the key constraints based on them.
The most useful starting information includes available space, pin count, and pin functions. In your project, you surely know current and voltage, PCB or enclosure drawings, and mating direction. Johoty can also help client optimize the mounting method, expected tolerance, operating environment, and mating cycles.
Can Johoty customize pin count, pitch, stroke and spring force?
Yes, sure. Johoty is sure that we can customize and optimize these perfect parameters as part of custom pogo pin connector.
Johoty doesn’t select these mechanical dimensions independently. Because, Johoty knows that pitch influences package density and electrical spacing. Working stroke and spring force influence total mating force, contact stability, tolerance absorption, and mechanical life. So, Johoty always defines them together with contact resistance, continuous current, and vibration.
Can a custom pogo pin connector carry both power and signals?
Yes, it can. Johoty can flexibly incorporate power, ground, charging, control and defined signals into one custom pogo pin connector. Sure, we need to get the permit on the electrical and mechanical requirements. You can also get different contact sequence for power, GND, detect, and control, we can meet your target.
We can consider different contact positions or geometries for you. This can meet your different current, sequencing or mechanical performance for individual functions.
How does Johoty design a high current pogo pin connector?
Johoty always design high-current pogo pin connector based on complete current path for continuous 10A, 20A, up to 50A, 60A. For high current pogo pin connector, we need to emphasize the temperature rise.
Johoty believe the temperature rise is critical for a custom high current pogo pin connector. We accurately design contact diameter and contact resistance based on conductive material, for example, BeCu or brass. We must accurately define spring materials and working compression, number of parallel pogo pins, PCB connection and duty cycles.
For the final current rating, we need to measure it by defined electrical and thermal test conditions.

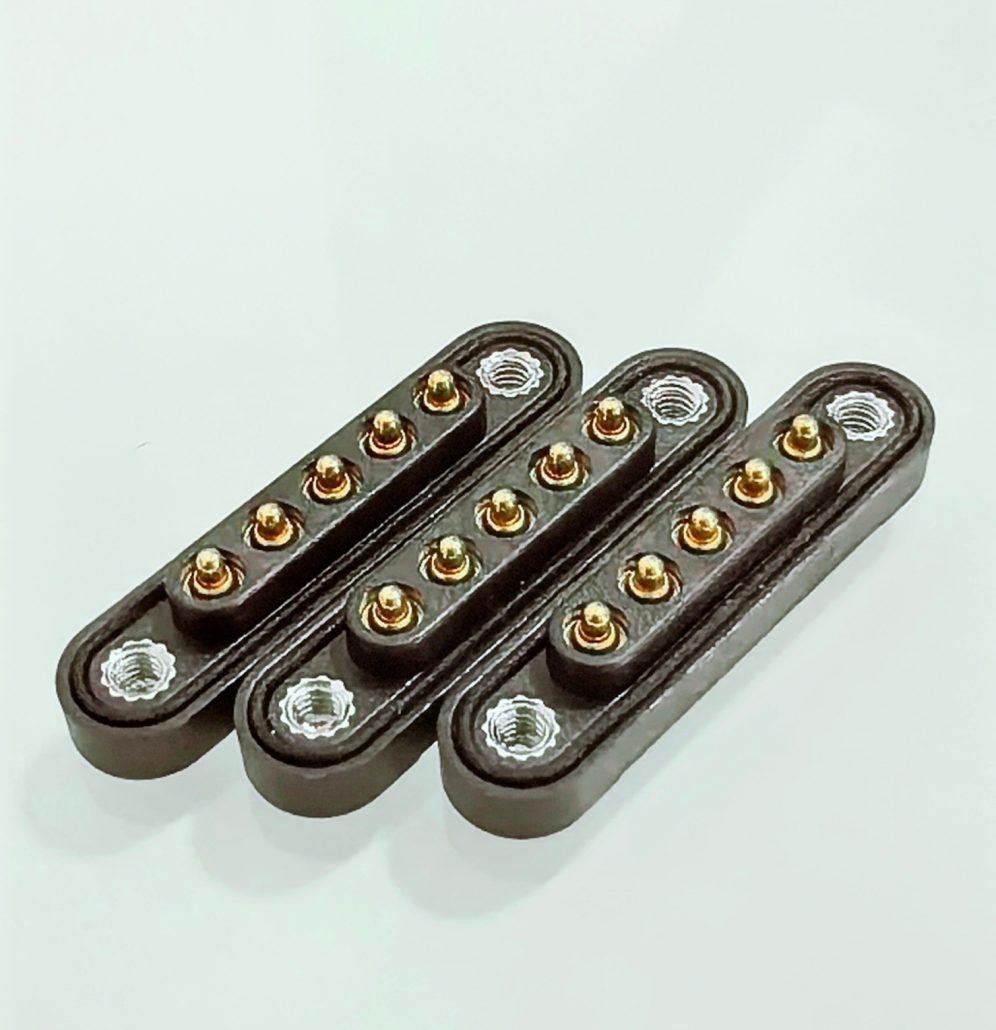

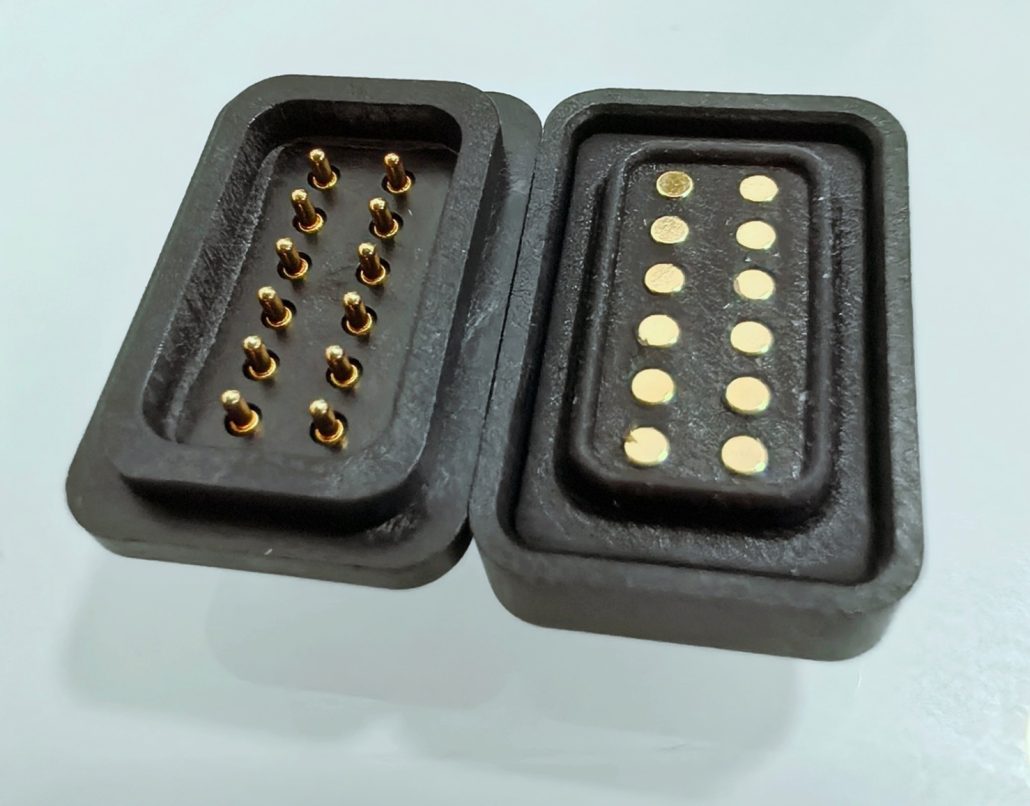

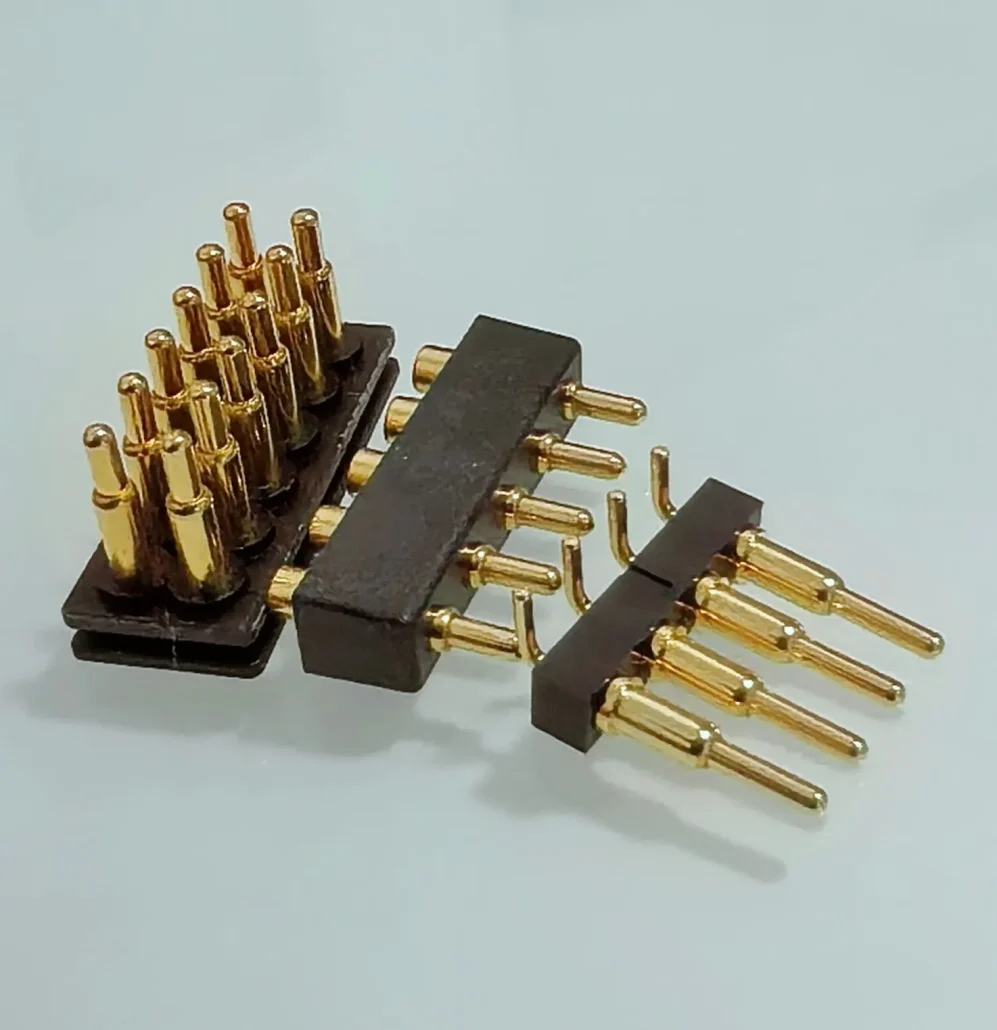

Can Johoty develop an IP67 or IP68 pogo pin connector?
Yes, we can, it is our strength. Johoty can design an environmentally sealed pogo pin interface for the required protection from water or dust. We design IP67/IP68 based on 3 layers of protections, including injection molding, barrel flanges, O-ring between connector and device.
Our clients can get IP67 or IP68 pogo pin connector with complete interface. Including connector housing, gasket or sealing structure, enclosure tolerances, assembly and mating condition. Also, clients can validate the requested protection level under water or seawater.
Which mounting methods are available?
Johoty can offer the custom pogo pin connector with SMT/SMD, through-hole, right-angle, soldered, wire-terminated or application-specific mounting. That is, our clients can always get the expected tail pin shape and sizes to match actual mounting in devices.
We can design the appropriate termination based on PCB architecture and assembly process. Each custom pogo pin connector has perfect mounting to match current load, available space and mechanical loading.
Can Johot’s custom pogo pin connector support blind mating?
Yes, it can. Johoty can guarantee the compliance of our spring loaded connector on matching. But we should not expect the pogo pins in a custom pogo pin connector to correct unlimited misalignment by themselves. That is, Johoty can ensure our custom pogo pin connector stable connection in the working stroke of pogo pins.
We always combine the robust blind-mate with mechanical guidance, adequate target geometry and controlled tolerance. Our clients can get an accurate alignment based on radial tolerance and axial stroke of our custom pogo pin connector.
Can Johoty integrate magnets into a custom pogo pin connector?
Yes, we can. Johoty can integrate S-pole and Z-pole magnets into a custom pogo pin connector. The magnetic assistance is appropriate for IP67 or IP68 waterproof, high vibration, EMI shielding, and high speed/frequency.
Johoty always designs magnet position, polarity, attraction force together with custom pogo pin connector on geometry and working stroke. We can guide and retain the contact interface without creating excessive impact or unintended mechanical loading.
How many mating cycles can a custom pogo pin connector achieve?
Standard life cycles are 10,000 times, Johoty can design 50,000, 100,000, 200,000, and up to 500,000 life cycles for clients. In fact, mating life is design-dependent and based on clients’ finalized mechanical dimensions, actual application, and price budget.
Johoty can provide with an appropriate life cycles based on spring geometry, working stroke, and contact force. Sure, we also consider the plating, target surface, contamination, side loading and environmental conditions together in mind.
Can Johoty manufacture prototypes before production?
Yes, we can. Johoty strongly recommend the prototype validation for custom pogo pin connector. Prototype samples allow fit, compression, alignment, electrical performance and device-level integration. With prototype samples, our clients can evaluate the custom pogo pin connector before the production design is frozen.
During the stage of prototype samples, Johoty can fast change the custom pogo pin connector with less expensive. So, we hope clients to share us suggestions and concerns timely but not after tooling and production processes are finalized.
How should I request a quote for a custom pogo pin connector?
For Johoty, more useful information, more helpful to design a custom pogo pin connector. Your useful files include STEP models or CAD drawing, enclosure drawings, sketches or an existing connector sample.
Your requirements include the required pin functions, current and voltage, and available space. It’s important for Johoty to konw mating environment, expected cycle life, prototype quantity and estimated production volume too.
Johoty can then review the interface requirements and identify the information needed for the next engineering step.
It’s time for your custom pogo pin connector now
Bring Us the Connection Challenges:
May, you don’t know the final pogo pin diameter, spring force, or plating before contacting Johoty. But you can ask us to start the custom pogo pin connector for your project now!
Tell Johoty what needs to connect, how much space is available, what the interface must carry. How users or machines will mate it, what environment it must survive, and how long it is expected to last.
With your clear requirements, Johoty can evaluate the electrical, mechanical and manufacturing requirements. And we can develop a custom pogo pin connector for your evaluation.
It’s time to share your drawing, STEP model, or PCB layout, required pin functions, current, and voltage. If you want an available connector housing or mating and alignment conditions, Johoty can fully support you. You can also meet environmental requirements, expected mating cycles, and prototype and production quantities.
