Why did waterproof magnetic connector fail on site ultimately?
Insertion and removal can‘t achieve precise alignment every time:
Workers are easily nervous when wearing gloves and performing maintenance in small and poorly lit equipment spaces. A traditional connector is prone to misalignment, oblique insertion, and forced insertion. The result is bent pins, worn terminals, and decreased contact pressure. Mild cases may result in occasional signal interruptions, while severe cases may cause the entire machine to shut down.
Waterproof magnetic connector can always adapt to such real-life situations. Through magnetic automatic guidance, the connection is more accurate, faster, and less dependent on operator experience.
Water doesn‘t only come from direct inflow:
What outdoor equipment, industrial sensors, and charging interfaces really need is not to look waterproof. Especially for ship equipment and medical cleaning, waterproof magnetic connector is sealed and stable for a long time.
Many connectors have passed the short-term waterproof test. But it often cannot withstand condensation, salt spray, long-term humidity, cleaning solution, and temperature difference circulation. After the sealing ring ages, water vapor will slowly enter the contact area. Resulting in signal attenuation, increased contact resistance, and metal corrosion. Finally, it becomes an intermittent fault that is difficult to locate.
Size issue in high-speed data signals:
The low-speed power connection may only be worried about poor contact. But high-speed signals, communication interfaces, sensor data, or smart device control are completely different. The results of encountering slight contact fluctuations, insufficient shielding, and structural gap changes are not the same. The latter can cause data errors, increased interference, and system failures. Engineers are concerned about signal integrity when waterproofing, magnetic attraction, frequent plugging, and high-frequency data coexist.
Therefore, Johoty will consider waterproof structure, terminal layout, shielding design, and contact stability simultaneously. We provide high-frequency signals for customers through a waterproof magnetic connector.
Extreme temperatures will slowly tear apart structural weaknesses:
Plastic, metal, sealing rings, and glue have different coefficients of thermal expansion, which can generate structural stress during high and low temperature cycling. Problems may not be apparent in short term, but long-term use may lead to seal failure and contact failure. Including changes in sealing compression, deformation of the housing, and decrease in terminal contact pressure,
The waterproof magnetic connector suitable for engineering projects should not only consider a single waterproof level. Johoty often suggests that customers consider whether it can maintain consistent performance over the long term in temperature changes, vibrations, and moisture.
Vibration will continuously damage the stability of the connection:
Traditional mechanical locking structures may appear sturdy, but continuous vibration can cause the locking components to loosen and the contact points to experience micro motion wear. Electric motors, robots, and vehicles are prone to momentary disconnections. Drones, engineering equipment, and mobile terminals may eventually experience data loss or device alarms. The most troublesome aspect of many on-site malfunctions is that they are not completely broken, but occasionally break.
If the structural design of the waterproof magnetic connector is reasonable, it can reduce the hidden shutdown risk under vibration. Johoty achieves connection stability through stable adsorption force, reliable contact pressure, and fast self-resetting connection.

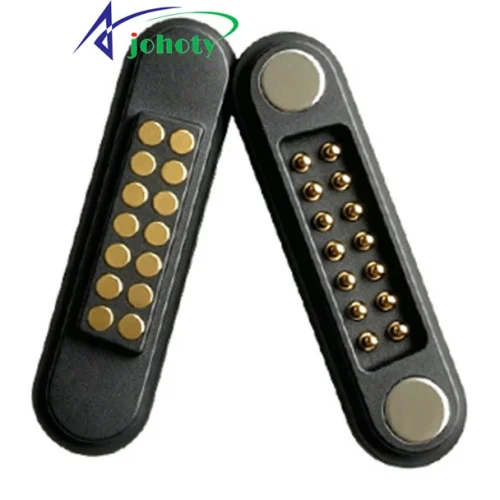

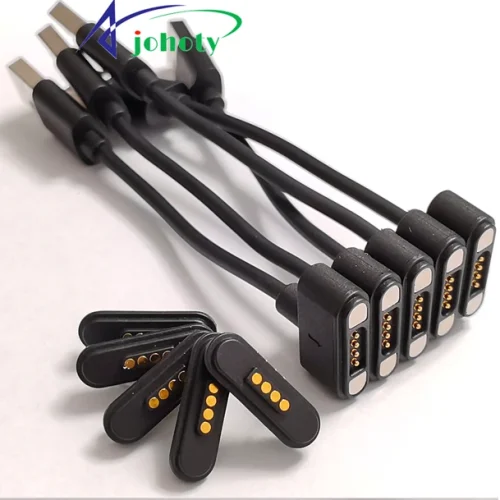

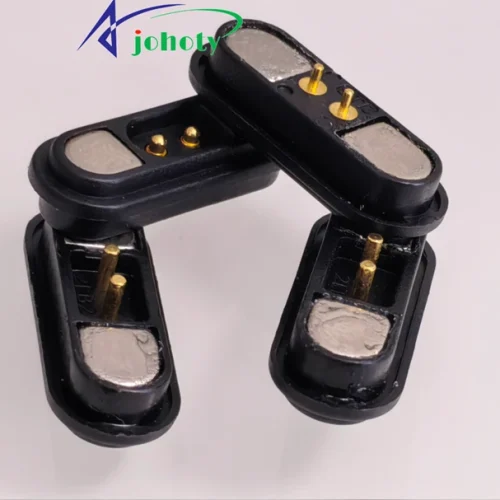

Catalog of Waterproof Magnetic Connector
| Items | Specs |
|---|---|
| Name | Waterproof magnetic connector. |
| IP Rating | IP65, IP67, IP68, custom. |
| PIN Numbers | 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 100pin, Multi Pin Custom. |
| Rated Current | 1A, 2A, 3A, 5A, 10A, 50A, design according to requirements. |
| Rated Voltage | 5V, 12V, 24V, 48V, 550V, DC/AC, custom. |
| Connection Methods | Magnetic suction with N52 magnets with S-pole and Z-pole, spring loaded pin, floding contact, flat contact. |
| Installation Methods | Panel installation, PCB installation, wire end injection molding, customizable |
| Materials | Copper alloy, stainless steel, SUS631, PBT, PA, PC, silicone seal. |
| Finishing | Gold plating, nickel plating, platinum plating, palladium plating, rhodium ruthenium plating, and anti-corrosion treatment. |
| Materials | PVC, TPE, TPU, silicone wire. |
| Working Temperature | -50°C to 125°C, custom. |
| Applications | Outdoor equipment, medical equipment, industrial terminals, smart wearables, and charging devices |
Self-alignment blind matching of Waterproof Magnetic Connector
In damp, vibrating, and confined spaces of outdoor equipment, traditional connectors need to prevent angle deviation and unstable insertion force. Once an error occurs, it is easy to encounter difficulties in alignment, incorrect insertion direction, and worn pins. Poor contact, waterproof failure, and low maintenance efficiency may also occur.
Johoty uses a magnetic self-aligning blind fitting structure to design a waterproof magnetic connector. We achieve automatic adsorption, positioning, and bonding through the built-in N52 magnet. When the interface approaches, the magnetic force will actively guide the connector to complete alignment. You don’t need precise aiming or rely on complex movements.
Our core design includes:
N52 high magnetic flux magnet: strong adsorption force, fast alignment speed, and smoother connection.
Magnetic pole direction optimization: Avoid reverse insertion and improve connection stability.
Floating contact structure: allows for slight angular deviation and is suitable for blind insertion.
Waterproof sealing contact surface: After connection, a stable fit is formed to reduce the risk of water ingress.
Wear resistant contact design: reduces mechanical wear caused by hard insertion and extraction.
Multi-level protection structure of Waterproof Magnetic Connector
Many connectors fail not because of a single water ingress, but because of water vapor infiltration, mud residue, and high-pressure flushing that breaks the seal. Or dust entering the contact area, long-term humidity leading to oxidation. Johoty waterproof magnetic connector can solve external waterproofing, contact area waterproofing, and internal structure waterproofing.
Housing sealing:
The housing adopts an injection molding tight fitting structure to reduce the entry of water, dust, and mud from the edges of the connector. Long term use in outdoor equipment, cleaning equipment, and humid environments can block external impact water flow and dust.
Sealing of contact area:
After magnetic connection, the contact surface is stably adhered, and the sealing area is subjected to more uniform force. To avoid sealing failure of traditional plug-in connectors due to improper insertion and angle deviation. Realize connections without looseness, deviation, or gaps.
Internal waterproof structure:
Even if there is external moisture, condensation, or short-term water immersion, the interior can still prevent moisture from entering the conductive area. Partition and isolate key areas to reduce the continued infiltration of water vapor along contacts, cables, and gaps. Johoty designes the waterproof magnetic connector not only to protect against the outside, but also to protect against the inside.
Life cycles 10K~500K times of Waterproof Magnetic Connector
It’s not about extending the lifespan through tight insertion, but about reducing mechanical friction through automatic alignment and magnetic attraction. Traditional mechanical interfaces will wear out metal terminals as increasing the connection times. At this point, the contact resistance increases and the waterproof structure ages due to unstable charging/signal. Johoty waterproof magnetic connector can automatically align with magnetic attraction, ensuring a smooth and snug contact surface. This design can reduce hard plugging and unplugging, lower terminal wear, and extend the lifespan to 10,000-500,000 times
Johoty clients are very concerned and request:
Low wear: Magnetic connection reduces lateral friction during insertion and removal, avoiding repeated scratching of terminals.
High stability contact: The spring needle continuously adheres to the contact point and maintains stable conductivity even after long-term use.
Waterproof structure is not easily damaged: reduces violent insertion and extraction, and lowers fatigue wear on sealing rings, adhesive positions, and shell edges.
Suitable for high-frequency devices: Suitable for devices that are charged multiple times a day, frequently disassembled, and used in outdoor humid environments.
Customizable according to lifespan level: Johoty can customize lifespan plans for 10,000, 50,000, 100,000, 500,000 cycles based on equipment usage frequency.
Gold-plated Reliability for Waterproof Magnetic Connector
Hidden dangers of ordinary contacts:
Waterproof is achieved, but conductivity is unstable. Ordinary contacts are prone to oxidation under moisture, salt spray, sweat, and cleaning fluids. The surface is prone to forming a pollution layer, leading to an increase in contact impedance.
Johoty is aware of such hidden dangers and will do our best to solve:
- The signal is occasionally interrupted.
- The current output is unstable.
- Charging generates heat.
- The more times you plug and unplug, the poorer the reliability.
- Waterproof connectors become short-term usable and long-term unstable.
Johoty gold-plated contact solutions:
Gold plating or composite coating is not easily oxidized. It can maintain a more stable contact state in humid, outdoor, and medical environments. Maintain stable current and signal transmission during repeated suction, humidity, and long-term operation. We can solve the long-term conductivity stability problem by using gold-plated pogo pins:
- Low contact resistance reduces heat generation.
- Antioxidant to prevent contact failure.
- Corrosion resistant, suitable for humid, seawater, and salt spray environments.
- Maintain stable conductivity even after insertion and removal.
- Long term use is not prone to current fluctuations.
- Reduce after-sales repair and downtime.
Designing 10Gbps of Waterproof Magnetic Connector
10Gbps high-speed is most afraid of unstable contact, discontinuous impedance, and signal attenuation after sealing. Johoty designs around high-speed signals in terms of structure, rather than simply adding waterproof rings to ordinary magnetic interfaces.
10Gbps designs:
- Johoty adopts a paired signal contact design. We can reduce crosstalk and make high-speed data more stable.
- Johoty can control the consistency of signal paths from wires, contacts, magnetic end faces to board end connections. Reduce the risk of reflection and packet loss.
- We can enhance anti-interference capability through grounding contacts, metal casings, or shielding structures. This is very useful in complex industrial and outdoor equipment.
- Johoty can partition and arrange power supply contacts and high-speed signal contacts to avoid high current interference with high-speed data.
- Johoty always designs the sealing structure and contact pressure. We can ensure stable contact under waterproof, dustproof, and frequent connections.
Supported high-speed transmission directions:
- Universal Serial Bus high-speed data: suitable for high-speed peripherals, camera equipment, detection equipment, and intelligent terminals.
- Ethernet data transmission: suitable for industrial control, outdoor communication equipment, intelligent hardware, and edge devices.
- Customized protocol transmission: Contact definitions can be customized according to the customer’s motherboard, chip solution, line sequence, and communication protocol.
EMI/EMC Security of Waterproof Magnetic Connector
Industrial, medical, and automation equipment require stable anti-interference. There is no false triggering, no data loss, and no abnormal power outage under waterproof conditions.
Anti-interference structure:
Johoty designs shielding chambers, terminal partitions, and stable contact surfaces based on magnetic positioning to prevent displacement. We try our best to reduce the fluctuation of contact resistance. It will also avoid signal instability caused by plugging, vibration, and moisture. Johoty requires the waterproof magnetic connector to maintain a stable connection in the presence of vibration, moisture, and electromagnetic noise.
Grounding optimization:
We aren’t skilled in simple housing grounding and always designs low impedance, short path, and continuous grounding channels. This can quickly release interference current and prevent interference from entering the core circuit. This optimization is very suitable for medical handheld devices, automated sensors, and robot end modules.
Multi-layer shielding:
We often use shell/terminal shielding, cable foil, and braided shielding to design waterproof magnetic connector. It can effectively block low-frequency and high-frequency interference. Reduces electromagnetic interference caused by motors/frequency converters, wireless modules, and pulse power supplies. You don’t need to worry about signal jitter, data loss, mis-operation/interruption under high noise.
Power/data isolation:
Johoty always uses physical spacing, structural partitioning, and grounding to effectively isolate power terminals from data terminals. This can greatly reduce the impact of power ripple/surge and electromagnetic coupling on data transmission. This has excellent data transmission effects in low-voltage signals, sensor data, and communication interfaces. There will be no signal interference in medical detection signals and automation control signals.
Applications for Waterproof Magnetic Connector

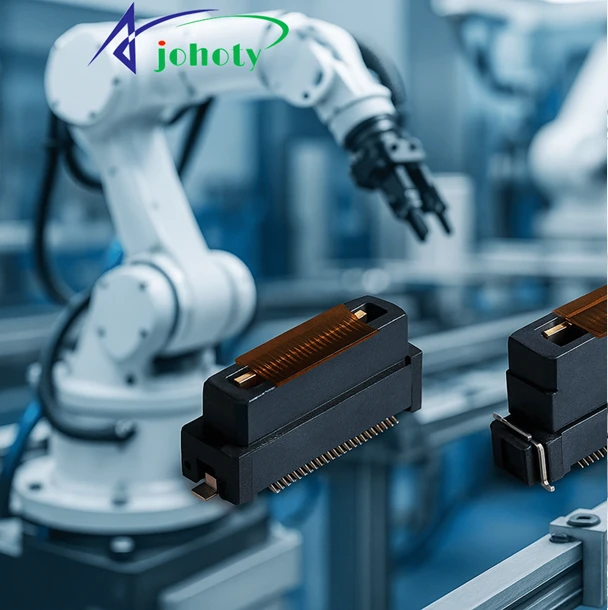

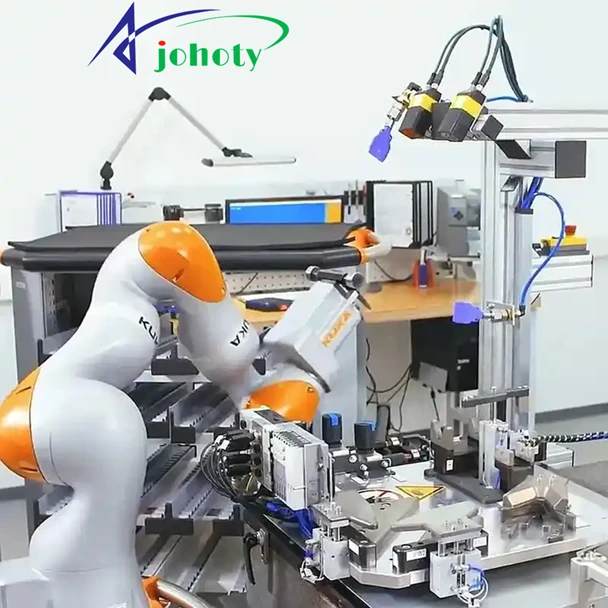

Industrial automation:
High vibration and high-frequency insertion and extraction are often required in assembly lines and robot assembly units. Waterproof magnetic connectors can maintain stability during high-speed motion and frequent connections. Magnetic adsorption for quick positioning, with a lifespan of 500,000 insertions and removals. Ensure that signals from PLC, sensors, and actuators are not lost. Johoty’s magnetic design can resist mechanical vibrations and ensure continuous operation and stability of the production line. Even under impact and strong vibration, automated equipment will not experience poor contact.
Medical equipment:
Fast connection and high reliability are extremely important for surgical instruments, electric diagnostic and treatment equipment, and portable detectors. Waterproof magnetic connector can achieve fast connection and disconnection in seconds, and is easy to operate. It can significantly reduce the time waste and errors caused by device interfaces in medical operations. The connection part adopts IP68 design, which can withstand the erosion of disinfectant and body fluids. And, it also ensures signal transmission stability and greatly reduces the risk of medical accidents.
Drone (UAV):
For battery modules, cameras, and flight control sensor interfaces in drones, customers often require lightweight and waterproof. The waterproof magnetic connector is small in size and light in weight, with almost no increase in flight load. Magnetic stability and IP67 waterproof, it can resist rain, dew, and moisture. During long-term flight, the power and signal are stable, and the waterproof magnetic connector supports various complex flight tasks.
Robot:
Flexible motion connections are required in the joint and modular component connections of industrial robots and service robots. Johoty can provide a water proof magnetic connector that is compatible with 360 ° free rotation and motion. It has balanced magnetic force, precise adsorption, and can withstand long-term continuous movement and high-frequency operation. Combined with IP67 waterproof, it can stably connect under lubricating oil or moisture without affecting operational accuracy.
Outdoor equipment:
Outdoor remote-control devices, detection instruments, and smart cameras often need to face rainwater, soil, and impact. The IP68 waterproof and dustproof Johoty waterproof magnetic connector can resist the intrusion of rainwater, soil, and dust. We can design N52 magnetic force to maintain reliable connections between modules when subjected to impact, vibration, or dropping. It can work 24/7 without interruption, helping customers reduce maintenance fees and equipment failure rates.

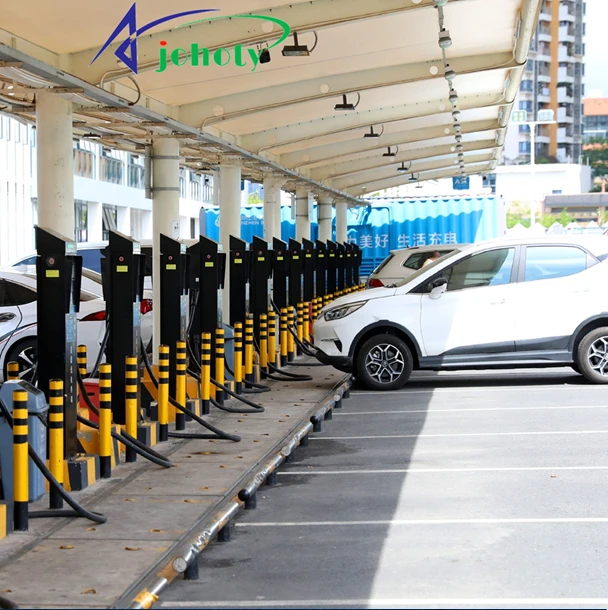

New energy:
High temperature and EMC are required in electric vehicle battery modules, charging interfaces, and solar energy storage systems. Waterproof magnetic connector can withstand up to 125℃, and the magnetic connection is stable and reliable. Johoty can design internal shielding to reduce EMC and ensure safe and stable transmission of high voltage and high current. At the same time, we can also achieve modular and rapid disassembly and assembly. In this way, it facilitates daily maintenance and upgrades for customers, and improves the overall energy system reliability.
FQA
Johoty insists on using injection molding and multi-layer flange to design waterproof magnetic connector. All interfaces meet IP67/IP68 protection standards. It can work stably under immersion/rain, humidity, or salt spray.
- Plunger and barrels with gold or composite plating can maintain low contact impedance and good corrosion resistance.
- Housing uses PA, LCP or stainless steel shell, which is impact resistant and resistant to -40℃~+85℃.
- After >1,000 plug and unplug tests and continuous water immersion tests, there was no signal loss or short circuit.
- Johoty can ensure high stability operation of every waterproof magnetic connector.
We always consider high current and signal stability when designing a Waterproof magnetic connector:
Each pogo pin can support 10A-50A current. It is suitable for industrial control, power tools, and outdoor equipment.
The signal end can support up to 10Gbps/min, accurately meeting the needs of sensors, communication equipment, etc.
We design magnetic positioning, which automatically aligns and ensures correct contact every time it is inserted or removed. Johoty waterproof magnetic connector can maintain zero contact jitter under vibration or movement.
Each pogo pin undergoes a dedicated contact force test, with moderate insertion and removal force, without loosening or damaging the waterproof magnetic connector.
Johoty can provide highly customizable waterproof magnetic connector:
Johoty can customize according to customer needs in terms of number of pogo pins, size, and shape. Our waterproof magnetic connector is compatible with existing industrial interfaces or dedicated interfaces.
You can choose from a variety of magnetic strength and waterproof sealing options, including silicone rings, O-rings, and multi-layer seals. Johoty can ensure that our waterproof magnetic connector is adaptable to different or special applications.
Johoty supports rapid prototyping of waterproof magnetic connectors and small batch production. We can shorten the research and development cycle to 1-5 days, ensuring complete consistency between mass production and samples.
We provide technical support to ensure the risk-free implementation of the waterproof magnetic connector solutions. Including plug-in force matching, current capacity verification, environmental testing reports, and so on.
