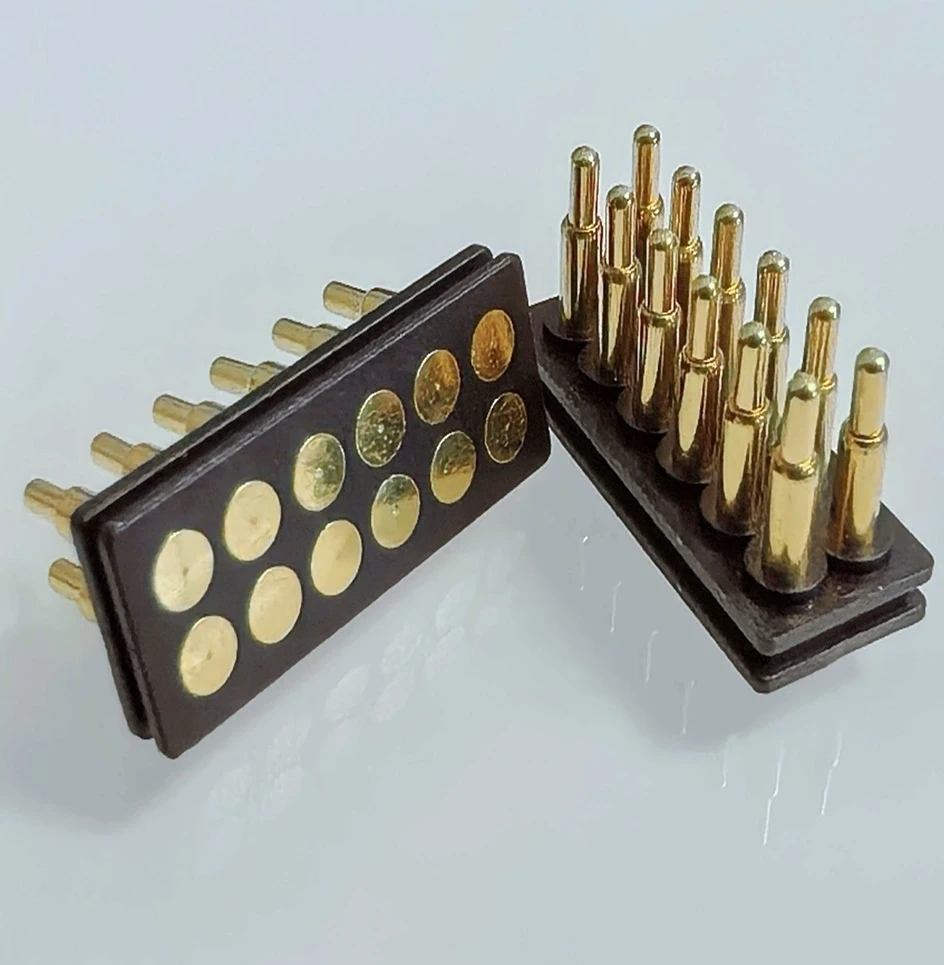

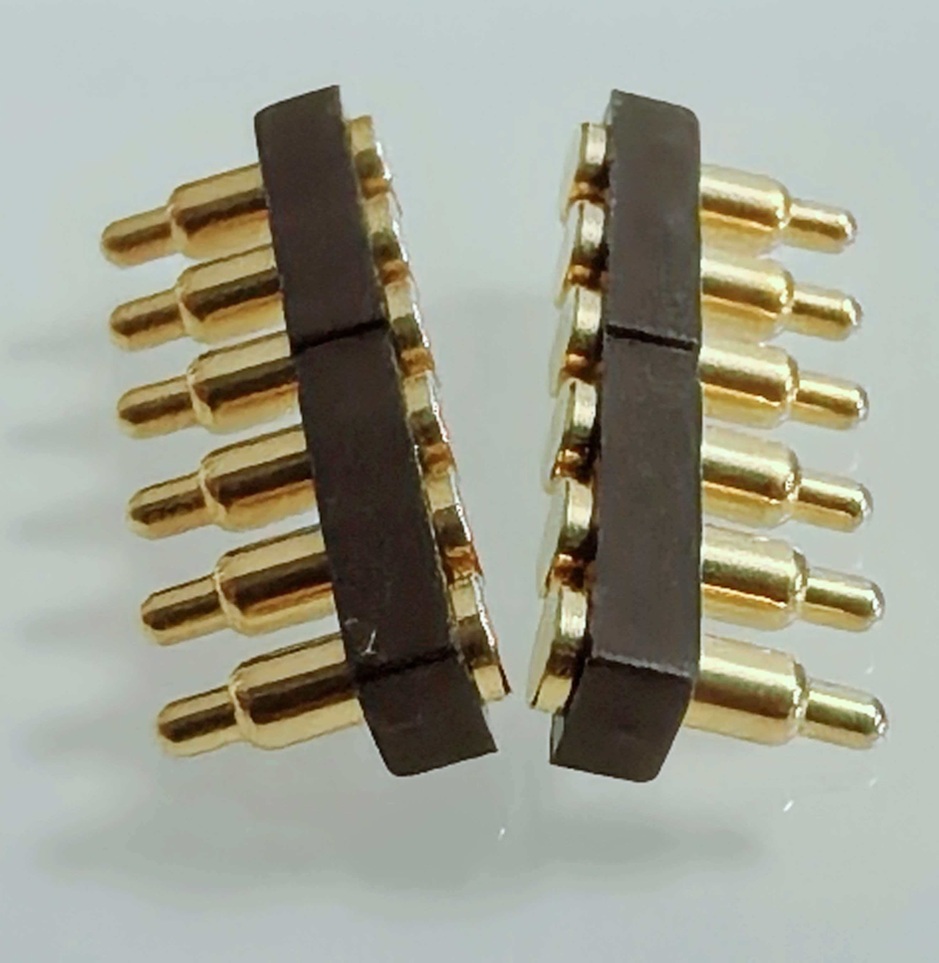

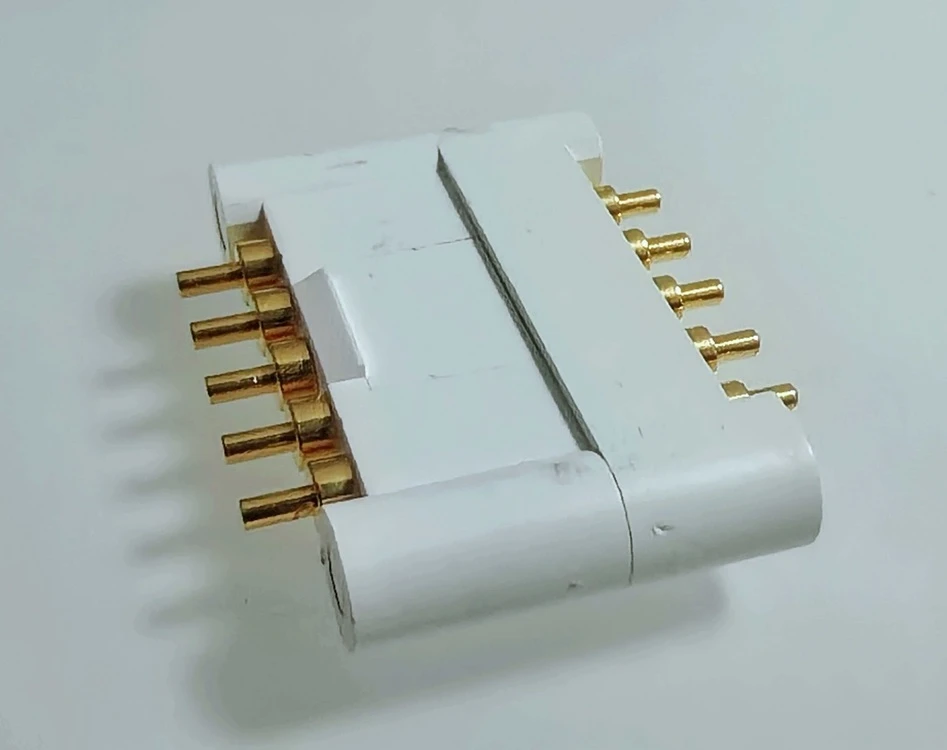

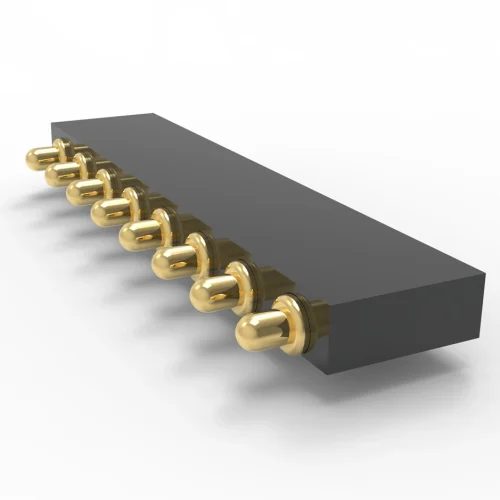

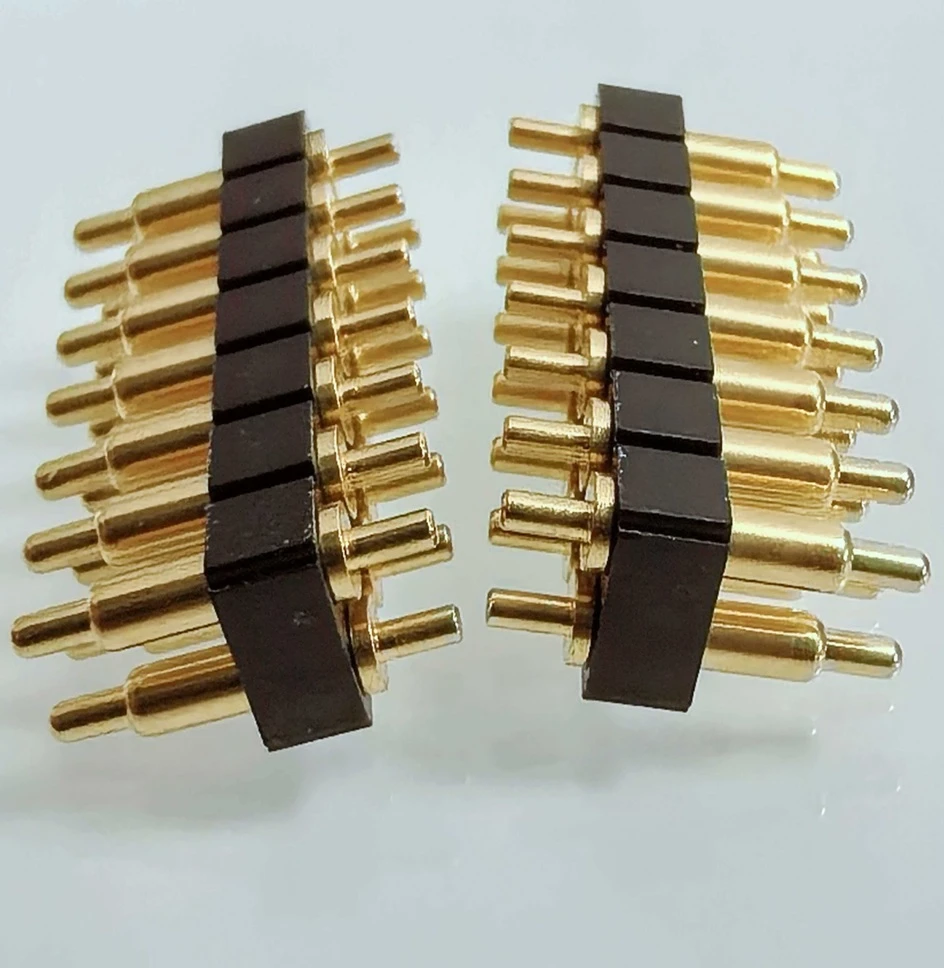

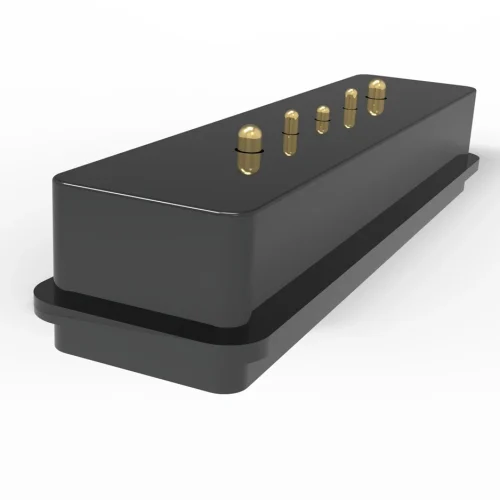

Hybrid Pogo Pin Connector (Power, Data, Signal, GND, Detection)

Stable Electrical Performance Through Optimized Pogo Pin Structure:

Johoty designs every hybrid pogo pin connector around contact force, stable contact resistance, and long-term mechanical durability.

We can optimize spring force, contact material, gold plating, pin arrangement, and mechanical tolerance. We need to ensure reliable electrical connection throughout repeated mating cycles.

Customized Power and Signal Combination for Different Projects:

Johoty can flexibly define the internal architecture according to combination requirements rather than adapting the design around a standard connector. We can support customized configurations for a hybrid pogo pin connector without the limit of a fixed pogo pin arrangement.

So, you will get dedicated high-current power contacts, grounding contacts, and control signal contacts. In the hybrid pogo pin connector, you can find high-frequency signal contacts, detection contacts, and customized mechanical layouts.

Solving Connection Problems Beyond Standard Connectors:

Many clients often face challenges, for example: limited installation space, high current, and sensitive communication signals. These clients often contact Johoty to customize ffective electromagnetic interference shielding, frequent mating cycles, and strict reliability in their devices.

Johoty focuses on solving these challenges through our application-specific hybrid pogo pin connector design.

Dedicated Detection During Controlling Intelligent Connection:

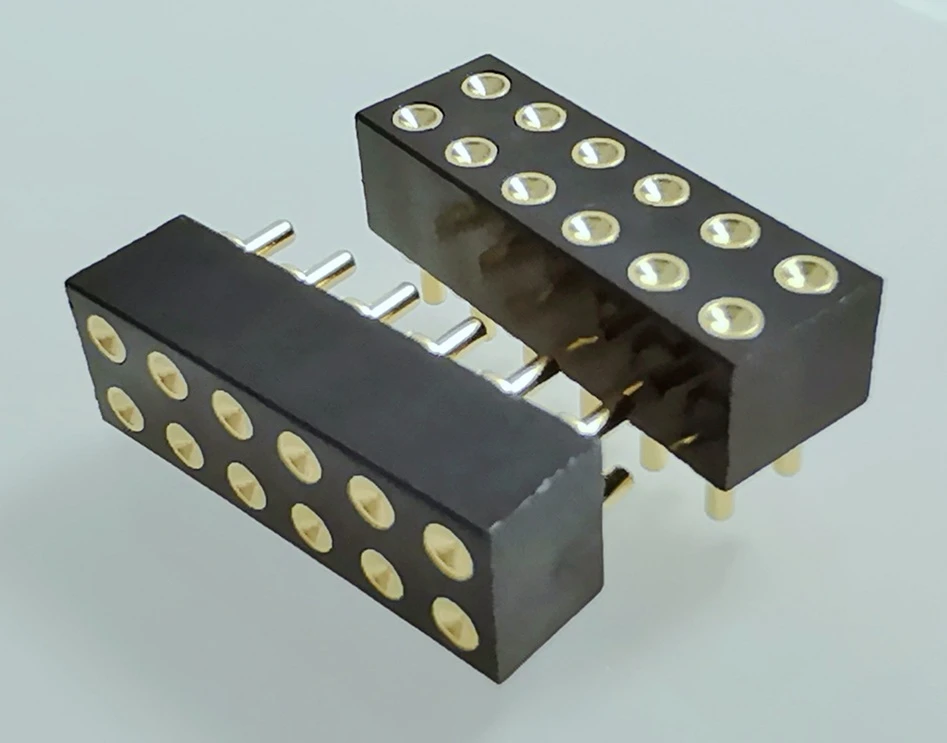

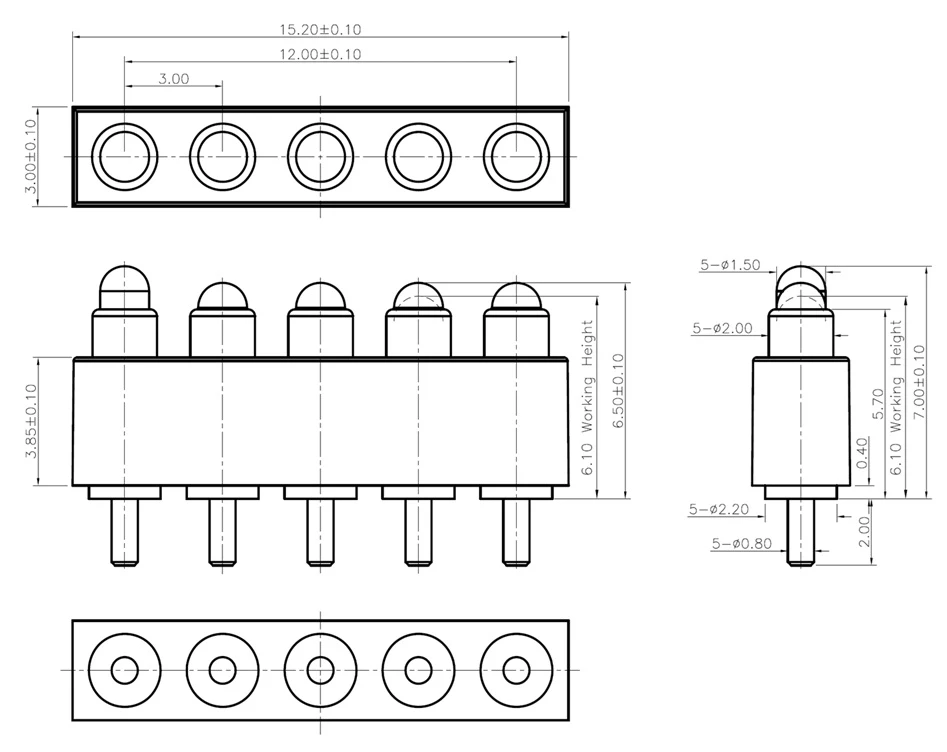

Many clients often ask us to accurately identify connector status before enabling power or data signal. Johoty’s hybrid pogo pin connector can incorporate dedicated detection pogo pins to support connection verification and device recognition. For example, we design 1 or 2 pogo pins with higher full stroke to identify the contact status in our hybrid pogo pin connector.

With this design, our clients can get charging authorization, system wake-up functions, and safety monitoring. Johoty can flexibly integrate detection functionality directly into our hybrid pogo pin connector like this. Then, our clients can simplify system structure and improve operational reliability.

Johoty can help our clients balance connector architectures by intelligently arranging power contacts and grounding contacts. We can also balance control signals, high-speed communication paths, and optional detection pins within our customized hybrid pogo pin connectors.

We perfectly design our hybrid pogo pin connectors based on different electrical planning, power transmission and signal communication. For high-current paths, we design low resistance, stable contact force, and optimized thermal management.

For sensitive signal channels, Johoty can control electrical parameters well, protect EMI interference, optimize routing, and reliable grounding.

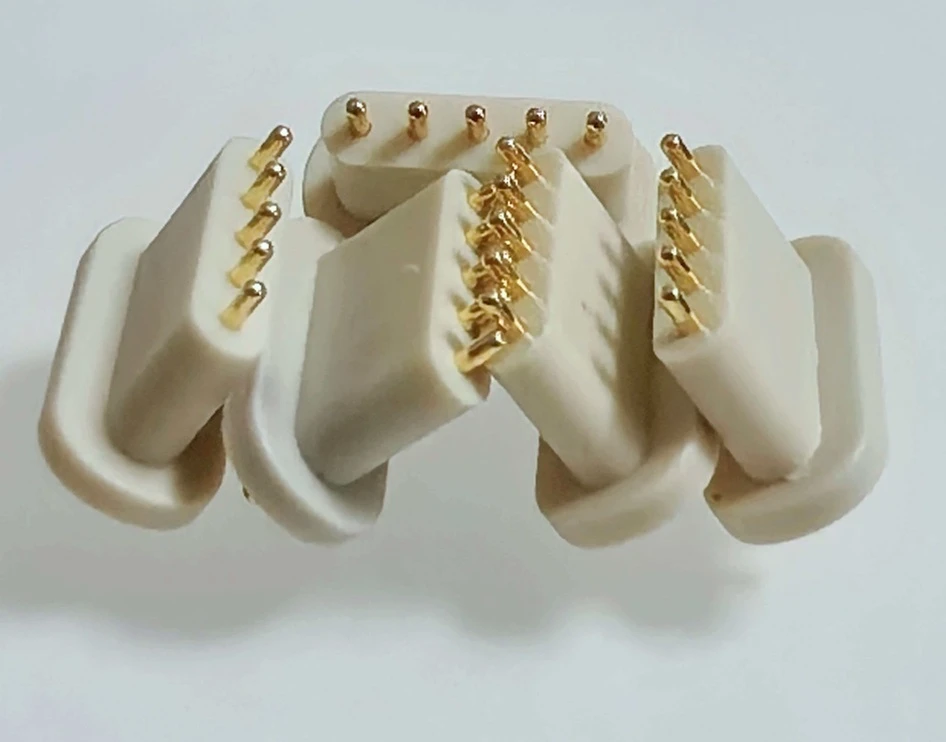

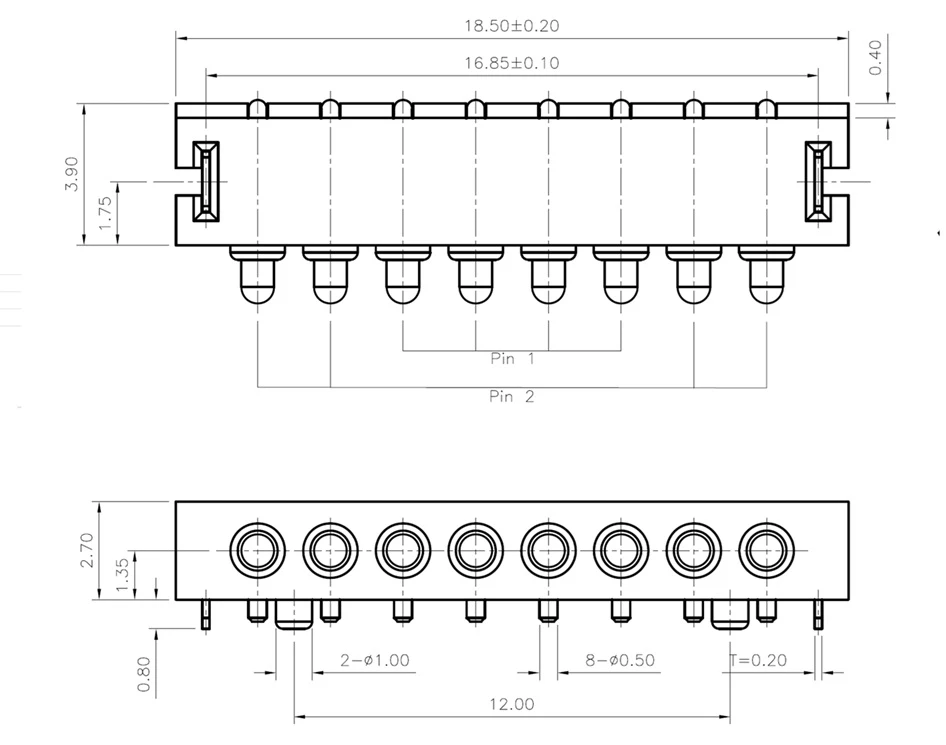

Flexible Pogo Pin Arrangement:

Johoty always customizes hybrid pogo pin connector flexibly instead of adapting their design to a fixed connector structure. We can configure a hybrid pogo pin connector with:
Dedicated Power Pogo Pins: Johoty can design stable energy delivery and optimized current flow.
Ground Contacts: Johoty can improve electrical stability and reduce noise.
Low-Speed Control Channels: We can customize for system communication, control functions, and device management.
High-Speed Signal Channels: Johoty can design for reliable data transmission performance.
Detection Contacts: Johoty can design for connection confirmation and intelligent system control.

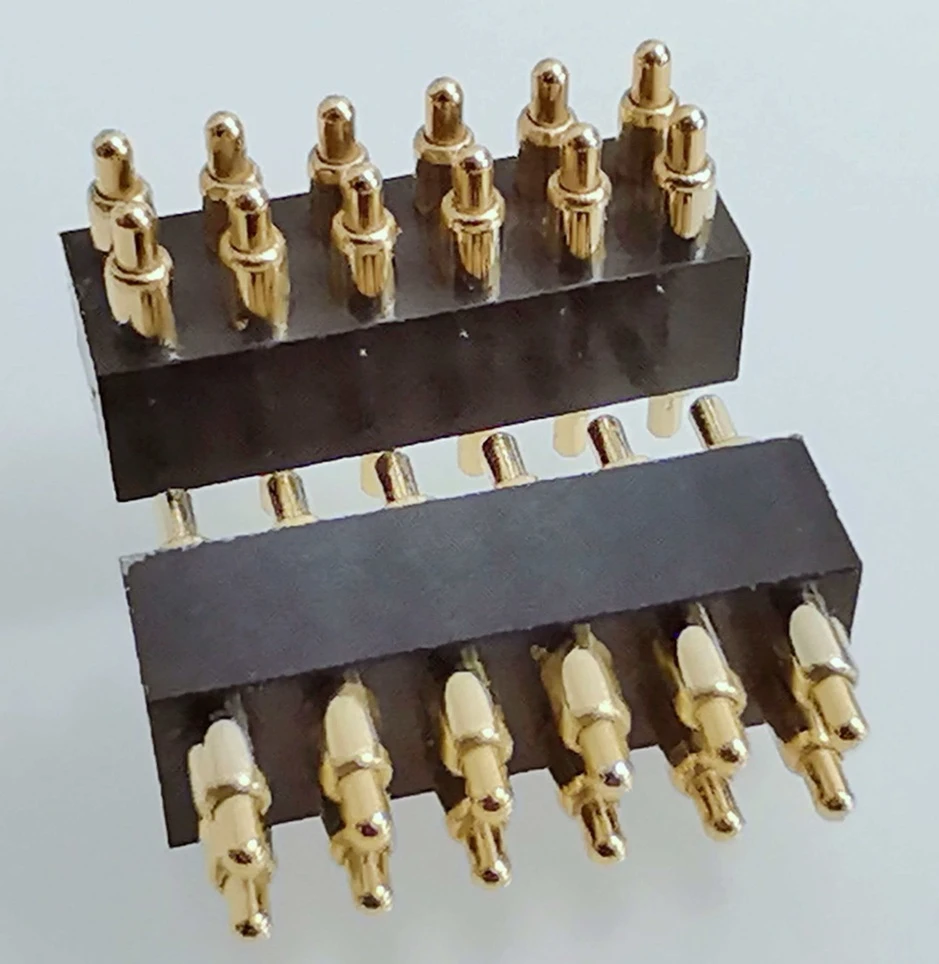

Supporting Multiple Signals Within a Hybrid Pogo Pin Connector

Johoty can customize hybrid pogo pin connectors for different signal communication, including: USB communication interfaces, UART control communication. We can support clients with perfect hybrid pogo pin connectors for I2C device communication, SPI data communication, HDMI-related high-speed signals. Our clients can achieve perfect connection of MIPI display and camera signal, ethernet communication, other high-frequency signals.

Johoty focuses on the complete electrical design, including signal pin arrangement, grounding strategy, and shielding structure. Our clients can integrate complex communication into reliable and compact connector by our optimizing impedance and mechanical layout.

Signal and Power Separation for Improved Performance

When we design power and sensitive signals within a hybrid pogo pin connector, we need to avoid improper arrangement. Because an improper pogo pin layout will lead to EMI, signal degradation, unstable communication, and unexpected system behavior.

To create connectors for delivering both reliable power and dependable communication, Johoty must optimize hybrid pogo pin connector layouts. We need to separation between high-current and sensitive signal paths and dedicated grounding positions. To minimize signal loss, crosstalk and signal performance downgrade, we always design perfect shielding and application-specific electrical characteristics.

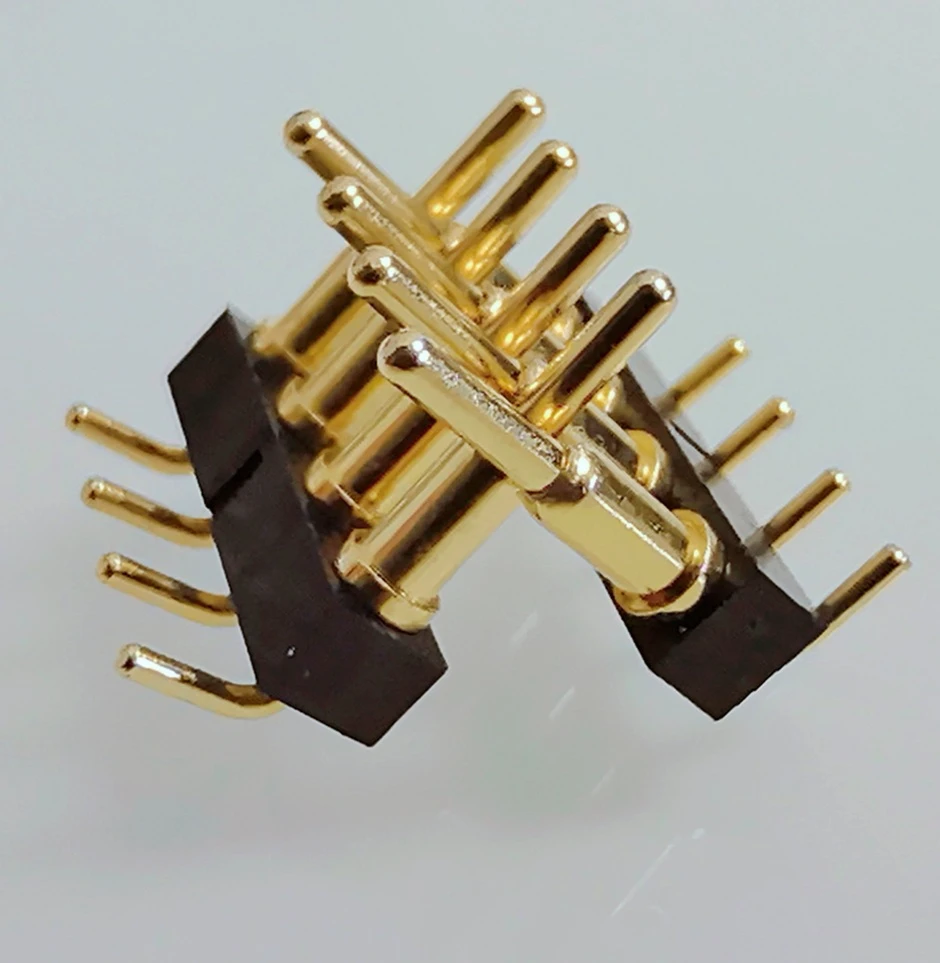

Industrial Automation：

With Johoty’s hybrid pogo pin connector, you can get power, communication, and detection for your removable control modules. You can also use it in your automated tooling, machine accessories, sensor units, operator terminals, and serviceable subassemblies.

Johoty’s spring-loaded interface can help you simplify your installation. Then, you can avoid inconvenient plug or exchange frequently.

Robotics and Autonomous Systems：

Many clients require unattended charging, data transfer, docking confirmation, alignment tolerance in robots, autonomous mobile platforms, drones, and intelligent equipment.

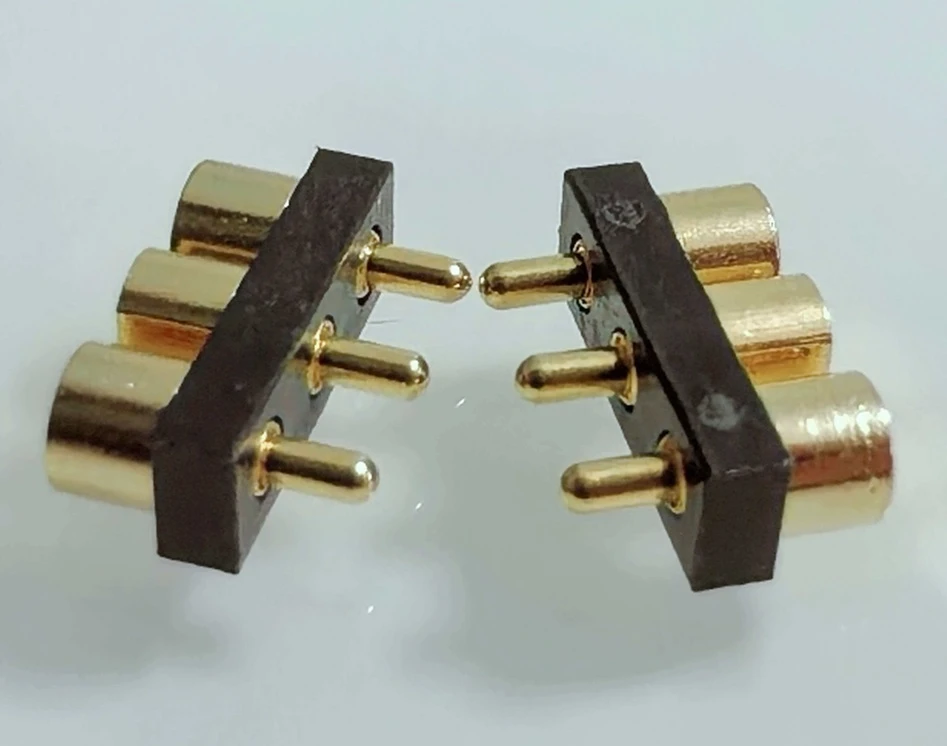

Johoty can customize robotic charging connector to flexibly integrate high-current power, ground-first sequencing. And, you can see detection contacts, communication pins, and mechanical guidance in our hybrid pogo pin connectors.

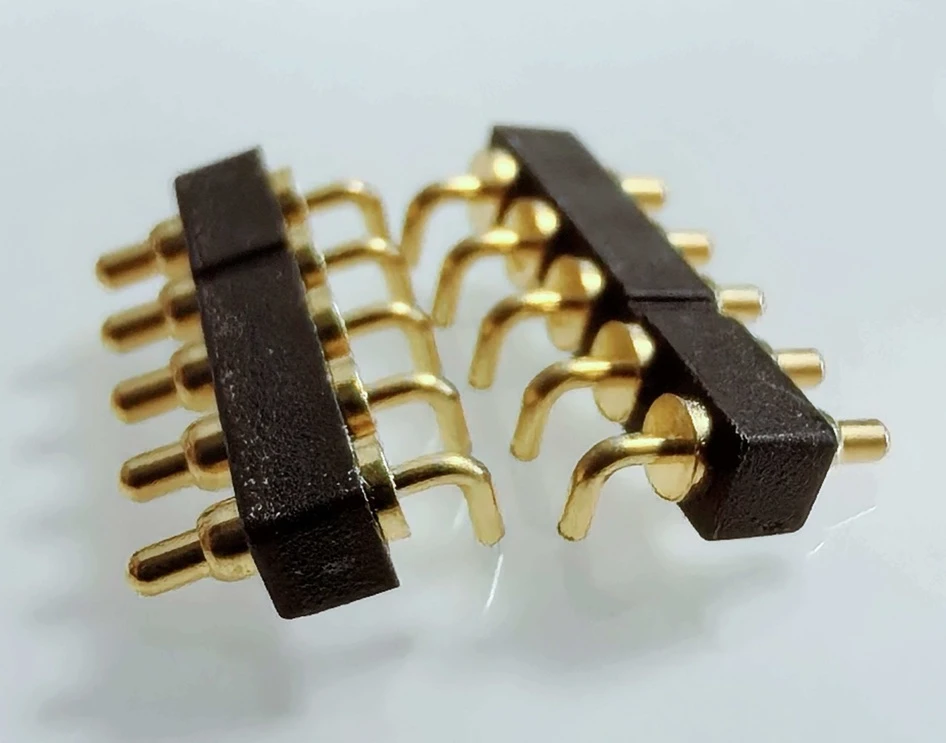

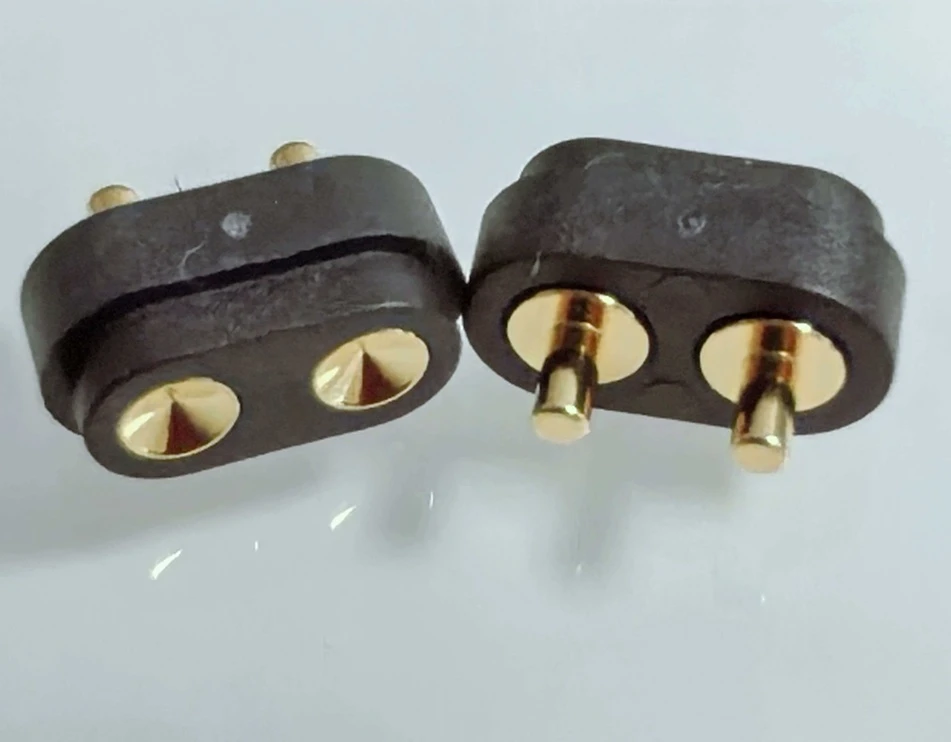

Battery Charging and Energy Systems：

In the fields, Johoty clients often require high continuous current, low resistance, and communication between the charger and battery system. Our clients always hope their charging docks to configurate presence detection, pre-charge sequencing, and temperature monitoring.

Johoty can help arrange these functions in one compact high-current hybrid pogo pin connector.

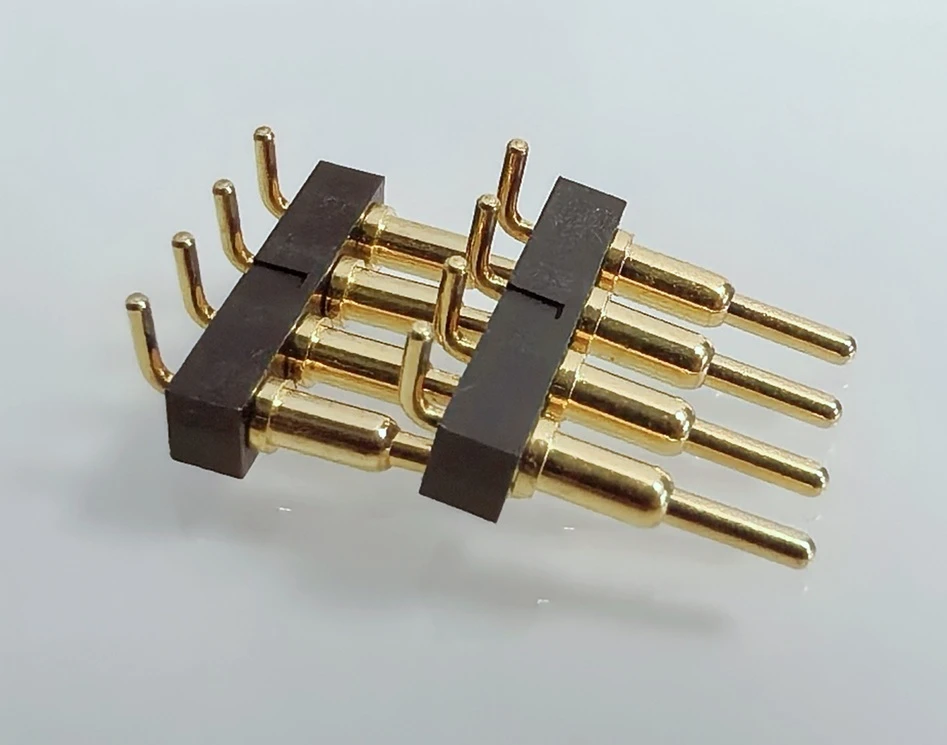

Medical and Laboratory Equipment：

Johoty clients often use spring loaded connectors in their charging cradles, removable modules, and handheld instruments. They also use our hybrid pogo pin connector in diagnostic accessories, and equipment that requires frequent cleaning.

Johoty can define cleaning chemicals, contamination controls, cycle life, documentation, and applicable regulatory requirements. We always evaluate our hybrid pogo pin connector suitability as part of the finished medical device.

Test and Measurement：

Spring loaded pins or connectors from Johoty can withstand high frequency repeatable connections. Many clients use them in devices under test, removable fixtures, programming stations, calibration systems, and high-density test modules.

Johoty can combine power delivery, low-level measurement, control, and high-frequency test channels in our hybrid pogo pin connectors. We can help our client to specify the contact resistance, force, wear, signal integrity, and fixture maintenance.

Consumer and Professional Electronics：

Many clients need to solve challenges from charging stands, smart appliances, audio equipment, and displays. They often face space constraints while effectively installing a compact connector in their cameras, handheld tools, and modular electronics.

Johoty can effectively customize perfect hybrid pogo pin connectors and achieve easy alignment and avoid a conventional exposed plug. Our client can finally solve their various space challenges with Johoty’s hybrid pogo pin connectors.

Transportation and Mobility：

Johoty clients often require blind mating, vibration resistance, sealing, and mixed power-and-signal transmission in their vehicle accessories. These connector functions can help them with fleet equipment, charging modules, removable displays, diagnostic systems, mobility products.

For Johoty’s hybrid pogo pin connectors, we must define and validate it before client’s approving it. After all qualification run well, we pass to our client for application-specific automotive or transportation projects.

Security and Access Systems：

Many clients need charging, data transfer, maintenance, programming, or modular installation. And, they often ask Johoty to establish and maintain a reliable physical connection in complex physical installation. At the same time, Johoty need to guarantee a stable connection in electrical interference over the long term.

With >15-year experience, Johoty can customize hybrid pogo pin connectors for smart locks, access terminals, portable readers, cameras, security devices.

Communications Equipment：

Most Johoty’s clients from communication industry often require hybrid pogo pin connector to support removable radio modules and communication docks. They ask for high speed, high frequency together with continuous high current in only a connector interface.

In clients’ service interfaces, compact networking hardware, and test systems, Johoty always value signal path, grounding, and repeatability.

Incoming Material Inspection: Johoty always begins our production process with verifying controlled materials. We need to double inspect material consistency, plating quality, pogo pin specifications, and supplier reliability.

Precision Component Inspection: Johoty strictly inspect critical dimensions of plunger, barrel, and spring to ensure correct mechanical fit, stable contact, consistent assembly quality.

Electrical Performance Testing: We guarantee each hybrid pogo pin connector focusing on electrical continuity, contact resistance, current capability, and signal stability.

Engineering-First Connector Development:

Johoty approaches every hybrid pogo pin connector project based on our >14-year engineering experience. We focus on understanding clients’ electrical requirements, mechanical limitations, environmental challenges, and long-term reliability expectations. We won’t prioritize offering a standard pogo pin connector only.

Flexible Customization For Unique Challenges:

Different clients or different products have unique requirements. Johoty can support customized hybrid pogo pin connector solutions for our clients. When clients’ orders are confirmed, our clients can get custom pin configurations and customized electrical layouts. They can get different power and signal combinations, shielding solutions, and mechanical integration.

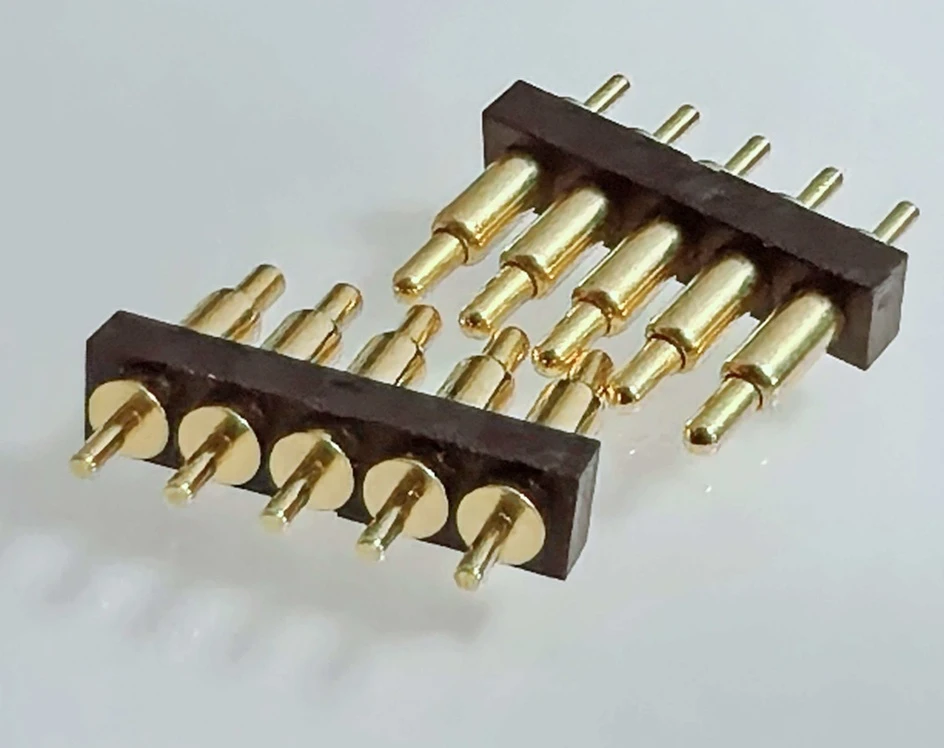

Reliable Power and Data Integration:

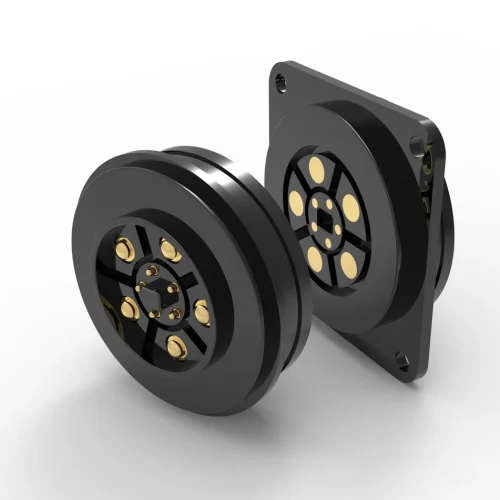

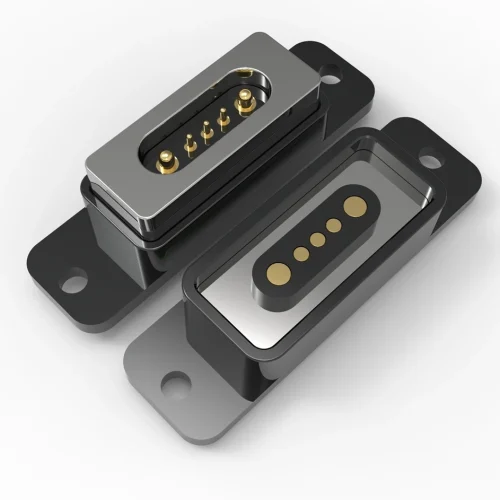

Many clients require Johoty to design hybrid pogo pin connectors that can do more during designing their electronic products. Within one compact hybrid pogo pin connector, Johoty can combine high-current power up to 50A continuous current and grounding. Our client can get controlled communication, high-speed data signal, and intelligent detection functions.

Supporting Clients From EV/DV to Mass Production:

Many clients are developing a new hybrid pogo pin connector or optimizing an existing design. Johoty can provide technical support throughout our development process. We are professional from initial concept discussion to final production. We can help clients effectively reduce development complexity and improve connection reliability.
