Trustworthy Johoty High Current Pogo Pin Connector
Up to 50A Continuous Current：
Johoty can design high current pogo pin connector to achieve reliable power transmission with optimized current path and thermal management.
Ultra-Low Contact Resistance Design：
Johoty can ensure 10mΩ contact, minimizing energy loss, voltage drop, and heat generation based on design and precision manufacturing.
Advanced Thermal Management：
We can perfectly control temperature rise under continuous high-current of 50A per pin based on Becu or brass. And spring of SWP-B or SUS631, inner structure with ball or T-pin, and contact geometry.
Fully Customized Engineering Solutions：
Johoty can provide application-specific high current pogo pin connector solutions perfectly. Including dimensions and current ratings to plating, spring force, stroke length, and mounting structures.
Why Choose Johoty High Current Pogo Pin Connector?
Many clients require more than a standard pogo pin when face high current connection challenges. Johoty focuses on solving these engineering challenges through our customized high current pogo pin connector design and manufacturing expertise.
With communication with clients, Johoty knows various challenges that ordinary pogo pin connectors can’t solve in high current applications. When electrical current increases, we must consider contact resistance, heat accumulation, current density, and material conductivity. Also, we need to also design spring fatigue, mechanical stability, connection cycles, and environmental conditions.
Johoty also knows, a poorly designed high current pogo pin connector may experience excessive temperature rise. You will have to face unstable electrical contact, voltage loss, shortened service life, and unexpected equipment downtime.
High Current Pogo Pin Connector Technical Parameters
| Parameter | Specification |
|---|---|
| Type | High current pogo pin connector, or high current spring loaded connector. |
| Maximum Current | Johoty can design up to 50A per pin, continuous current. |
| Contact Resistance | Johoty can design and optimize for lower to 10mΩ resistance performance. |
| Pogo Pin Material | We can design pogo pins based on brass, Becu, and customized conductive materials |
| Surface Plating | Johoty can customize the finishing of Au, Pd, Rh, Ru, Pt, Ag over Ni or Cu. Also, we can design composite coatings of PdNi+Au, Ni+Au+Pt, Ni+Rh/Ru, and Ti+OLC. |
| Spring Material | Johoty can design springs based on BeCu, SWP-B, SUS631 with -200℃~+370℃, <5% in 1,000 hours. |
| Working Temperature | We can customize high current pogo pin connector with -55℃～+125℃. We consider the temperature rise during actual operation based on ambient temperature and self-heating. |
| Mechanical Life | Johoty can design standard high current pogo pin connector with lifespan of 10,000 times. We can also customize up to life cycles of 500k times based on our design, materials, actual temperature, and client’s application. |
| Customization | Johoty can customize the diameter, length, working height, stroke, and barrel tail structure of pogo pins. Such as flat-bottomed, plug-in with locating pins, bent or right angle, solder cup, double headed pogo pin, etc. 3A-6A, up to 10A-50A current based on as low as 10mΩ. We can increase lifespan from 10,000 times to 50,000 times or even 500,000 times. Materials include brass, beryllium copper, piano steel wire SWP-B spring. Johoty can flexibly design pin arrangement, housing shape, matching male and female ends. And, high temperature resistance, waterproof and dustproof, magnetic suction function, sequence control. |
| Application | Johoty’s customized high current pogo pin connector can be integrated in industrial, battery, robotics, testing, medical devices. |
50A High Current Pogo Pin Connector Performance
Johoty can design continuous 50A for reliable high current transmission. For clients working with high-power electrical systems, they always ask for more than just a peak current value. They need Johoty to maintain stable conductivity, controlled temperature rise, consistent contact force, and long-term reliability.
Johoty designs our high current pogo pin connector with optimized electrical pathways to support continuous current transmission. We optimize it depending on size, materials, spring, plating thickness, and cooling conditions.
For a high current pogo pin connector, 50A continuous current per single pogo pin is essential. Johoty needs to design it overall for low contact resistance and high conductivity copper alloy. And, we need to optimize current flow structure, high reliability spring, and customized thermal optimization.
Controlled Temperature Rise Of Johoty High Current Pogo Pin Connector
Temperature control is critical during our designing a high current pogo pin connector. When electrical current passes through a pogo pin and the match target pin, resistance generates heat. Johoty doesn’t simply increase current ratings. We design the complete electrical and mechanical structure to ensure reliable performance under real high current usage.
Johoty studies the relationship between heat generation and resistance follows for P = I²R. P represents power loss, I represents current, R represents contact resistance. Even a small increase for contact resistance can increase heat significantly at high current application. So, Johoty needs to optimize:
Read More
Contact Geometry: Johoty Improves contact structures to reduce localized current concentration and minimize heat generation.
Conductive Materials: Johoty design it with high-performance copper alloys to provide excellent electrical conductivity while maintaining mechanical strength.
Surface Plating: We can effectively improve corrosion resistance and maintain stable electrical contact performance by gold plating.
Spring Design: We can optimize spring force to ensure reliable contact pressure without excessive mechanical stress.
show less
Custom High Current Pogo Pin Connector for Complex Engineering Requirements
Johoty clients have different electrical, mechanical, and environmental requirements for every high current application. However, standard pogo pin connector can’t provide the required performance when our clients face higher current demand, limited installation space. It’s also powerless for strict temperature rise requirements and frequent connection cycles under high current. And, it has high performance degradation under harsh operating environments, special mounting requirements, and customized electrical interfaces.
Johoty can comprehensively customize high current pogo pin connector solutions based on our clients’ product requirements.
Read More
show less
Customized Current Rating For High Current Pogo Pin Connector
In different applications, clients often require different power transmission. Johoty can customize various pogo pin structures according to required current levels. Including continuous current requirements, peak current requirements, charging current requirements, and pulse current applications.
We can evaluate conductor size, contact structure, conductive material, and heat dissipation conditions to develop the appropriate high current pogo pin connector solution.
Customized Pin Diameter and Dimensions:
Our clients have to often face common challenges due to space limitations in modern electronic equipment. When they requires compact high-density connectors or heavy-duty power contacts, Johoty can flexibly customize:
Pogo pin diameter,
Overall length,
Stroke distance,
Mounting dimensions,
Housing configuration.
Customized Spring Force and Travel Distance:
For reliable contact, Johoty can balance the correct configuration among contact pressure, mechanical durability, insertion force, and long-term stability.
To achieve the correct configuration, Johoty can customize the items below to match different mechanical requirements:
Spring force of ≥15 gf, even 5 gf for special dimensions,
Compression stroke of ≥0.20 mm,
Working travel of ≥0.10 mm,
Preload force of ≥10 gf.
Customized Gold Plating or Composite Plating:
Johoty can define the right surface plating or finishing to ensure high conductivity for high current and low contact resistance. It can also guarantee good corrosion resistance, contact lifespan from 10,000 times to 500,000 times, and electrical stability.
We can design available plating solutions of Gold, Nickel, Silver, Palladium/Pd-Ni, Rhodium, Ruthenium, Platinum, Chromium, Zinc, Copper, and composite plating.
We customize Gold-plated high current pogo pin connector as a common solution for low contact resistance, high reliability, and frequent mating cycles.
Customized Structure of High Current Pogo Pin Connector
Johoty can flexibly support multiple structural configurations of single pogo pin contacts and pogo pin arrays. We can also offer board-to-board pogo pin connectors, spring loaded contact assemblies, and custom power pogo pin modules.
Many clients have complete different shapes even special dimensions. Johoty engineering team can optimize the structure based on installation space, current requirements, mechanical alignment, and environmental conditions.
High Current Pogo Pin Connector Applications
Johoty has supported the increasing high current pogo pin connector solutions for the required flexibility, compactness, or connection reliability. These connectors with up to 50A per pin can work in those demanding applications required by our clients.
Battery Charging Systems:
Johoty designs high power pogo pin connector to support reliable charging while maintaining compact installation. Our clients can integrate it into battery charging stations, battery management systems, portable power equipment, and energy storage devices.
We can guarantee the high requirement of our high current pogo pin connectors. Including stable charging current, low energy loss, controlled temperature rise, and repeated connection reliability.
Industrial Automation Equipment:
Johoty many clients require our high current pogo pin connector to operate continuously under demanding conditions. Clients’ automation systems include automated production equipment, robotic systems, testing machines, intelligent manufacturing devices.
To meet the demanding requirements, Johoty always design our high current pogo pin connector with stable electrical contact and high mechanical durability. For client equipment industrial environments, we often customize various mounting solutions, including solder cup, large through hole, etc.
Robotics and Smart Devices:
Yes, we can provide our clients with compact but powerful electrical interfaces in their robotic systems. We need to effectively solve various challenges, including limited installation space and frequent movement, vibration resistance, and stable current transmission.
Johoty develops compact high current pogo pin connector solutions based on beryllium copper, tellurium copper, gold plating or composite electroplating. We can help our clients to solve problems in robotic joints, docking systems, and smart equipment charging interfaces.
Semiconductor and Electronic Testing Equipment:
These equipment require tight tolerance, for example: ±0.01mm or even ±0.007mm, Johoty can offer this for our clients. In client’s precision testing equipment, Johoty can provide reliable electrical contact based on our φ0.38mm, φ0.26mm barrel diameter.
With Johoty high current test probe connectors, our clients can get repeated testing cycles and stable electrical performance. They can also meet high precision for precise contact positioning, semiconductor testing, electronic component testing, and functional testing equipment.
Medical Equipment:

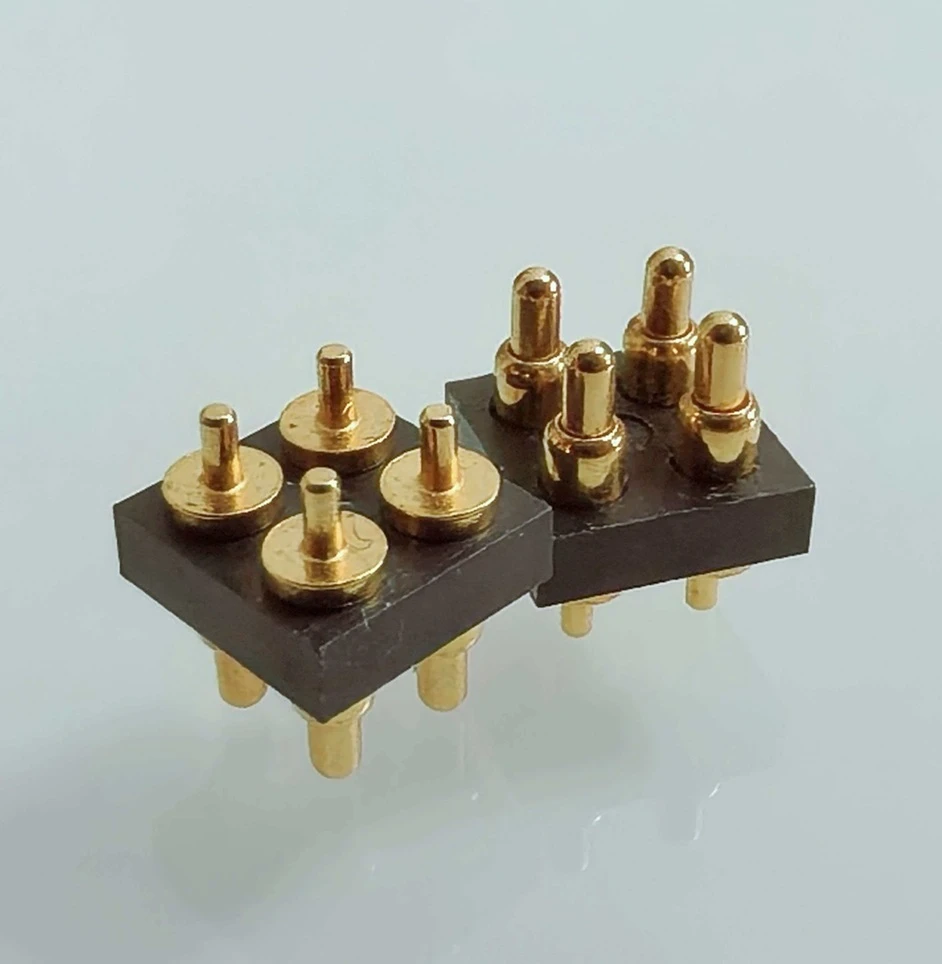

Johoty can accurately design our high current pogo pin connector for clients’ medical devices. We carefully evaluate, design, and validate our solutions, then, we arrange 5 or 6 axis CNC machining. We need to guarantee each tight tolerance according to the drawings which are approved by our clients. And, for medical equipment, Johoty always consider biocompatibility, high temperature and pressure, corrosion resistance, and waterproofing.
So, Johoty clients can receive our high current pogo pin connector with high reliability, stable performance, and safety-focused design. Our client can achieve good projects smoothly for medical monitoring equipment, diagnostic instruments, and portable medical devices.
Engineering Solutions for High Current Connection Challenges

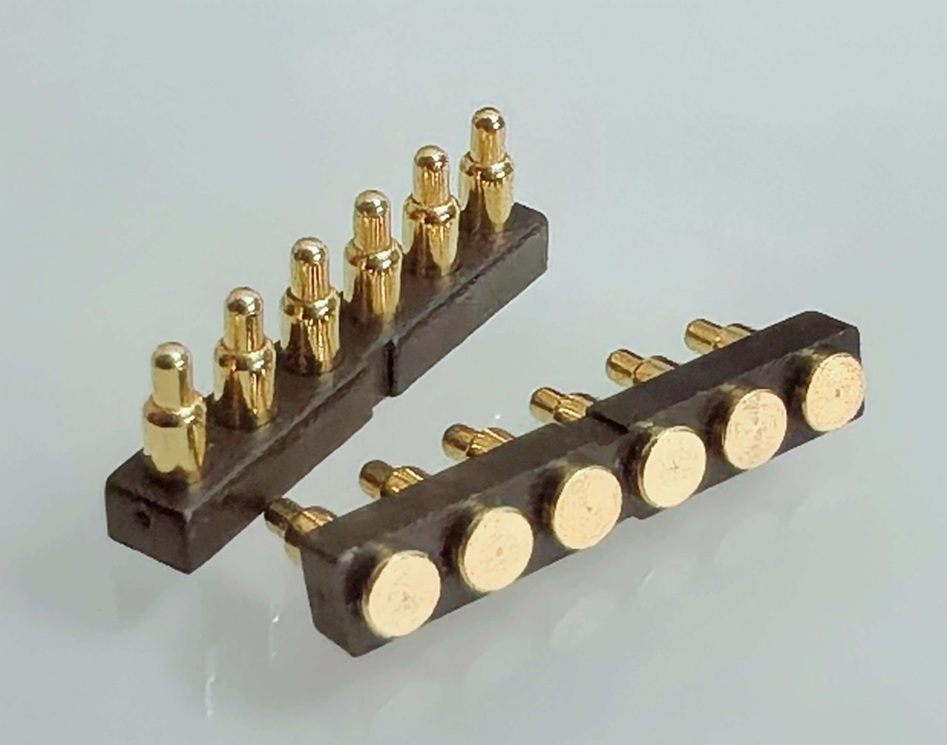

Excessive Temperature Rise:
Concerns: When current increases, many clients are concerned about how can we prevent overheating.
Solutions: Johoty can achieve high current of continuous 50A per pin while maintaining reliable operation during device lifespan. We can optimize the complete electrical pathway by controlling contact resistance, using conductive material, designing current distribution and thermal.
Contact Reliability During Long-Term Operation:
Concerns: For high frequency contact projects, some clients hope the connector maintain stable performance after 100,000 of life cycles.
Solutions: Johoty can design the inner structure with 500k lifespan of high current pogo pin connector based on good materials, plating. It can maintain consistent electrical contact throughout the whole connection lifecycle. We focus on precision CNC machining, stable spring, optimized contact force, and wear-resistant plating.

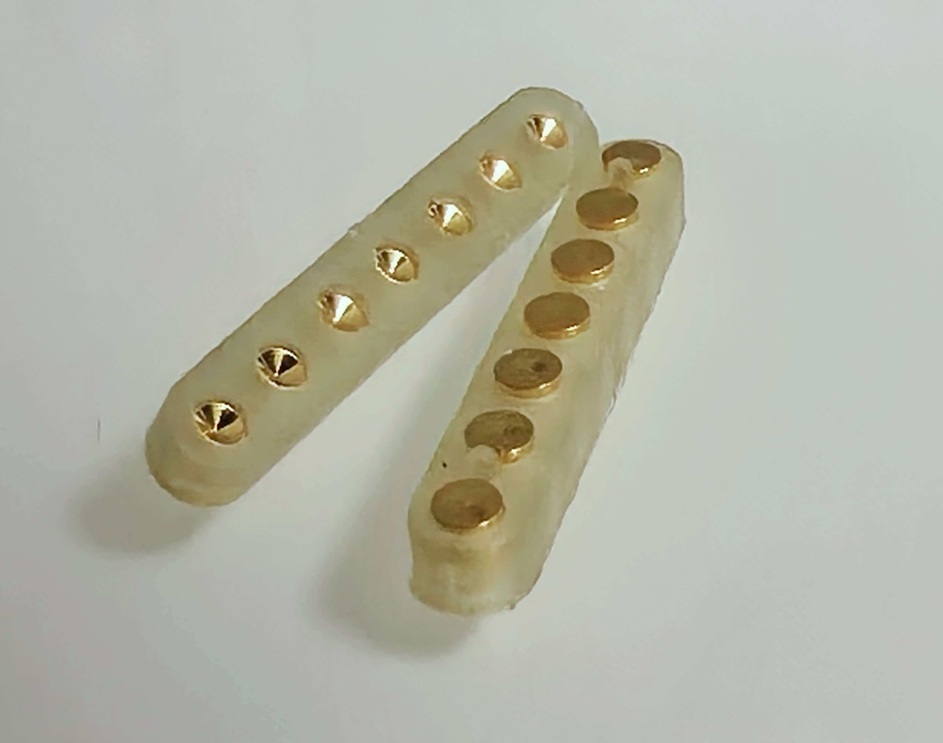

Limited Installation Space:
Concerns: Many clients from wearable, consumer, aerospace often contact Johoty to customize high power transmission but very limited space.
Solutions: Johoty can customize compact high current pogo pin connector to balance current capability, size limitations, and strict mechanical requirements. Then, our clients can achieve reliable connections to flexibly design those compact and powerful devices.
Special Environmental Requirements:
Concerns: In seawater, outdoor, industries, medical or test, many clients asked Johoty to design the connector for various challenging environments.
Solutions: Johoty can customize high current pogo pin connector solutions with high temperature, compression, voltage, or vibration. They are available for corrosion resistance, vibration resistance, high-frequency operation, and extended service life.
Johoty High Current Pogo Pin Connector Manufacturing Capability
We design and produce a high current pogo pin connector with strict manufacturing control instead of a simple mechanical component. We consider it a precision electrical connection system and combine precision CNC machining with automated production. To ensure consistent quality, we always arrange the collaborative work of experienced engineering teams and comprehensive inspection procedures.
Precision Manufacturing of Plunger, Barrel, Spring:
Johoty designs our high current pogo pin connector based on tight CNC machining tolerance of 0.01mm or even 0.007mm. Our plunger, barrel, and spring can accurately match each other to ensure high reliability of high current pogo pin connector. We can control the dimensional accuracy, surface quality, and assembly consistency to maintain stable electrical performance.
Advanced Assembly Process:
Johoty must make each high current pogo pin connector goes through controlled assembly processes. Pogo pin assembly include alignment and riveting of plunger, spring and barrel, and manually pressing each plunger tip. This can avoid any potential sliding stuck of plunger tip and possible non-smoothness. So, we can ensure correct spring installation, reliable contact movement, and consistent mechanical performance. And we can guarantee our clients receive high quality high current pogo pin connector forever.
Customized Production Capability:
Johoty has a production team including R&D engineering team, CNC machining team, PE, QE, and production lines. We can help our real customers move efficiently from concept validation of high current pogo pin connector to commercial manufacturing. Sure, customization is not easy yet. Johoty needs to closely work on depth understanding with our client first. Finally, we can confidently and effectively support our clients from prototype development, small batch production to mass production.
Quality Control and Tests for Johoty High Current Pogo Pin Connector
Reliability is the foundation of every Johoty high current pogo pin connector. Before delivery, we need to evaluate each connector through multiple testing processes:
Electrical Performance Testing: Johoty needs to test contact resistance, current carrying capability, and voltage drop evaluation.
Thermal Performance Testing: We need to test temperature rise, continuous current stability, and thermal stability evaluation.
Mechanical Reliability Testing: Johoty tests compression cycle, spring durability, and mating life cycle testing.
Material Inspection: Before CNC machining and assembly, Johoty verifies material conductivity, test gold plating, and inspect dimensions by CCD or manual projector.
High Current Pogo Pin Connector FAQ
What is a high current pogo pin connector?
A high current pogo pin connector from Johoty is suirely a spring loaded electrical contact. Johoty designs it to transfer higher electrical currents and maintain reliable mechanical contact and stable electrical performance. Johoty skips standard pogo pins for signal transmission and low-current applications. We design high current pogo pin connector with optimized conductive materials and larger current paths. It has improved contact structures and enhanced thermal management capabilities.
Our high current pogo pin connector solutions are for demanding reliable power transmission. It can perfectly work in battery systems, industrial equipment, robotics, charging devices, and electronic testing systems.
How much current can Johoty high current pogo pin connector handle?
Johoty design the high current of a high current pogo pin connector depending on pogo pin diameter and conductive material. At the same time, Johoty also design it based on contact structure, gold plating technology, thermal environment, and operating conditions.
We can customize high current pogo pin connector with up to 50A continuous current per pin. That is, you can get total continuous 200A current per a 4-pin high current pogo pin connector.
For each application, we evaluate electrical and temperature rise for the most suitable connector solution rather than standard current rating.
How does Johoty control temperature rise in high current pogo pin connector?
We pay more attention to designing the temperature rise for high current pogo pin connector reliability. Johoty controls thermal performance through reducing contact resistance to <30mΩ and optimizing current flow paths. We always use high conductivity materials of BeCu or brass, improve contact geometry, and adjust spring and contact structures.
Johoty know heat generation follows P = I²R, a lower contact resistance can significantly reduce heat generation during high-current operation. We focus on achieving stable continuous 50A instead of only reaching a peak current, also, we try continuous 80A.
What makes Johoty high current pogo pin connector different from standard pogo pin?
Johoty goal is to provide reliable high current connection solutions for applications with costly failure and strict performance requirements. We design high current pogo pin connector focusing on higher current carrying, optimized electrical pathways. Furthermore, we always emphasize thermal performance of each pogo pin, mechanical durability, and customized structures.
For our standard pogo pins, Johoty pays more attention to signal transmission, low current charging, and testing applications. Sure, Johoty also combine some special function into our standard pogo pin and high current pogo pin connector. For example, high current can work together with low signal, high temperature, IP67 or IP68 waterproof, and magnetic alignment.
Can Johoty customize high current pogo pin connector according to our requirements?
Yes, it is no problem at all. Johoty specializes in customized various high current pogo pin connector solutions. We can customize a perfect pogo pin connector based on your current rating, pin diameter, overall dimensions, and spring force. We surely refer to your stroke length, contact structure, plating, mounting method, and connector arrangement.
Johoty can show you perfect high current pogo pin connector solution according to drawings, samples, technical specifications and application requirements.
What materials can Johoty use for high current pogo pin connector?
Johoty always emphasizes high-conductive materials and designs our high current pogo pin connector according to application requirements. Because we believe materials always directly affect electrical conductivity, mechanical strength, and service life.
Johoty commonly uses:
Conductive Components: We select high-performance copper alloys for their excellent electrical conductivity and mechanical reliability. For example: beryllium copper, tellurium copper, brass, etc.
Contact Surface: We use gold plating to improve corrosion resistance, electrical stability, and contact reliability.
Spring; Johoty selects high-elasticity spring materials according to force characteristics, cycle life, and environmental conditions.
Is Johoty high current pogo pin connector suitable for battery charging?
Yes. We confirm it is suitable. Johoty optimizes our high current pogo pin connector according to actual charging current, mechanical structure, and operating environment.
Many clients require high current and connection cycles, low power loss, and controlled temperature rise for their battery charging devices. To meet client target, Johoty can provide effective high power pogo pin connector solutions from prototype to mass production. This will completely fit our clients’ battery charging equipment, energy storage systems, portable power devices, and smart charging stations. And, Johoty can guarantee our connector 20mΩ contact resistance, <30℃ temperature rise, and >100k times of life cycles.
How many mating cycles can Johoty high current pogo pin connector support?
Johoty always designs our high current pogo pin connector according to customer requirements, including the required frequent connection and disconnection. Standard life cycles are 10,000 times, we can flexibly offer you 50,000 times, 100,000 times, or even 500,000 times.
We design our connectors through optimized spring structures and precision CNC machining with tight tolerance of lower to 0.007mm. With this, Johoty clients can get reliable performance of high current pogo pin connector over extended operating periods.
In brief, Johoty designs the service life depends on spring design, contact material, plating thickness, operating environment, and mating conditions.
Can Johoty provide prototypes before mass production?
Yes, we can. Johoty can support the complete development process from prototype EV validation to mass production for our clients. For a high current pogo pin connector, Johoty needs to go through each step without any skips. It includes requirement analysis, engineering design, prototype production, performance verification, and mass production.
With prototype validation, Johoty customers can confirm actual current performance of high current pogo pin connector. And, they can clearly know temperature characteristics, mechanical compatibility, and installation requirements. Then, our clients can determine how to move prototype into full-scale manufacturing.
What industries use Johoty high current pogo pin connector?
Johoty always adheres high current safety, perfect temperature rise and long-term reliability based on high conductivity and low contact resistance. We persist in high quality first based on high consistency of mass production and on-time delivery all the time.
We work with customers across industries who often require customizing compact, reliable, and high-performance electrical connections. With Johoty high current pogo pin connector, our clients can integrate it into their battery systems and industrial automation. They can also integrate our high current pogo pin connector into robotics, semiconductor testing, and various medical equipment.
Many times, Johoty clients customize high current pogo pin connector for smart devices, charging systems, and customized electronic equipment.
How do I choose perfect high current pogo pin connector?
Johoty recommends discussing project requirements with our CFT team to identify the most suitable design. With the accurate information, Johoty can create a faster solution of high current pogo pin connector for you. It includes target current, mechanical drawing, operating environment, quantity requirement, expected lifetime.
When Johoty helps you choose perfect high current pogo pin connector, we need to evaluate required current and working voltage. At the same time, Johoty can recommend perfect solution based on available installation space, temperature, connection frequency, and environmental conditions.
With all info and Johoty proposal and recommendation, you can get perfect high current pogo pin connector for your project. Rest assured!
Why choose Johoty as a high current pogo pin connector manufacturer?
Johoty focuses on engineering-driven high current pogo pin connector solutions rather than standard pogo pin connector supply. Our mission is to help our customers solve difficult high current connection challenges with reliable, flexible customization, long-term performance.
Most customers choose Johoty because of our customized high current pogo pin connector solutions with high safety, low temperature rise. From prototype, engineering validation to mass production, Johoty offers engineering support and strict quality control. The most reassuring thing for customers, Johoty has flexible production capability and application-focused solutions.
Need a Reliable High Current Pogo Pin Connector Solution?
When you require higher current, lower temperature rise, long-term reliability, it’s critical to choose Johoty high current pogo pin connector. Johoty works with engineers, designers, and manufacturers worldwide to develop customized high current pogo pin connector solutions for demanding applications.
Johoty are ready now to strongly support your projects with:
- Perfect high current pogo pin connector with continuous 50A per pin,
- Compact power pogo connector with solder cup, right angle, through hole or SMT surface mounting,
- Custom high current pogo pin connector solutions based on perfect spring loaded pins,
- Johoty complete engineering recommendation for the expected high current pogo pin connector.
