What is a magnetic charging cable?

Magnetic charging cable is a technology that utilizes magnetism to connect power sources and devices for charging. We place magnets in the connector section for fast, easy, and secure connection to the device port. Users can easily connect the magnetic charging cable to their device, even in the dark or when operating with only one hand. This quick-connect feature is perfect for busy or multitasking situations. We can design it for different types of device ports. Such as USB-C, Micro-USB, Type-C, HDMI, Lightning, and so on. Therefore, it is ready for many devices. Compared with the traditional charging cable. it can effectively reduce the wear and tear at the interface. And prolongs the service life cycles, because it reduces the physical mating.

Magnetic charging cable

It provides users with a more convenient and safer way of charging. It drives innovation in designing charging interfaces and facilitating the development of wireless charging and other advanced charging technologies. Helps drive compatibility between different devices, especially in the trend towards more harmonized and universal charging solutions.

Magnetic Charging Cable_24013101_Magnetic USB Charger

Principle of magnetic charging cable

It is equipped with magnets of one or two poles on both ends. One end connects to the charger and the other to the device. These magnets are usually permanent magnets that produce a constant magnetic field. We usually use N52, which is the strongest magnet material.

Automatic Alignment:

When the end of the magnetic charging cable approaches the charging port of the device. The magnet’s magnetic force will automatically attract and align the connection point. This auto-alignment feature makes the connection process so easy and convenient. That user can even complete the connection without looking.

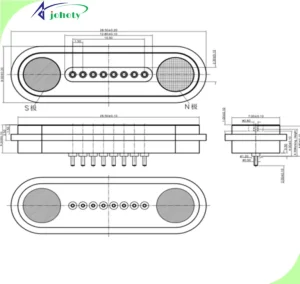

pin connectors_5.2_pogo pins

Electrical Connection:

Once the magnet is attached, pins or pogo pins in the magnetic charging cable come into contact with the device’s charging port. Which creates a stable electrical connection. This starts to transmit power to charge the device.

Safe Disconnection:

Users can easily disconnect the magnet connection when pulling the magnetic charging cable. This prevents damage to the device or the charging port. This feature increases safety during use.

Polarity Design:

To ensure a correct and consistent connection, we often design magnets with a specific polarity. This means that they can only be attracted in a specific way.

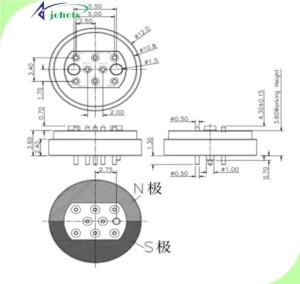

pin connectors_4.11_magnetic waterproof connector

How does the magnetic charging cable improve data transfer rate and charging efficiency?

The new technology for magnetic charging cable to improve data transfer rates and charging efficiency. It mainly involves material innovations, electronic design optimization, and the application of intelligent management systems.

Highly conductive materials

The use of copper or silver alloys for the wires reduces resistance, which improves the efficiency of charging and data transfer.

Optimized wire construction

By optimizing the internal structure of the wire. For example, we can use finer braiding techniques or more effective shielding materials. We can reduce signal interference then, and improve the stability and speed of data transmission.

Enhanced magnetic connector

The design of the magnetic connectors can also affect transmission efficiency. We always ensure that the magnetic connector is in close contact with the device interface. Which can reduce energy loss and improve charging efficiency.

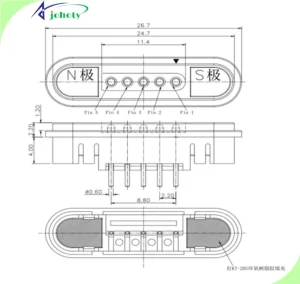

pin connectors_4.12_magnetic waterproof connector

Support for high-speed data standards

To increase data transfer rates, we design it to support high-speed data transfer standards. Such as USB 3.0, USB 3.1, Thunderbolt, or more.

Smart chip integration

Integrating a smart chip into a magnetic charging cable enables more precise current and voltage control. This can support fast charging technologies, such as Qualcomm’s Quick Charge or USB Power Delivery (PD).

Thermal Management Technology

Effective thermal management can prevent overheating during high-speed data transmission or rapid charging. It can ensure a safe and stable operation of the device.

Multi-channel technology

Ulti-channel technology in a magnetic charging cable is for simultaneous data transfer and charging without interfering with each other.

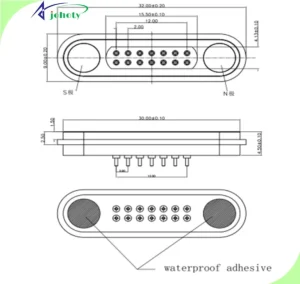

pin connectors_4.14_magnetic waterproof connector

Software Optimization

Optimize with the software of the device and charger. It can more effectively manage power transfer and data flow to ensure maximum efficiency.

Eco-friendly and efficient raw materials

Eco-friendly and efficient materials can not only enhance the sustainability but also contribute to the overall performance.

Flexible connection

We can provide rotatable, bendable, and ant-rotation locking connections. Which can adapt to different usage environments while ensuring connection stability and efficiency.

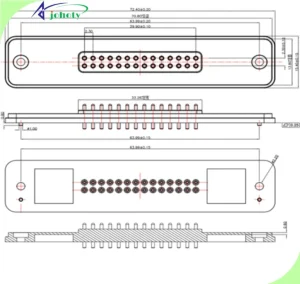

pin connectors_4.10_magnetic waterproof connector

Structural strength, durability, and security of magnetic charging cable

A high-quality magnetic charging cable should have a strong physical construction, durable materials, and comprehensive safety measures. Understand the materials, design specifications, and relevant safety certifications, e.g., FCC, RoHS, REACH, etc. It will help you choose the right product. At the same time, proper user habits and regular maintenance are also key to maintaining its performance.

Design of Magnetic charging cable

Its core is its magnetic connector. It is usually made of a strong magnetic material, such as a neodymium NdFeB magnet. Its design affects the stability and durability of the connection. Strong magnetism ensures a strong connection, but we also need to consider easy pull-out. Which is to prevent damage to the device when dropped.

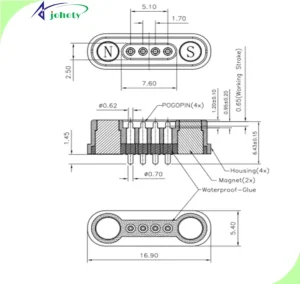

pin connectors_4.5_magnetic waterproof connector

Quality of the cable

The quality of the wire directly affects its durability and tensile strength. High-quality materials are better able to resist breakage and abrasion.

Durability of magnetic connectors and ports

The connector and port portion is the part of the magnetic charging cable that is often subjected to stress and wear and tear. We always design the ports to withstand frequent mating and to resist physical damage.

Influence of user’s operating habits

Frequent connecting and disconnecting by the user, as well as applying undue force when connecting. Which can accelerate the wear and tear of magnetic connectors and wires.

Electrical Safety Performance

Its electrical safety features are very important. This includes protection against short circuits, overcurrent, and overvoltage. All of which are key factors in evaluating its long-term durability.

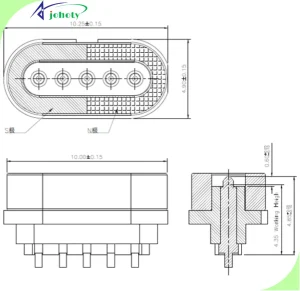

pin connectors_4.7_magnetic waterproof connector

Errorproof function

A good magnetic charging cable has an anti-snag feature when we design it to engage the correct port. This helps prevent accidental connection to metal objects that could result in a short circuit or other electrical malfunction.

Power Failure Protection

When disconnected, we also designed it with an instant power failure feature. It is to prevent arcing or electrical sparking, which is critical to the safety of electronic devices.

Overheating protection

To prevent overheating, we often add built-in temperature sensors or thermal protection devices to a magnetic charging cable. Which can automatically cut off power when its temperature rises to a level. Where it could damage equipment or cause a fire.

Waterproof and dustproof

We often design dustproof and waterproof IP67 for it. This is helpful for users whose usage environment may be exposed to moisture or dust.

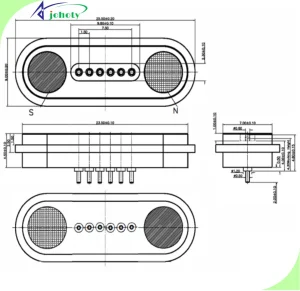

pin connectors_5.8_magnetic waterproof connector

Challenges and solutions when using the magnetic charging cable in industrial equipment

Environmental resistance

There are possible extremes of temperature, humidity, dust, or chemicals in Industrial environments. These may affect the performance of the magnetic charging cable. Solutions: We often use materials that are resistant to high and low temperatures, water, and dust, and chemically stable. They are very good at producing a magnetic charging cable and magnetic connector. Design well-sealed interfaces to prevent dust and liquid intrusion.

High durability and strength

Industrial equipment may require frequent mating of a magnetic charging cable, which requires very high durability and strength. Solutions: We always design the magnetic connectors and pogo pins from high-strength, abrasion-resistant materials. This is to increase mechanical support to minimize wear.

Magnetic Connector - johoty

Strong magnetic force and precise alignment

Need to ensure that can quickly and accurately align and connect it in industrial automation environments. Solution: Use high-performance magnets and precise alignment. Or consider using machine vision or other sensor-assisted alignment.

EMI management

Electromagnetic interference can be high. You need to make sure it is free from interference and does not interfere with other devices. Solution:  We often design effective EMC measures, such as shielding materials and optimizing cable layout.

High power transmission

Industrial devices require higher power charging, which puts higher demands on the design of the magnetic charging cable.  Solution: We always optimize wire cross-section and materials to support higher currents. Improve thermal management systems to handle more heat.

pin connectors_4.2_magnetic connector

Safety and reliability

In industrial applications, any charging failure can lead to serious consequences. Solution: Design intelligent charging systems with the protection of overload, short circuits, and temperature monitoring.

Cost Effectiveness

Maintain the cost-effectiveness of charging solutions while meeting industrial requirements. Solution: Balance performance and cost through design optimization, material selection, and manufacturing process improvements.

User and operator friendliness

Ensure that it on industrial equipment is easy to operate and maintain. Solution: Ergonomic design to ensure simple and intuitive mating, easy maintenance, and replacement of parts.

pin connectors_4.2_magnetic connector

Applications of a magnetic charging cable

MagSafe One of the most iconic applications for magnetic charging cable is in consumer electronics. Apple’s MagSafe technology is an iconic example of its application. It has been widely recognized and acclaimed since it was first introduced in 2006. MagSafe uses a magnetic connector that automatically attracts the correct position. When it is close to the laptop’s charging port. If the magnetic charging cable is pulled or pressurized, MagSafe’s magnetic connection instantly disconnects. This can prevent the laptop from being dropped and damaged by a tripped cord. While the original MagSafe was primarily used for charging, later versions also supported data transfer, increasing its functionality. The introduction of MagSafe has had an impact on the entire electronic device industry. It contributes to the development and popularization of the magnetic charging cable.

pin connectors_4.13_magnetic waterproof connector

Conclusions

All in all, our magnetic charging cable not only offers ultimate convenience and innovative designs. But also ensures the safety and compatibility of your devices. It is ideal for busy lives and has been proven by many satisfied users. Take advantage of our special offer now and take your charging experience to the next level. Visit our website, or contact us now, and experience a new way of charging in the future!
