Double Ended Pogo Pins! Double Ended Spring Loaded Pins Manufacturer, Excellent Solution Provider, Exporter, and Supplier, Welcome You!

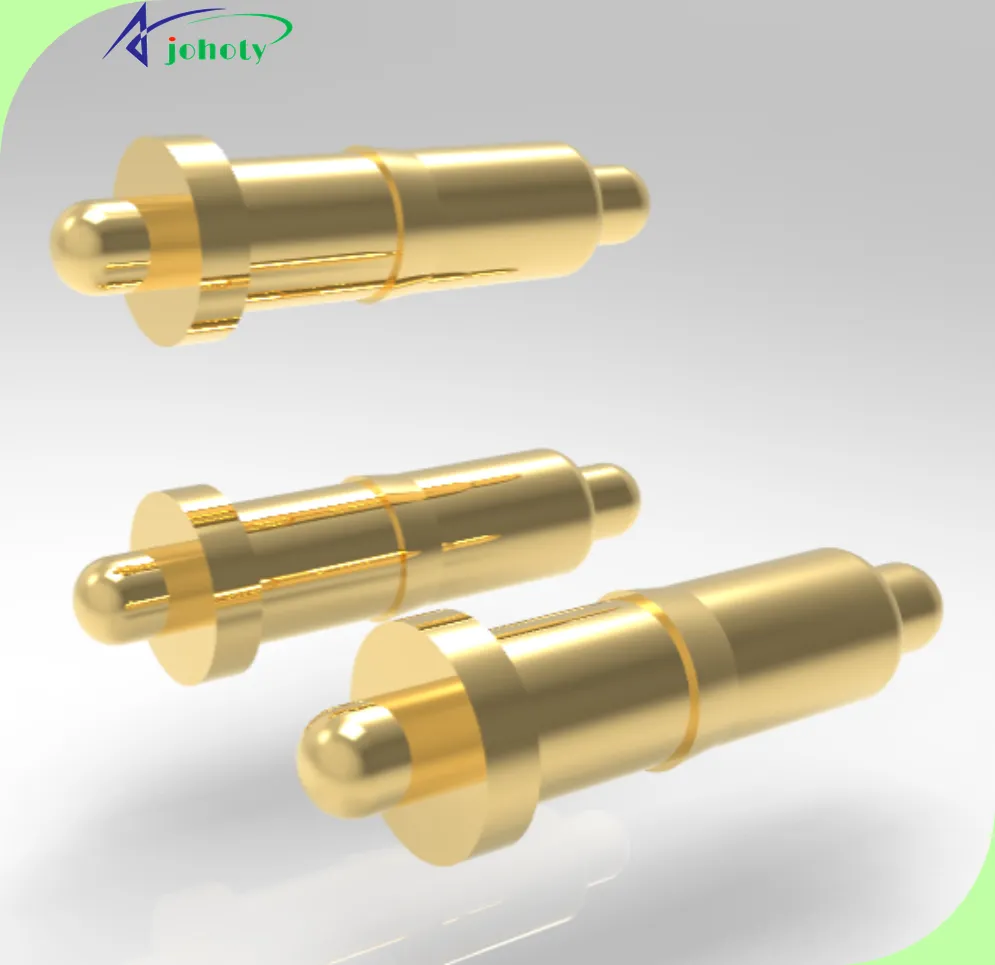

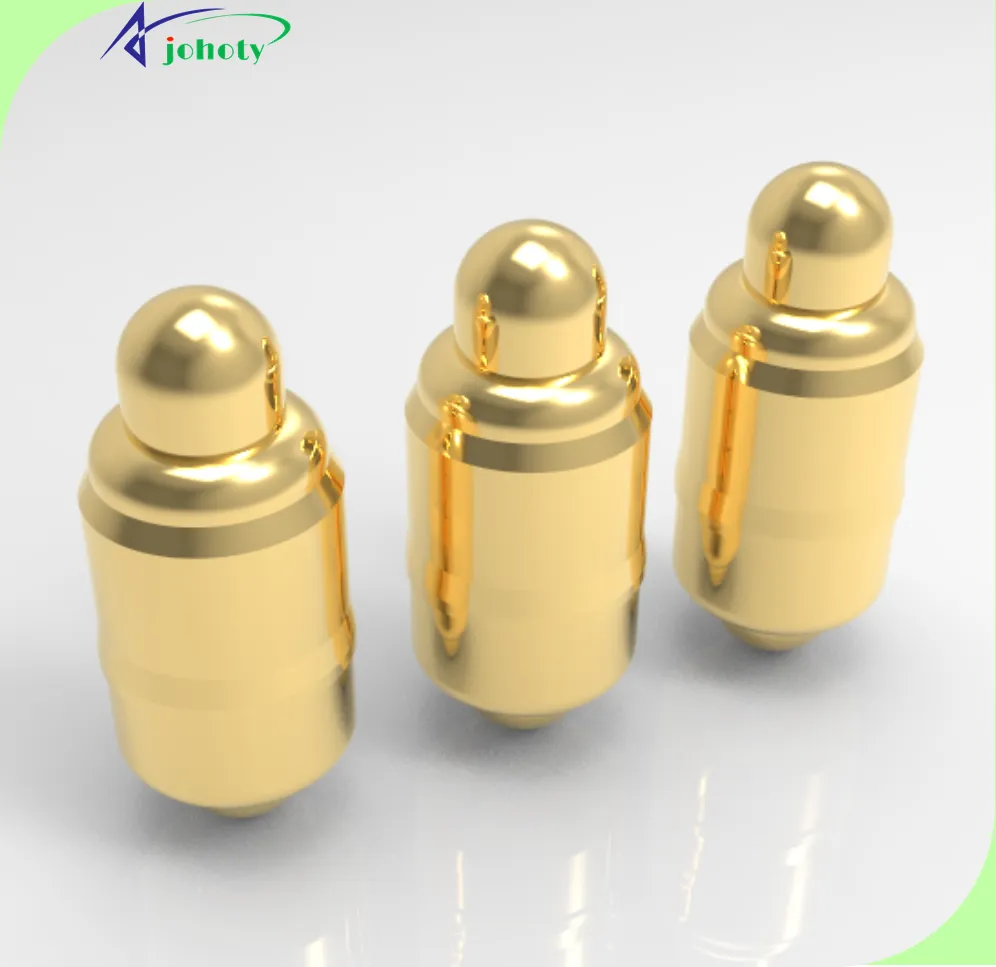

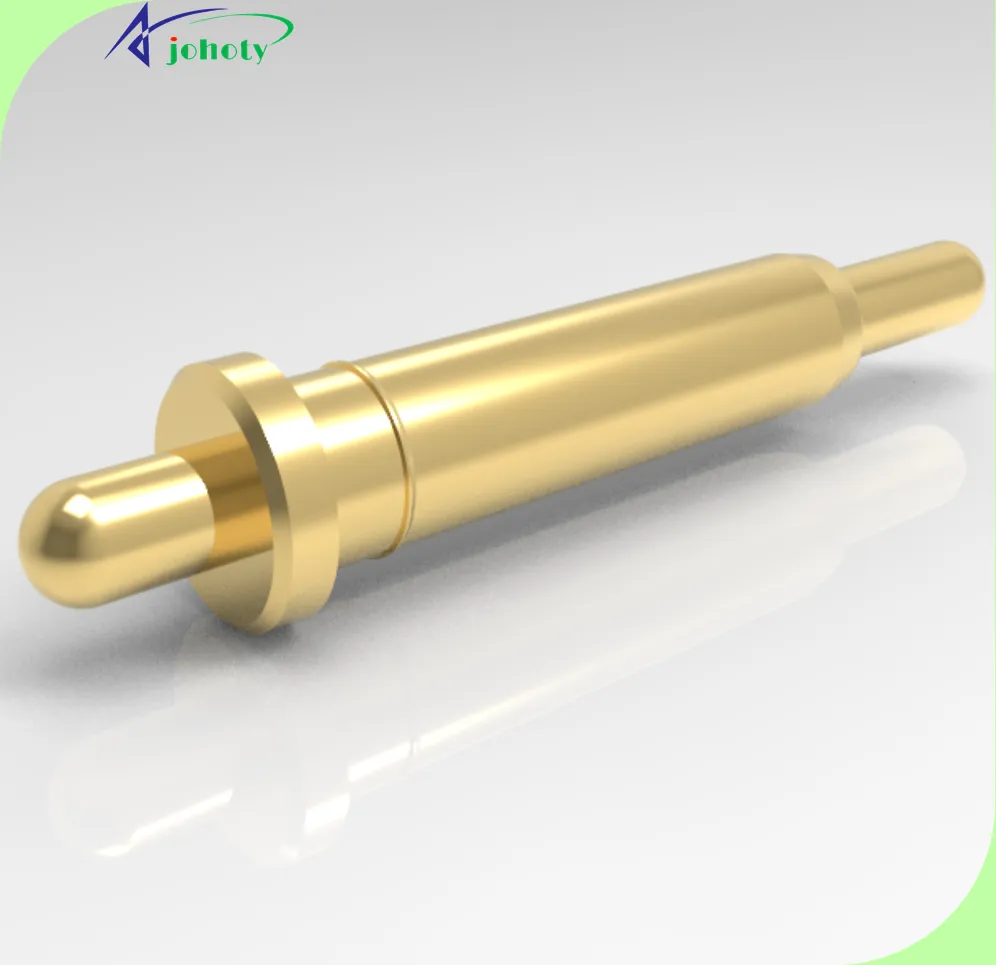

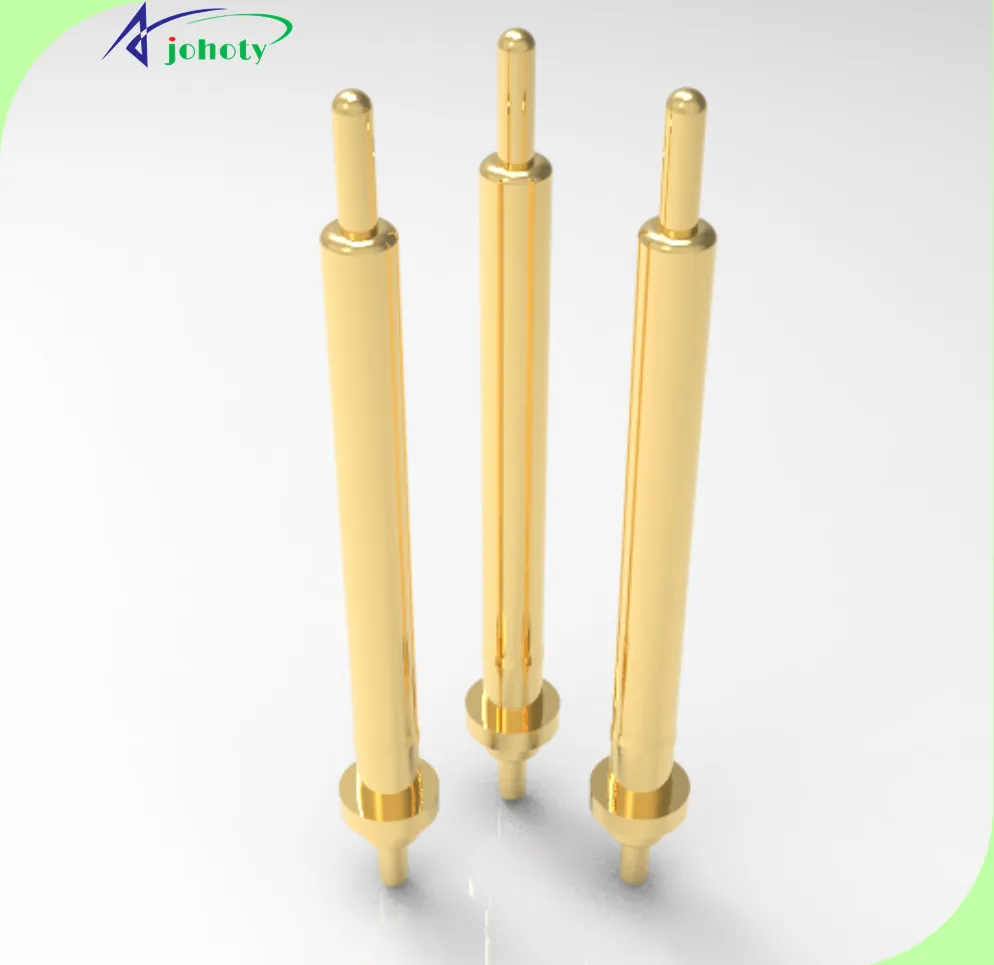

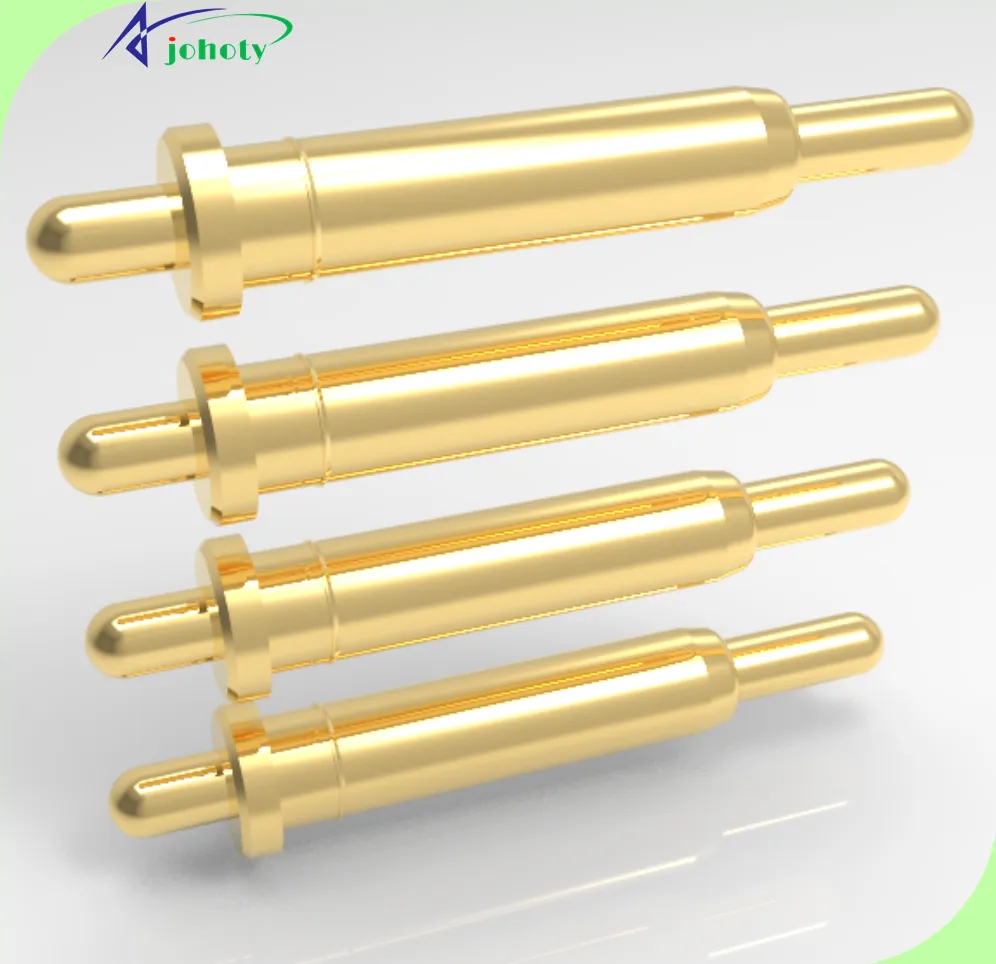

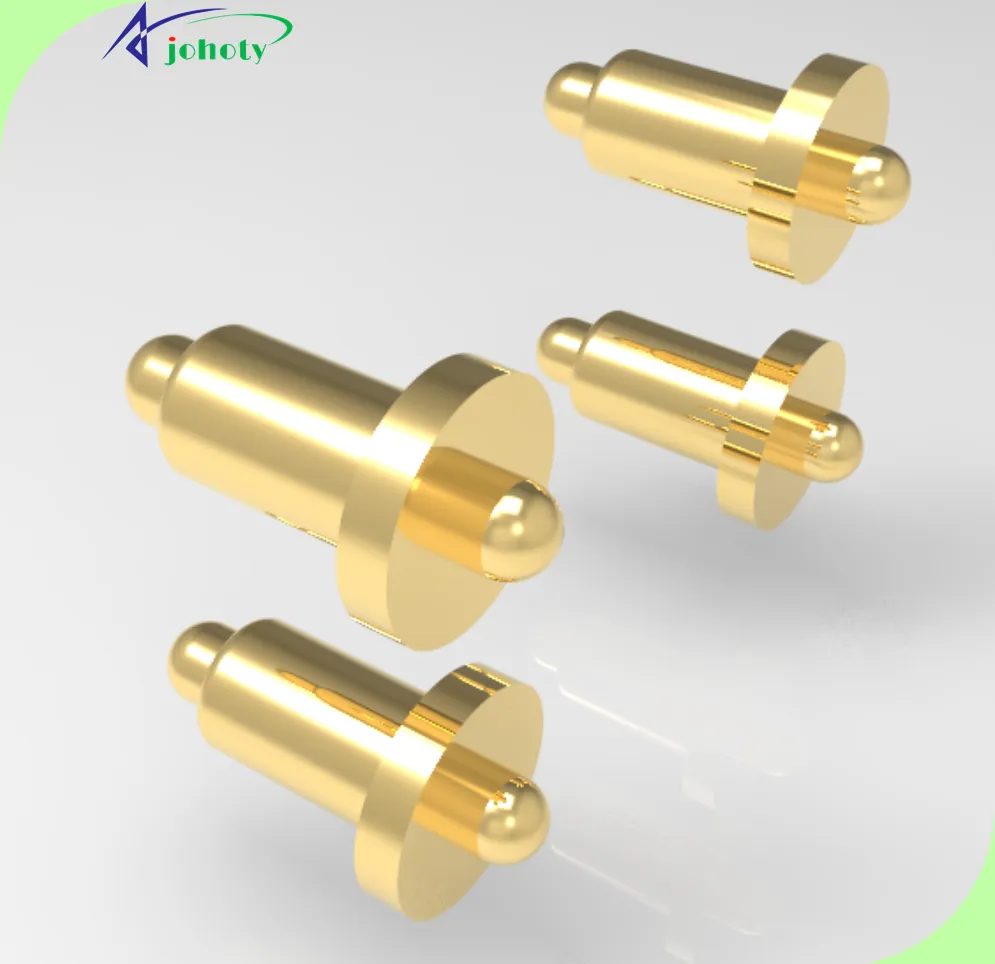

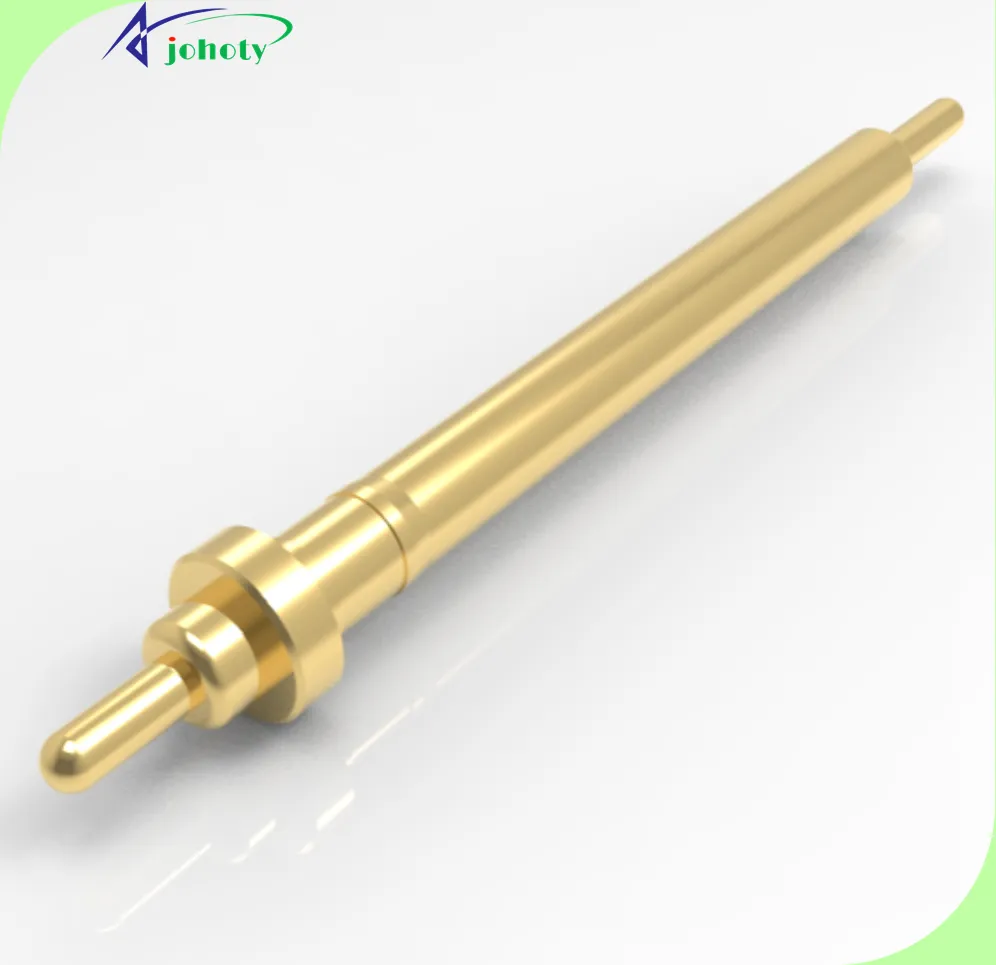

It is a high-precision spring-loaded pogo pin with two plungers. Both ends can be docked with the PCB and the other part, it eliminates the soldering at one end and provides flexible docking for where soldering is not required.
Catalogs of Double Ended Pogo Pins:
What Benefits to Customer?
Help customers solve the problem of quickly separating the two ends of the connector,
Help save customers the troubles about how to
minimize soldering,
Helps customers solve problems in terms of wear resistance, stable resistance, and excellent contact conductivity.
Helps customers solve problems with a little wobble and very smooth pressing
Help customers avoid the penetration of external liquid substances into the PCBA, resulting in a short circuit,
Help customers solve the problem of difficulty in realizing the bidirectional different spring force in small spaces,
Help customers solve the problem of difficulty in realizing long-distance electrical conduction.
Helps customers solve unstable connections of thin and light devices due to external vibration.
Helps customers realize board-to-board bi-directional stable connection in small space without soldering, double-head double-action,
Help customers solve the problem of small pitches and difficulty in installing in semiconductor and chip testing.
Features of Double Ended Pogo Pins
One barrel, two plungers, and one or two springs.
Different coating can ensure wear resistance and high durability.
During its assembly, install 2 springs
need in the barrel in two stages.
Tight constructure, technique requirements are more skilled and demanding,
Unlike IC test probes, it does not require a precision probe socket, it can be installed in a much narrower pitch.
Good working environment, including temperature of 10～40℃ and humidity of 30% or less, No dust, corrosive gases, oils, etc, that would contaminate the double ended pogo pins.
Stroke: apply only axial loads, not transverse loads, exceeding the specified stroke (2/3 of the full stroke) may significantly shorten the life cycle, its life cycle may be shortened if it is moved at 60 cycles/min or more.
If the current or voltage is applied within the specified stroke and in a stationary state, the contact will be very good,
its life cycle may be significantly shortened if power is on during, outside of, or in an open circuit state during the travel process
May fail to meet the rated current or voltage due to pogo pins’ aging, ensuring an adequate buffer in your design.
The contact resistance will increase, if the current is too high or after repeated actions according to the specified stroke, due to the aging of the contact plunger or the inner parts of double ended pogo pins,
When the temperature exceeds 85°C, it will drop the spring force,
When increasing the current, it will also drop spring force due to the heating of the probe.
Length(mm): 3.2, 3.3, 3.7, 3.8, 4.0, 4.1, 4.2, 4.4, 4.5, 4.6, 4.7, 4.8 …… 35.8, custom,
Stroke(mm): 0.5, 0.55, 0.6, 0.65, 0.7, 0.8, 0.85, 0.9, 0.95, 0.99, 1.0, 1.1, 1.2 …… 5.0, custom,
Plunger OD(mm): 0.4, 0.45, 0.5, 0.6, 0.65, 0.66, 0.7, 0.8, 0.83, 0.9, 0.95, 1.0, 1.07, 1.2, 1.3, 1.4, 1.5, 2.0, custom,
Barrel OD(mm): 0.74, 0.8, 1.0, 1.2, 1.3, 1.33, 1.35, 1.4, 1.45, 1.48, 1.5, 1.55, 1.65, 1.75, 1.8, 1.85, 1.95, 1.96, 2.0, 2.15, 2.4, 2.5, 3.0, 3.5, 3.6, custom,
Rating Voltage(V): 3, 4.2, 5.2, 9, 12, 16, 24, custom,
Rating Current(A): 0.1, 0.5, 1.0, 1.5, 2.0, 3.0, 3.3, 5.0, 10.0, custom,
Spring Force(gf): 26, 30, 35, 40, 45, 50, 55, 60, 65, 70, 73, 75, 78, 80, 85, 90, 95, 100, 105, 110, 115, 120, 140, 150, 200, 300, 350, 450, 600, custom,
Advantages of Double Ended Pogo Pins
Due to manufacturing complexity over time, our double-ended pogo pins are rapidly evolving miniaturized and densified. We are committed to providing you with quality products and delivering them on time, excellent performance, and best offer, including:
Outstanding performance, our double ended pogo pins enable optimal electrical contact. Outstanding value, besides competitive price, our double ended pogo pins have longer life cycles with much more stable and durable. Fast delivery, for customized samples, ship in 2 weeks, bulky pogo pins in 3~4 weeks.
Professional services, our CFT team has extensive customers, background in electronics and mechanical, as well as product experience, they can provide highly personalized advice and professional guidance to ensure continued success.
