Introduction: When Power Connector 100A is no longer a parameter, but a commitment to system security
In high-power systems, a current of 100A is not just a number. It represents the stability and lifespan of battery packs, inverters, charging modules, and even the overall vehicle architecture. Every surge and increase in contact resistance may cause rapid temperature rise and insulation failure. Even irreversible safety accidents. Johoty‘s customers mostly come from top European and American companies, and the engineers have clear definitions. 100A is continuous current or peak current? Does the working environment exceed 85°C? Does the vibration level meet ISO16750-3? Is the lifespan required to be 10,000 times or 200,000 times?
When these requirements were clarified one by one, it was discovered that traditional connectors also need to face a continuous 100A, long-term high-temperature vibration environment. At this point, they often expose defects in temperature rise, stability, and maintainability. So, Johoty‘s power connector with custom pogo pins took advantage. We often customize high elasticity gold-plated pogo pins and customized electroplating layers. We can achieve a contact resistance of 10m Ω for faster heat conduction. Achieving up to 200,000 cycles of increased wear resistance and more stable mechanical performance has become a key solution for the 100A system.
Power connector with custom pogo pins for continuous 100A
In electrical connections, temperature rise is proportional to resistance. A power connector with 5 pogo pins for 100A current, if the contact resistance is only 10mΩ, the power consumption is P=I²R=4W. When the resistance rises to 15mΩ, the loss immediately increases to 6W. Perhaps this is acceptable, but what if it is 100mΩ? Johoty can control local temperature rise below 20℃ without forming heat accumulation zones.
Johoty’s custom pogo pins have high-precision springs and customized electroplating, maintaining a stable contact pressure of 0.5~1.0N. In an environment with vibration of 30Hz and acceleration of 10g, the contact resistance remains <20mΩ. Compared with traditional blade terminals, Johoty’s pogo pins can reduce the average temperature rise by 35%. After 50,000 cycles of life testing, it still maintains 97% conductivity.
Guests do not need to excessively downgrade the system, nor do they need to add redundant parallel connections. Johoty can easily assist customers in achieving continuous operation of 100A for 10,000 hours at 85℃. Johoty can also help customers make the overall thermal design more controllable and the system life more predictable.
How does custom gold plating technology solve the hidden crisis of corrosion and contact aging?
In coastal, humid or industrial dust environments, conventional nickel and tin plating layers are prone to producing oxide films. Under these conditions, the contact resistance increases by more than 300% over time. Johoty’s custom gold-plated pogo pins use a gold layer with a thickness of ≥0.25μm, based on ASTM B488 Type III Level 2 standard. The thickness control error of the gold layer is less than ± 0.03μm, which can achieve a contact resistance increase of less than 10% after 1,000 hours of salt spray testing.
The combination of gold layer and HV>500 nickel bottom layer enhances wear resistance by 2.3 times. It can ensure a low impedance contact surface even after more than 30,000 cycles. At the same time, a uniform oxide film is formed on the surface of precious metals in an arc environment to avoid the concentration of hot spots. It can reduce the probability of arc breakdown by 65%.
Many clients’ projects require approval from UL, IEC, and ISO. The reliability of Johoty’s customized electroplating directly determines whether the customer’s system can pass temperature rise and insulation creepage distance tests. Our solution can become the core barrier for customer engineering teams to pursue total peace.
How to stay calm with power connector with custom pogo pins under high temperature and high vibration
In 100A applications, thermal management is the core of implicit risks. Johoty’s pogo pin connector uses CuZn alloy pogo pins and high elasticity SUS631 springs. The thermal conductivity reaches 110 W/m·K, and the internal thermal resistance is reduced by 27% compared to traditional designs. After being continuously powered on for 1 hour at 100A, the temperature of pogo pins only increased by 24°C, and their thermal stability was 40% better than that of conventional pins.
Meanwhile, the housing of the pogo pin connector is made of high thermal conductivity LCP material (k=0.9 W/m·K). Reserve heat dissipation channels to evenly distribute heat throughout the shell and avoid local hotspots. According to ISO 16750-3, the contact resistance changes by less than 0.1m Ω after 8 hours of random vibration at 30Hz~2,000Hz.
Power connector with custom pogo pins is no longer just a connector, but a balance between heat and force. They enable engineers to exclude overheating failures from high-risk levels in FMEA analysis. Johoty can help guests achieve a truly calm flow.
100A Truth in Life Test – Power Connector after 500,00 Plugs and Plugs
Reliability verification is the key to decision-making for European and American engineers. Johoty conducted 50,000 plug and unplug tests on the custom pogo pin connector, testing its performance every 5,000 times. The results showed that the contact resistance increased from the initial 20mΩ to 20.8mΩ, with an increase of only 4%. The temperature rise was maintained at 22±1.5°C without any mechanical fatigue or coating peeling.
Compared with traditional blade terminals, the contact resistance of the latter has increased to 1.6mΩ after 20,000 cycles, and some samples have undergone blackening corrosion. Johoty’s pogo pin connector can also withstand a current rise rate of 2A/ms. The short-term surge of 200A with a temperature rise of less than 10°C within 0.5 seconds fully meets the transient requirements of the battery fast charging and energy storage parallel system.
These verification results have passed UL 1059, IEC 60512, and GB/T 2423.56 tests. It also means that engineers can use it confidently in critical circuits without worrying about hidden thermal runaway risks.
Power connector with custom pogo pins for verifiable closed-loop design to mass production
Johoty’s R&D team often conducts FMEA analysis during the project design phase to identify potential failures. Including loose terminals, overheating, oxidation, misconnection, and failed locking. Johoty’s customized solution establishes a closed loop through the following methods:
At the structural level, a floating design is adopted to automatically compensate for assembly deviations, with a locking force of ≥25N to avoid virtual connections.
Thermal design aspect: Install thermistors and temperature monitoring points in the system to track temperature rise changes in real time.
Test verification level: Through temperature cycling of -40~125°C, 500 times, alternating humidity and heat of 40°C/95% RH, for 500 hours. The overcurrent stress is 150% of the rated current, and after a 4-hour test, the performance remains stable.
This closed loop enables the customer’s engineering manager and quality team to build DFMEA and PFMEA. Obtain supply chain traceability reports and provide complete documentation for UL and IEC audits. Johoty can help customers truly reduce the cost of system validation.
Customized design of power connector with pogo pins that can flexibly adapt to different applications
Different projects have different requirements for connectors:
- The electric vehicle charging module requires a high-temperature and arc-resistant structure.
- Energy storage systems focus on continuous current stability and easy maintenance.
- Industrial automation requires high-frequency plugging and anti-vibration.
- Medical equipment requires low contact resistance and long lifespan.

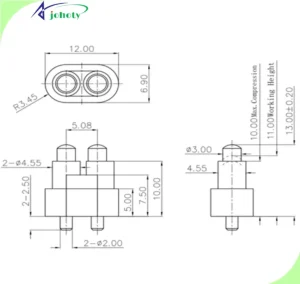

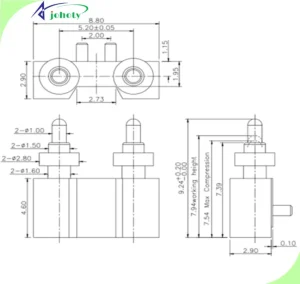

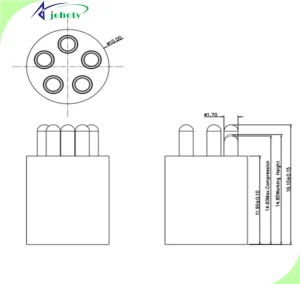

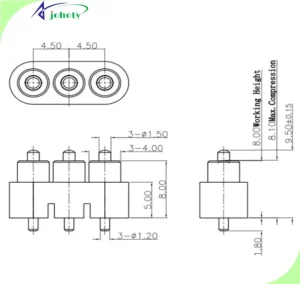

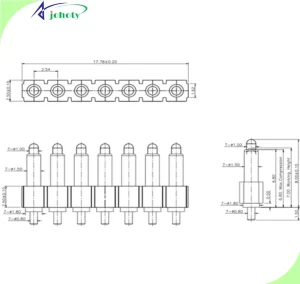

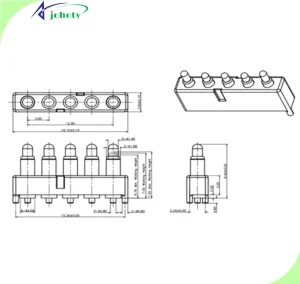

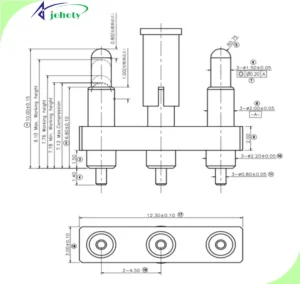

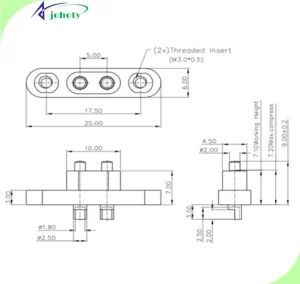

Johoty’s pogo pin connector typically has a barrel diameter of 1.50~15mm and a pogo pin count of 2~12pin. Spring force of 1.0~5.0N, flexible customization of coating materials such as Au, Pd, Ag, etc. Our power connector can adapt to different current levels from 30A to 200A.
With this flexibility, Johoty can help system architects no longer have to compromise on design for standard components. We can make connectors serve system security goals and build a modular architecture for the future.
Design Decision of Johoty’s Power Connector
Many of Johoty’s customer engineers prioritize data consistency and verifiability in their selection process. Johoty validated 200 sets of samples in a third-party accredited laboratory:
Temperature rise test: 100A continuous operation for 4 hours, with a maximum temperature of 63°C, far below the UL limit of 105°C.
Vibration test: X/Y/Z axis for 6 hours, contact resistance change ± 0.05mΩ.
Plug and unplug lifespan: After 50,000 cycles, the mechanical retention force decreases by less than 5%.
Salt spray test: After 100 hours, there are no oxidation black spots on the surface.
Overcurrent impact: 150A for 15 minutes, the coating is intact without detachment.
These data are all archived in traceable reports, and the engineering team can directly reference them in DFMEA, PPAP, and APQP documents. No need to waste time on review cycles anymore, allowing designers to focus their energy on system innovation rather than repetitive verification.
Conclusion: The true meaning of total peace is the trust of engineers in Johoty’s power connector
In high-power systems, no component can be ignored. A temperature rise at a contact point, a loosening, or a surface oxidation can all trigger a chain reaction. The significance of a power connector with custom pogo pins is to transmit 100A current, and more importantly, to enable the system to remain calm under pressure in a verifiable, predictable, and traceable manner. It is like a fully validated machine, allowing engineers to sleep happily and peacefully at night.
Johoty has provided you with data and solutions for the power connector. If you are facing the challenge of stable 100A transmission. Or if you need customized validation reports, metal surface treatment, thermal simulation models, and lifespan testing plans, immediately communicate with Johoty’s CFT team to build your own total peace power connector.
