How can high current connectors support 200A? Unlock the current transmission challenge in compact layouts of electric vehicles
High current connectors are becoming a key component in the EV architecture of next generation. When designers attempt to transmit currents exceeding 200A in extremely limited spaces, traditional connection methods appear inadequate. Heat accumulation, contact resistance fluctuations, mechanical stress damage, etc. are forcing engineering teams to re-examine the design limits of connectors.
At this node, Johoty’s high current connectors can be considered a savior. They provide a solution with triple characteristics of safe assembly, low heat performance, and high cycle life. A new standard has been redefined for small volume high-power transmission.
Challenge under Space Limitations: Why is 200A Current So Difficult to Carry?
In the design of electric vehicles, the wiring density between systems such as onboard charging, power distribution, and thermal management has reached its limit. In compact vehicles and platform based chassis, engineers are forced to complete high current transmission in a gap of less than 50mm. This means:
- Current carrying density per square millimeter has significantly increased.
- Thermal concentration effect between the conductor and the contact rapidly increases.
- Ability of air convection and natural cooling is extremely limited.
- High-voltage electrical clearance must be strictly controlled within the insulation limit range.
Therefore, high current connectors that operate stably under extreme heat conditions have become a decisive factor in reliability and safety.
How can high current connectors achieve low heat suppression at 200A?
To transmit a current of 200A without causing local overheating, the contact resistance of the connector must be controlled at the micro ohm level. Johoty’s high current connection scheme adopts a multi-point elastic contact structure, combined with gold-plated nickel alloy material. The measured data shows that:
- Contact resistance ≤0.35 mΩ.
- Under a continuous load of 200A, the surface temperature rise shall not exceed 30°C.
- Under high humidity conditions in a closed cabin, the resistance value changes by less than 2% after 96 hours.
- There is no structural deformation after thermal cycling test (-40°C~125°C, 1,000 times).
This is not a calculation result based on theoretical models, but rather feedback from complete sample level validation and customer testing reports.
Decisive role of materials: the delicate balance between high thermal conductivity copper and electroplated alloys
The key material for high current connectors must achieve a balance between conductivity, mechanical toughness, and corrosion resistance.
Johoty has chosen beryllium copper alloy as the main body, paired with a thick nickel plating and gold plating scheme. Under repeated insertion and thermal stress, the alloy layer will not crack. At the same time, its metal fatigue curve maintains good elasticity after 50,000 insertions and removals.
Compared to some low-cost solutions that use tin plating, this structure exhibits an extremely low slope of the temperature rise curve. Continuously and stably transmit 200A current on contact surfaces smaller than 4 square centimeters.
Safety feedback design of high current connectors in assembly
Traditional high current connectors often suffer from poor contact and even safety accidents due to incorrect insertion, misalignment, and excessive force during assembly. The 200A connector provided by Johoty was designed with the following real-world scenarios in mind:
- Adopting a stepped male female mating structure to achieve blind insertion alignment.
- After installation, it has a visual locking identifier to avoid false insertion status.
- The contact piece is equipped with a built-in limit spring to prevent damage to the conductor during insertion and removal.
- Control insertion and extraction force within 70-90N, suitable for single person operation.
- Support automated assembly of robotic arm clamping and alignment, with no risk of interface deviation.
These are not just product descriptions, but the results of repeated optimization in the actual testing of EV customer production lines.
Lifespan is not an abstract concept: 50,000+ cycles, measured resistance stability
For Johoty’s high current connectors, lifespan is a strong point. It’s not about how many years it has been used, but how many times it has undergone high current switching without experiencing performance degradation. Johoty’s measured data shows that:
- Under a load of 200A, after 50,000 insertions and removals, the increase in contact resistance is less than 7%.
- Passed all level requirements in the IEC standard test.
- After packaging, the connector can be placed continuously at 95% humidity and 35°C for 720 hours without any oxidation or corrosion marks on the metal surface.
- The ability to suppress electromagnetic interference has been tested and meets the CISPR standard.
Johoty’s high current connectors can actually be used for a 10-year cycle. Despite frequent charging and vibration, the connector performance can still maintain its original design intention.
Heat is the killer: Where is the heat dissipation path of high current connectors hidden?
The connector itself does not generate heat, and the heat comes from the resistor. At a current of 200A, even a 0.3mΩ resistor can accumulate 12W of heat. Johoty designed the following thermal control path:
- Signal power separation contact position reduces core heat source density.
- The metal shell and PCB thermal conductive copper pillar form a natural heat convection channel.
- Full structure modeling and simulation, controlling the thermal spot not to be concentrated at the center of the contact point.
- Introducing epoxy thermal conductive colloid to synchronously conduct thermal energy in mechanical fixation.
This type of thermal management structure is essential for highly reliable electric platforms and enclosed control units with minimal installation space.
How should high current connectors face EV standardization?
From ISO 17409 to GB/T 20234, and then to SAE J1772. The size, spacing, and safety strategies of high current connectors are becoming increasingly stringent. Johoty’s design:
- Meet the insulation protection level requirements of DIN EN for non fixed connectors.
- The shell has a mechanical impact resistance rating of ≥ IK08.
- The entire series of connectors have passed UL certification.
- Meets IP68 waterproof rating and is suitable for EV chassis installation scenarios.
This is not chasing authentication labels. It provides a worry free compliance pass for regulatory inspections, overseas standard inspections, and mass production loading in reality.
High current connectors are not only connections, but also core components
A high current connector is not just an electrical component, it affects the overall vehicle platform strategy:
- Can chassis integration be achieved? The volume of high current pogo pins determines the wiring method.
- Does it support quick battery swapping? The lifespan and speed of high current connectors are crucial.
- Can we unify the interface? Whether high current connectors support multipole combination and modular assembly determines the compatibility of subsequent platforms.

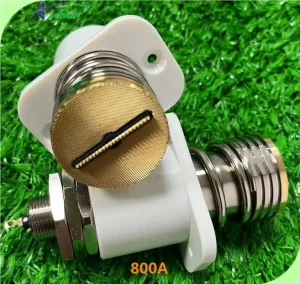

Johoty provides modular high current connectors. Scalable to 600A~800A, truly allowing one connected system to adapt to multiple power platforms. Customers do not need to redevelop each project separately.
Core value of high current connectors lies in their predictable reliability
Reliability refers to the consistency of a connector’s behavior throughout its entire lifecycle, rather than its outstanding performance at any given moment. Johoty’s high current connectors achieve high consistency across three dimensions: thermal, electrical, and mechanical
- Tolerance range for accidental insertion is less than 0.25mm.
- Insertion force error is controlled within ± 5N.
- Fluctuation of thermal resistance parameters is less than 4.5%.
- EMC leakage level has always been below the industry average of 40%.
Regardless of whether the customer deploys in winter in Germany, summer in California, or humid environments in Southeast Asia, the performance of the connector can be within expectations. The stable performance of each connector is the result of Johoty’s years of accumulated process and engineering review. We understand our clients’ concerns when facing high current, high density, and small space requirements. We also know that customers do not need complex terminology and exaggerated selling points. Just need a plan that can work for 10 years without any problems.
high current connectors, It is the safety anchor point for customers in the electric age
high current connectors, it’s not just a product composed of a set of parameters. They are also effective infrastructure that supports the operation of high-power platforms. We do not take low cost as the starting point, but build connections with a systematic thinking of moving faults to zero.
Johoty focuses on high current, miniaturization, and modular connectivity solutions. We do not make useless displays or advertise, we only provide reliable answers to those who truly care about long-term reliability. Contact us to make high current connectors the most secure part of your platform design starting today.
