High Frequency Pogo Pins Deliver Stable High-Speed Contact at Scale. 0.05dB Loss. Zero Interference. View Performance Metrics, and Trusted Results.
Introduction: silent victory of a connection determines the success or failure of a high frequency system

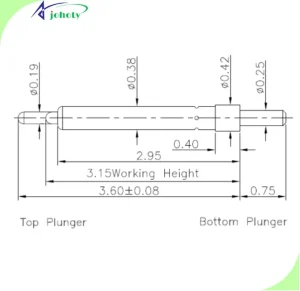

High frequency pogo pins are often inquired about by R&D engineers in Europe and America. They know that in a gigabit speed signal system, errors are not occasional but catastrophic. You may have already made perfect designs for system architecture, frequency control, and electromagnetic compatibility. But if the mechanical connection at the end of the signal chain is unstable, everything will go down the drain. At this point, high frequency pogo pins are no longer a connecting device. But it is a crucial organ that must possess ultimate performance.
Johoty’s R&D team has spent over ten years researching the traditional technology of pogo pins. Push it to carry 10 GHz signals with a loss of less than 0.05 dB and crosstalk approaching zero. Today, we will explain every detail of the high frequency pogo pins. How do they serve the real pain points of top manufacturers in high-frequency, high-reliability, and high-density design?
Why do traditional connections inevitably fail in signals above 10GHz?
When the system enters above 10GHz, the essential problems of the traditional SMT needle holder and COAX spring structure are exposed. The connection point is no longer a mechanical problem, but a frontline of electromagnetic behavior.
- In this frequency band, any micrometer level offset between pins may cause:
- The capacitive coupling effect sharply increases, causing crosstalk to rise above -30dB.
- Insertion loss exceeding 0.2 dB directly leads to the collapse of the eye diagram.
- The return loss exceeds -10 dB, causing the matching network to fail.
- High frequency current routing cannot enter the center pin, resulting in a complete breakdown of signal integrity.
Johoty team assisted guests in testing traditional spring needles in an EMI darkroom. Shielding with PCB ground via still cannot meet connections above 28GHz. And high frequency pogo pins were never intended to enhance mechanical elasticity from the beginning. But rather to reconstruct the matching of high frequency electromagnetic environment.
Engineering Logic of High Frequency Pogo Pins

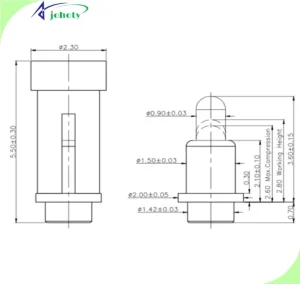

Johoty’s high frequency pogo pins are not the traditional evolution of spring loaded pin. But it is a precision impedance controllable probe system optimized for structures below 40GHz. Its core structure includes the following five key elements:
controlled impedance：

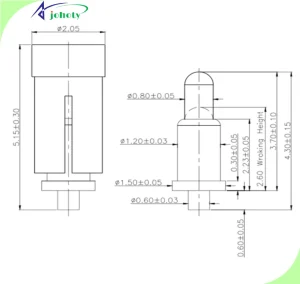

All Johoty’s high frequency pogo pins are based on pseudo coaxial design. Each signal pin is surrounded by a ground ring pin on the outside. It is strictly aligned with the PCB ground plane to be controlled within 50Ω± 5%.
We used TDR to test the impedance of each pin, and there were no reflection breakpoints within the range of 15-25ps. The existence of each pogo pin connector does not change the distribution of system S parameters.
| Frequency | Johoty pogo pin IL (dB) | return loss (dB) |
|---|---|---|
| 10 GHz | 0.015 | -28.2 |
| 20 GHz | 0.027 | -25.1 |
| 28 GHz | 0.045 | -22.3 |
| 40 GHz | 0.072 | -19.4 |

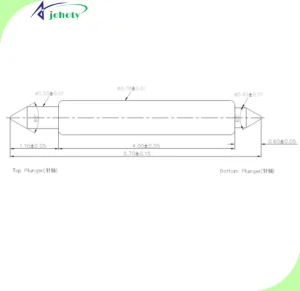

Microwave reflector cone design:
Johoty has performed a sloping folding treatment on the head contact end of the pogo pin. High frequency waveforms do not form eddy currents when in contact. This processing method further outperforms traditional needle type pins in terms of return loss.

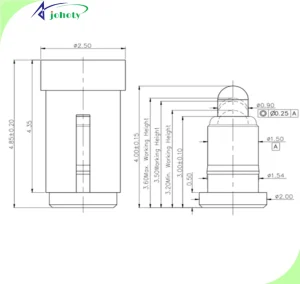

Multi point contact + axial self-adjusting design:
We always demand to prevent critical point disconnection caused by vibration and micro eccentricity. Our high frequency pogo pins use multi sided self-adjusting guide plates with 3 or more points. Unlike the old-fashioned needle design, it can still maintain center alignment within a deviation of 0.05 mm in both vertical and horizontal directions. In automated probe stations, high frequency module testing, and frequent connections, signal integrity will not deteriorate.

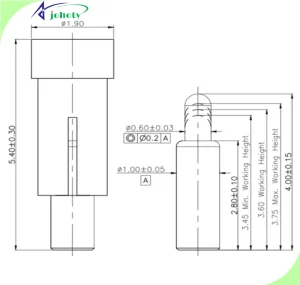

EMI local shielding:
An independent ground pin and metal shielding shell are used outside the signal pin. Form a micro farm cage to shield lateral crosstalk at the structural level. Through this design, the crosstalk value of Johoty’s high frequency pogo pin connector reached -46.7 dB at 28 GHz. And, we always take the measurement at 0.80mm from adjacent signal pins.

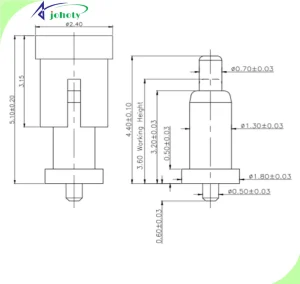

Ultimate application of materials science:
All contact components are plated with 0.1μm thick gold (Au)+palladium nickel alloy layer. In X-ray inspection, the integrity of the coating at each contact point reaches over 98%, and micro cracking or peeling is extremely rare. Ensure:
- Contact resistance remains stable at ≤30mΩ.
- Change within 100,000 cycles of insertion and removal is less than 3%.
- Working temperature range is -40°C to +125°C, and we can ignore the thermal expansion coefficient.
Johoty has resolved the scenario that the customer cannot tolerate
Many customers conduct millimeter wave module testing, RF front-end, 5G PA, and even optical communication modules. There are always several intolerable pitfalls in high-frequency connections:
Signal jitter in probe test is too large:
Engineer feedback: The frequency response diagram of the test module shows severe shaking of s21, suspecting chip mismatch. After switching to the Johoty pogo pins, the waveform stabilized, only to discover that the problem was with the connector.
Batch performance differences in automated module testing:
Procurement feedback: The impedance of different batches of spring loaded pins from another brand is inconsistent, resulting in inconsistent data between testing stations. Johoty’s batch difference control is below ±2.7%, fully meeting consistency requirements of auto line production.
Repair rate of RF modules in mass production has increased due to pin failure:
Feedback from the operations manager: Traditional connectors are affected by connection wear and tear, resulting in an abnormal increase in reflection parameters after more than 2,000 cycles. Johoty high frequency pogo pins support 100,000 connections while maintaining performance. The reliability test report is complete.
Different application data of High Frequency Pogo Pins
Test feedback from different customers of Johoty:
| Applications | Original Connectors | Improvement after using Johoty High Frequency Pogo Pins |
|---|---|---|
| 5G antenna module probe testing | SMA spring pins | The insertion loss decreased from 0.11 dB to 0.032 dB, average testing speed increased by 21% |
| Communication base station PA test | Traditional mechanical pin | Crosstalk reduced by 13 dB, rejection rate decreased from 3.4% to 0.7% |
| High speed optical module | LC cable + probe conversion | Insertion loss reduced by 41%, reflectance improved by 12%, and test pattern uniformity significantly enhanced |
These are the accumulation of a large number of precision processes and full process quality tracking. Each high frequency pogo pin has tracable infomation and test record.
Why choose Johoty instead of a traditional connector factory?
Johoty is not a traditional connector company that sells standard components. We are a system solution provider specializing in GHz level high-frequency connection design, starting from probes.
Our high frequency pogo pins are not about grabbing the market with cheap prices. But it relies on signal integrity and connection consistency to win the technical trust of the R&D and testing ends.
We understand why you changed the connector. It’s because your customers are more demanding, high-frequency, and precise. And we are the partner who can confidently test mass production with just one connection.
Conclusion: Stable high-frequency connections are Johoty’s system engineering
When we talk about an excellent connector, the real meaning is not just that it can be connected. But rather:
- No distortion at 40GHz.
- Without deformation after 100,000 connections.
- No crosstalk under millisecond level frequency switching.
- Maintain parameter stability across multiple production sites.
The high frequency pogo pins prepared by Johoty for you are not a product. It is a complete system engineering. We use structural design, materials science, microwave simulation, batch consistency, and failure analysis. Build a reliable connection solution for you.
If you need a connection solution that meets mass production, stability, traceability, and high frequency requirements. Welcome to contact Johoty’s CFT team directly, we cannot discuss the possibility. Only provide authentic high frequency pogo pins that you can verify.
