IC Pogo Pins! Double End Test Probes Solution Provider, Manufacturer, and Exporter In China, Johoty Welcomes You!
IC pogo pins, for testing IC chips of BGA, QFN, PGA, LGA, DIP, SOP, SOIC, QFP, CQFP, PLCC, MFP, SOT, TO, SOJ. double-end double-move, pairing two ends among plunger tips of ball, dome, flat, sharp, crown, and cup based on actual applications. Customize or propose the shapes, sizes, dimensions, rating voltage/current, contact resistance, raw materials, etc. Welcome to customization!
Catalogs of IC Pogo Pins:
What Benefits to Customer?
Helping customer solve static connection problems between various IC chips and PCBs.
Help customer solve the problems of
higher accuracy and lower cost of chip testing.
Help customers realize the purpose of ensuring that the devices can fully realize the specified functions and performance indexes under harsh environments.
Help customers to accurately check out manufacturing defects and bad components without potential risks of failure or NDF.
Help customers solve problems in high current testing, high frequency, high-speed transmission, high accuracy, stable contact, and durability.
Our special CFT team fully supports you by leading the whole manufacturing, quality, logistics, customs, etc.
Features of Our IC Pogo Pins
As a high-end precision electronic hardware, IC pogo pins plating is wear-resistant and maintain stable resistance and excellent contact conductivity,
Increase hardness and toughness by heat treatment,
The barrel has a small tolerance and high hardness, the spring has good fatigue resistance,
High adhesion of the plating, good wear resistance, durability.
Our finished IC pogo pins have no shaking and are very smooth sliding,
Small tolerance, good gloss, meet the requirements of RHOS, REACH, H/F.
Realization of precise connection between chip pin solder balls and testers, to realize signal transmission and detect the performance indexes of IC such as conduction, current, function and aging.
The shapes of IC pogo pins vary from application to application, but basically, there is a precision spring structure inside,
And the surface of each sub-part is usually plated with gold, palladium, platinum, etc,
Its structural design, material, and elasticity, all have an impact on the stability, and the accuracy of signal conduction, which affect the accuracy of whole the test.
Helps detect failures early to minimize unnecessary waste，
Get more meaningful test data, provides useful information to customer R&D and Manufacturiing,
Effectively analyze FMEA and improve the yields of design and manufacturing.
Based on our IC pogo pins features, it can significantly reduce the cost, save time.

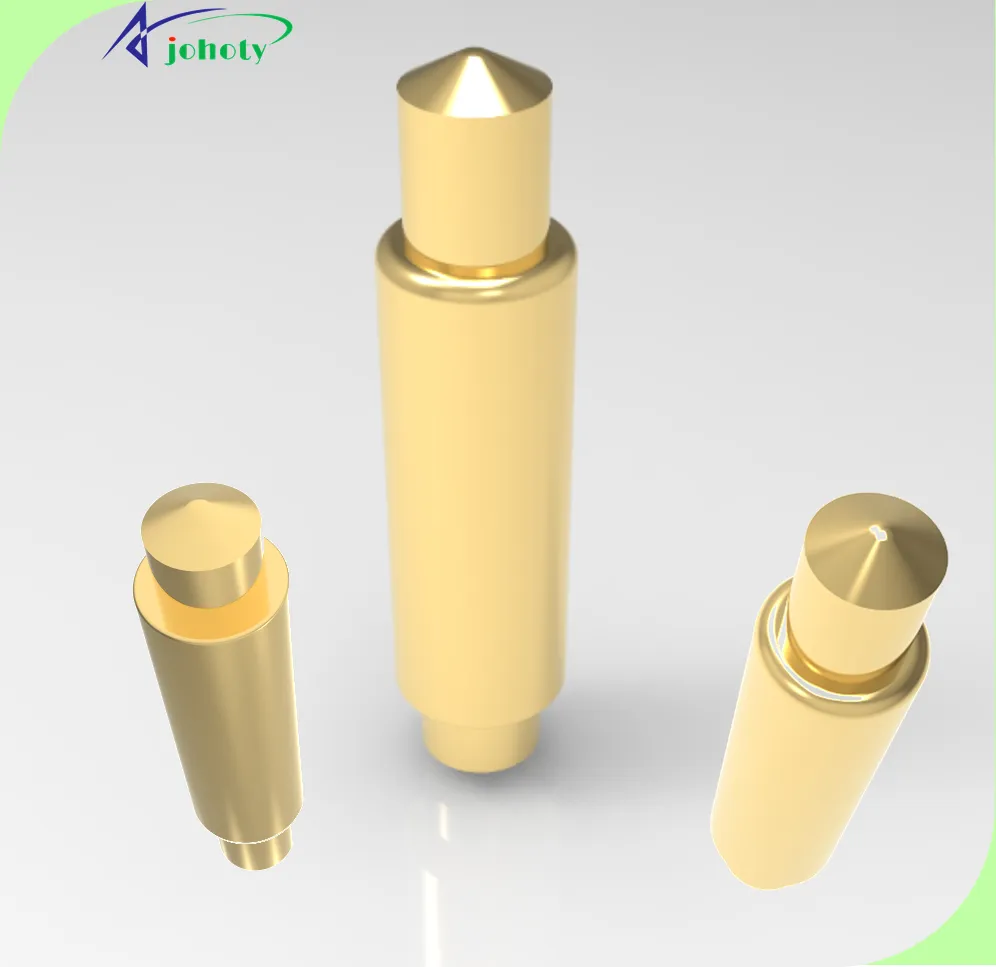

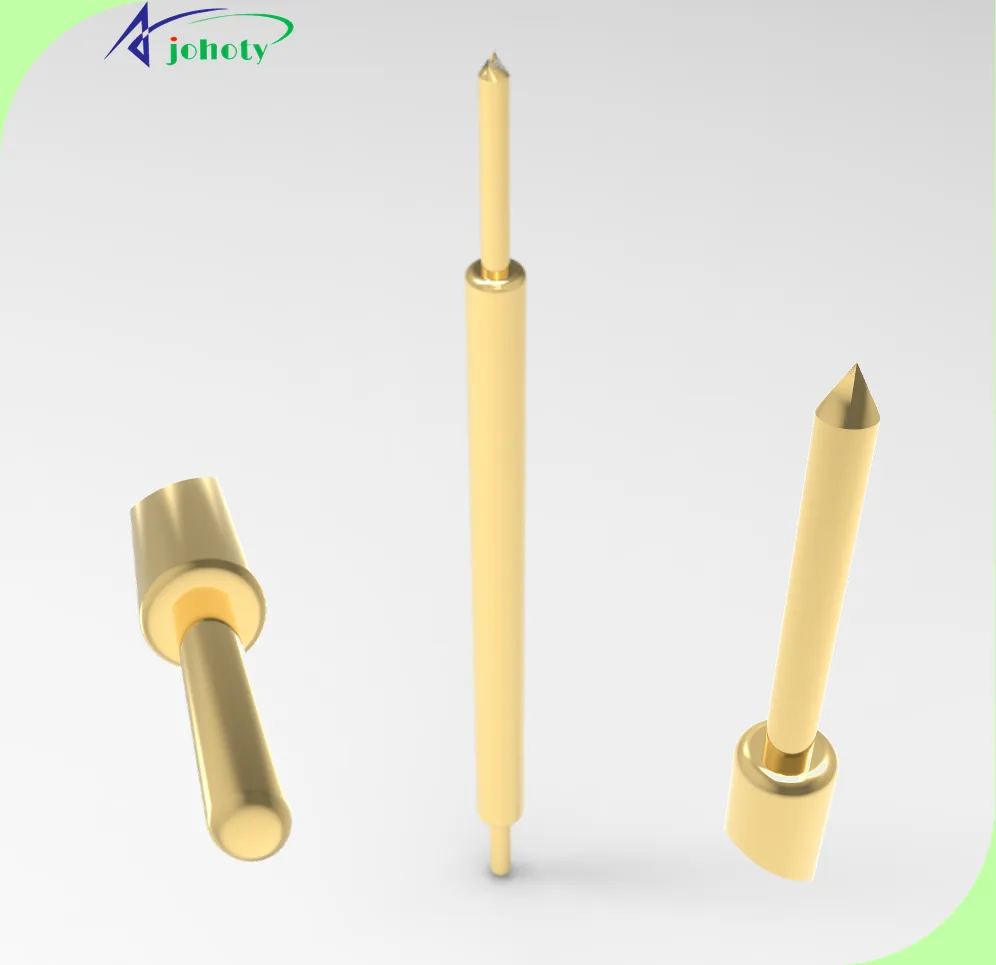

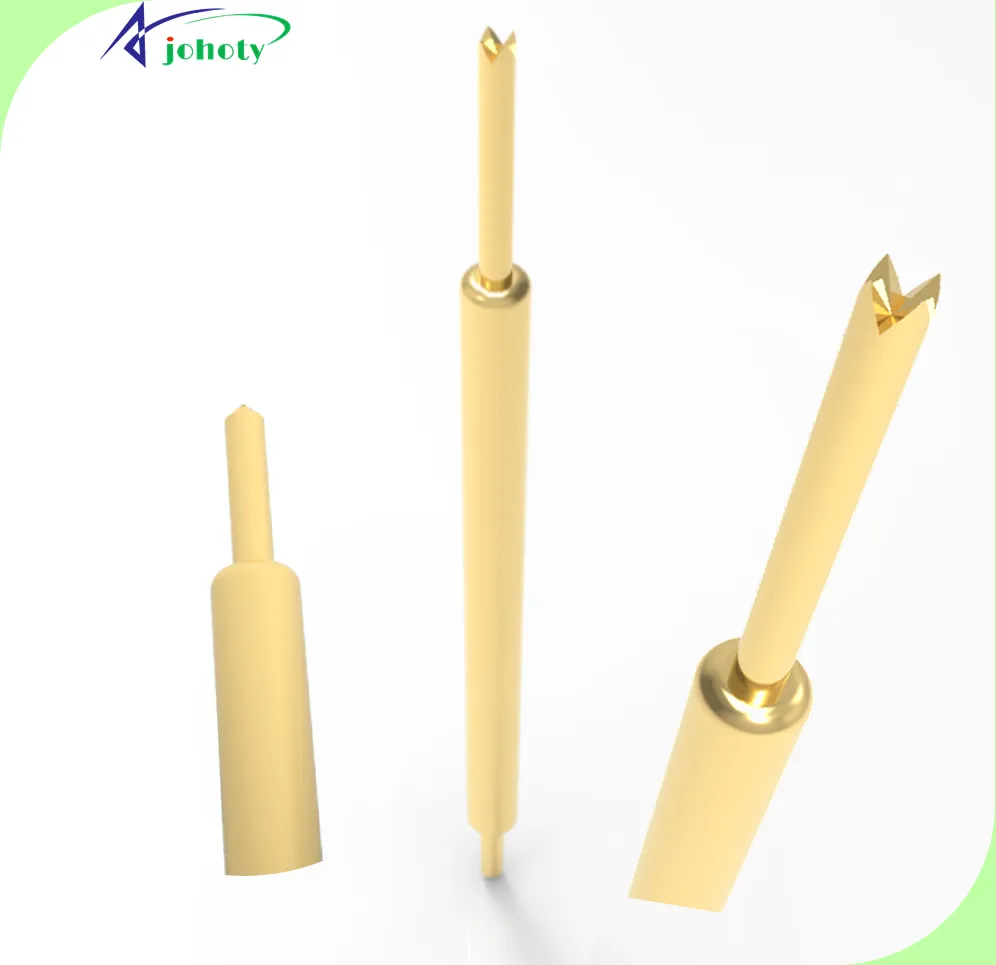

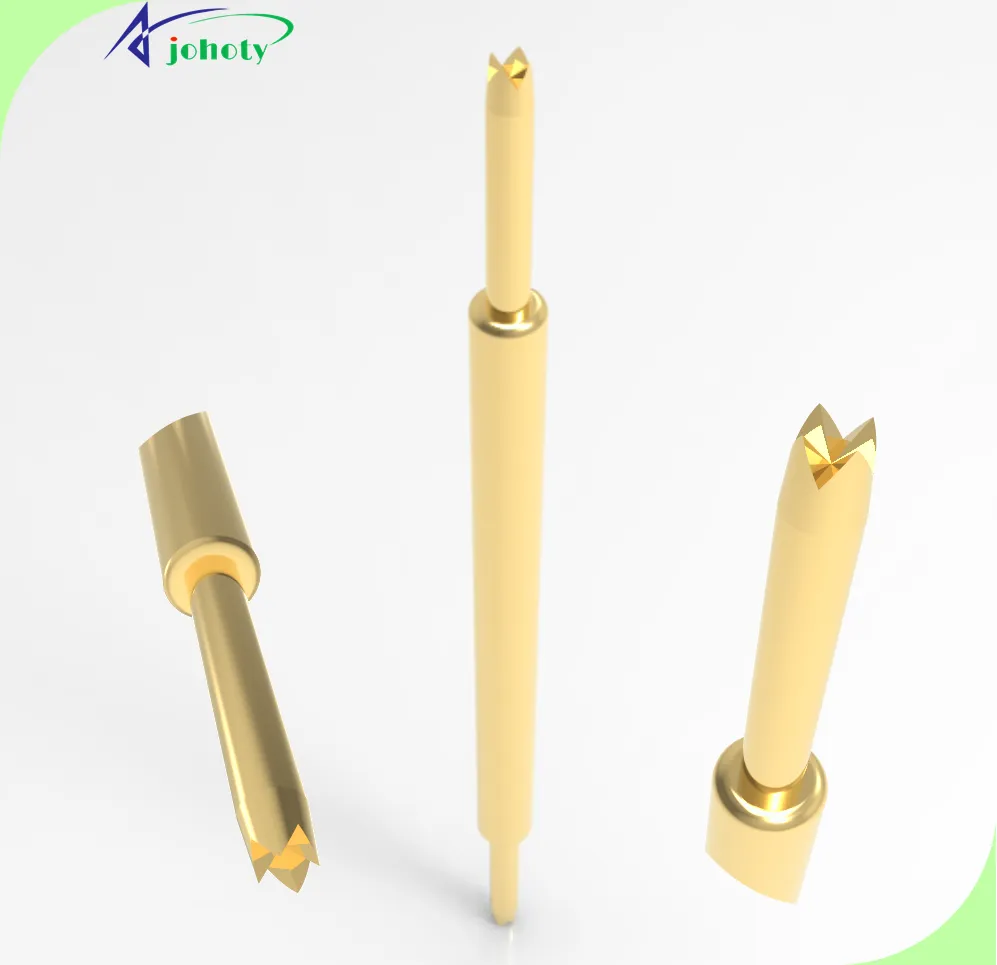

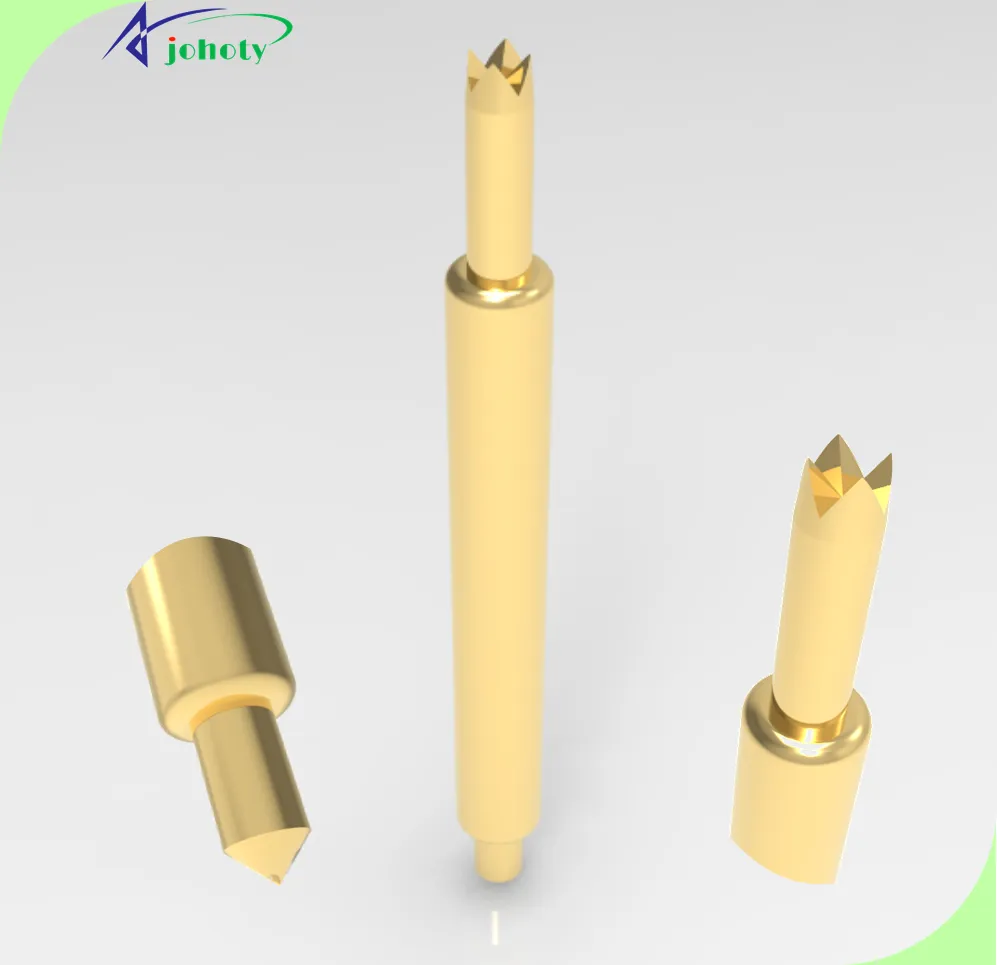

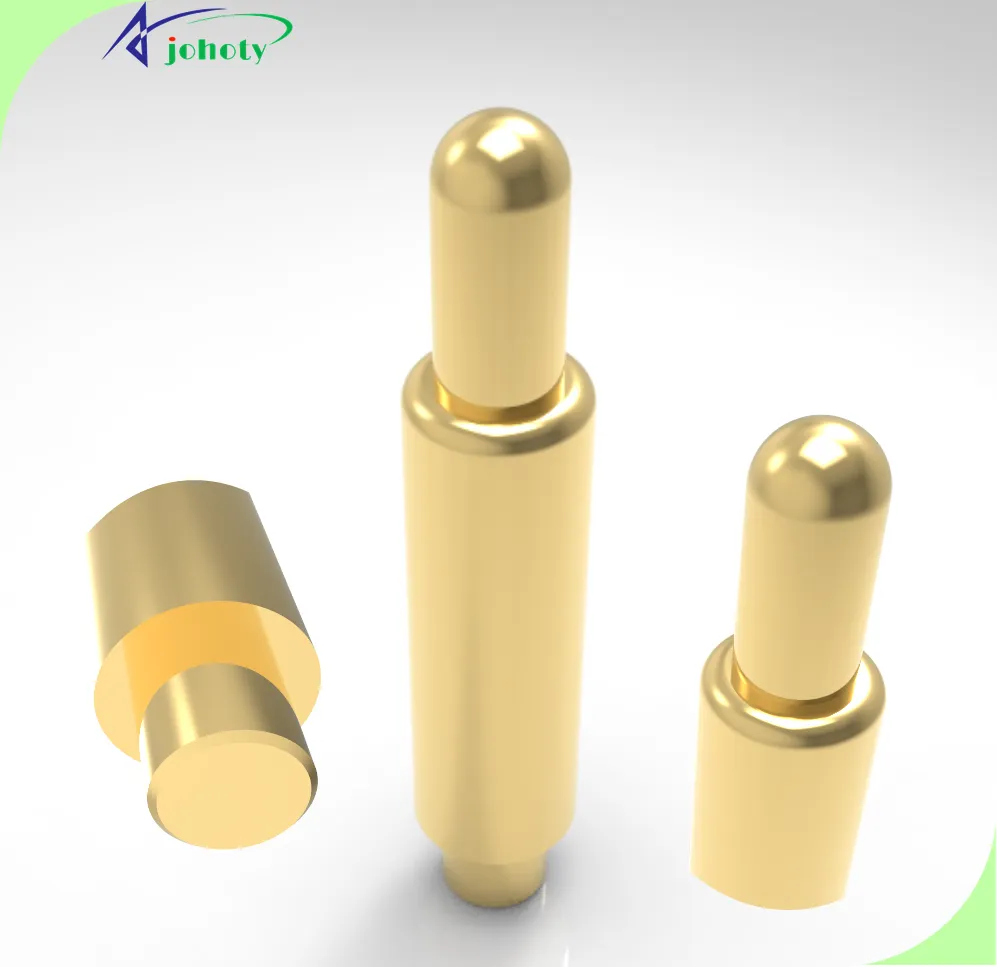

Shapes: ball+ball, ball+dome, ball+flat, ball+sharp, crown+ball, crown+crown, crown+dome, crown+flat, crown+sharp, cup+sharp, dome+sharp, Flat+Flat, sharp+flat, sharp+sharp,
Length(mm): 3.4, 4.35, 4.5, 5.7, 6.0, 6.1, 7.0, 7.6, 7.8, 8.1, 8.63, 8.85, 9.63, 9.85, 11.0, 11.8, 12.0, 12.4, 12.8, 12.9, 13.2, 13.7, 14.5, 16, 16.4, 17.0, 17.87, 18.0, 19.0, 19.37, 19.8, 21.05, 21.5, 22.3, 22.7, 23.0, 23.68, 23.9, 24.15, 26.0, 26.77, 27.0, 28.0, 29.5, custom.
Stroke(mm): 0.55, 0.7, 0.8, 0.95, 1.0, 1.2, 1.3, 1.5, 1.6, 1.8, 2.0, 2.2, 2.4, 2.5, 2.6, 2.8, 3.0, 3.3, 3.5, 3.7, 4.0, 4.2, 4.4, 4.5, 5.0, 5.5, 6.5, custom,
Plunger OD(mm): 0.13+0.13, 0.16+0.12, 0.16+0.16, 0.19+0.25, 0.21+0.21, 0.28+0.28, 0.30+0.30, 0.34+0.34, 0.35+0.30, 0.38+0.36, 0.38+0.38, 0.38+0.61, 0.40+0.30, 0.40+0.36, 0.40+0.40, 0.50+0.36, 0.50+0.45, 0.50+0.50, 0.55+0.46, 0.55+0.50, 0.59+0.59, 0.60+0.60, 0.65+0.50, 0.65+0.65, 0.67+0.67, 0.70+0.60, 0.70+0.70, 0.77+0.65, 0.80+0.80, 0.85+0.67, 1.00+1.00, 1.00+1.55, 1.30+1.02, 2.50+2.50, custom,
Barrel OD(mm): 0.12, 0.26, 0.28, 0.31, 0.38, 0.45, 0.51, 0.58, 0.62, 0.67, 0.75, 0.78, 0.8, 0.81, 0.84, 0.85, 0.85, 0.9, 0.95, 1, 1.01, 1.02, 1.05, 1.08, 1.1, 1.15, 1.2, 1.3, 1.36, 1.37, 1.5, 1.55, 1.7, 2.5, 3.5, custom,
Rating Voltage(V): 6, 12, custom,
Rating Current(A): 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, custom,
Spring Force(gf): 15, 20, 22, 25, 30, 35, 40, 41, 45, 50, 55, 60, 65, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 210, 220, 230, 240, 250, 260, 270, custom,
Raw Materials: BeCu, Brass, C17300, Sk4, Sk4+BeCu, W, G4, Palladium Alloy, custom,
We enable high current, high frequency, high-speed signals, high precision contact and test, cost savings and no waste of materials, long service life.
Advantages of our IC Pogo Pins
Ensure the quality of our customers’ R&D, effectively shorten the R&D time, reduce the cost of projects, reduce the cost of our customers’ device production process, which have more reliable and time-saving advantages,
Our IC pogo pins can be widely used in IC test sockets, burn-in sockets, aging sockets, test fixtures, DDR/Flash test sockets, HAST test sockets, aging boards, automotive aging sockets, and so on.
| Part Number | Plunger Tip | Length (mm) | Stroke (mm) | Plunger OD (mm) | Barrel OD (mm) | Voltage (V) | Current (A) | Spring Force (gf) | Materials |
|---|---|---|---|---|---|---|---|---|---|
| APC0401-41705 | ball+ball | 4.5 | 1.2 | 0.40, 0.40 | 0.62 | 12 | 1 | 60 | BeCu |
| APC0401-41678 | ball+ball | 5.7 | 1 | 0.16, 0.16 | 0.31 | 12 | 0.5 | 20 | Sk4 |
| APC0401-41748 | ball+ball | 6.1 | 1.6 | 0.50, 0.50 | 0.85 | * | 2 | 22 | BeCu |
| APC0401-41754 | ball+ball | 6.1 | 1.6 | 0.50, 0.50 | 0.85 | * | 2 | 35 | BeCu |
| APC0401-39091 | ball+ball | 7.6 | 1.3 | 0.59, 0.59 | 1 | 12 | 3 | 25 | BeCu |
| APC0401-35240 | ball+ball | 11 | 1.5 | 0.80, 0.80 | 1.3 | 12 | 2 | 35 | BeCu |
| APC0401-41759 | ball+ball | 12.8 | 4 | 0.50, 0.50 | 0.85 | * | 4 | 35 | BeCu |
| APC0401-41765 | ball+ball | 13.2 | 2.2 | 0.85/0.67, 0.67 | 0.85 | * | 1 | 50 | BeCu |
| APC0401-41770 | ball+ball | 13.7 | 3 | 0.50, 0.50 | 0.9 | * | 2 | 45 | BeCu |
| APC0401-41846 | ball+ball | 19 | 5 | 0.60, 0.60 | 1.2 | * | 2 | 35 | BeCu |
| APC0401-39955 | ball+ball | 19.37 | 3.3 | 2.50, 2.50 | 3.5 | 12 | 1 | 60 | BeCu |
| APC0401-41727 | ball+ball | 21.5 | 1.5 | 0.50, 0.50 | 0.78 | * | 1 | 35 | BeCu |
| APC0401-33700 | ball+ball | 23.68 | 0.8 | 0.30, 0.30 | 0.95 | 12 | 1 | 2.2-2.7N | BeCu |
| APC0401-39595 | ball+ball | 23.68 | 0.8 | 0.40, 0.30 | 0.95 | 12 | 1 | 2.1N | BeCu |
| APC0401-41819 | ball+ball | 24.15 | 2.5 | 0.65, 0.65 | 1.15/1.08 | * | 3 | 40 | BeCu |
| APC0401-35086 | ball+ball | 26.77 | 0.8 | 0.35, 0.30 | 1.05 | 12 | 1 | 1.7N | BeCu |
| APC0401-35093 | ball+ball | 26.77 | 0.8 | 0.35, 0.30 | 1.05 | 12 | 1 | 1.4-1.7N | BeCu |
| APC0401-35079 | ball+ball | 26.77 | 0.8 | 0.35, 0.30 | 1.05 | 12 | 1 | 1.4-1.7N | BeCu |
| APC0401-41873 | ball+dome | 12.4 | 3.5 | 1.00, 1.00 | 1.7 | * | 2 | 60 | BeCu |
| APC0401-41683 | ball+flat | 4.35 | 0.55 | 0.19, 0.25 | 0.38 | 12 | 1 | 35 | C17300 |
| APC0401-41537 | ball+sharp | 5.7 | 0.95 | 0.50, 0.50 | 0.84 | 12 | 2 | 40 | BeCu |
| APC0401-41608 | ball+sharp | 5.7 | 1 | 0.50, 0.50 | 0.85 | 12 | 1 | 35 | BeCu |
| APC0401-41624 | ball+sharp | 5.7 | 1 | 0.13, 0.13 | 0.28 | 12 | 1 | 25 | BeCu |
| APC0401-41613 | ball+sharp | 8.1 | 1 | 1.00, 1.00 | 0.85 | 12 | 1 | 35 | Brass |
| APC0401-40395 | ball+sharp | 8.1 | 2.8 | 1.00, 1.00 | 1.5 | 12 | 1 | 45 | BeCu |
| APC0401-41786 | ball+sharp | 8.63 | 1.8 | 0.60, 0.60 | 0.95 | * | 5 | 35 | BeCu |
| APC0401-41592 | crown_ball | 5.7 | 1 | 0.16/0.12, 0.12 | 0.26 | 12 | 0.5 | 15 | BeCu |
| APC0401-41673 | crown+ball | 5.7 | 1 | 0.16, 0.12 | 0.12 | 12 | 0.5 | 15 | BeCu |
| APC0401-41797 | crown+ball | 26 | 5 | 0.60, 0.60 | 1 | * | 1 | 35 | BeCu |
| APC0401-41635 | crown+crown | 7.8 | 1 | 0.21, 0.21 | 0.38 | 12 | 1 | 35 | BeCu |
| APC0401-41813 | crown+crown | 12.8 | 2 | 0.67, 0.67 | 1.01 | * | 1 | 20 | BeCu |
| APC0401-41878 | crown+dome | 12.4 | 3.5 | 1.00, 1.00 | 1.7 | * | 2 | 60 | BeCu |
| APC0401-41954 | crown+flat | 23.9 | 3.7 | 0.50, 0.36 | 0.78 | * | 3 | 60 | BeCu |
| APC0401-41743 | crown+sharp | 3.4 | 0.7 | 0.60, 0.60 | 0.81 | * | 2 | 40 | BeCu |
| APC0401-41640 | crown+sharp | 5.7 | 1 | 0.30, 0.30 | 0.51 | 12 | 1 | 35 | BeCu |
| APC0401-41792 | crown+sharp | 8.63 | 1.6 | 0.65, 0.65 | 0.95 | * | 3 | 70 | BeCu |
| APC0401-41802 | crown+sharp | 11.8 | 2.5 | 0.77, 0.65 | 1 | * | 1 | 100 | BeCu |
| APC0401-41862 | cup+sharp | 28 | 5.5 | 1.30/1.02, 1.02 | 1.37 | * | 3 | 120 | BeCu |
| APC0401-41646 | dome+sharp | 6 | 1 | 0.80, 0.80 | 1.2 | 12 | 1 | 55 | Brass |
| APC0401-39947 | Flat+Flat | 19.37 | 3.3 | 2.50, 2.50 | 3.5 | 12 | 1 | 60 | BeCu |
| APC0401-41629 | sharp+ball | 5.7 | 1 | 0.13, 0.13 | 0.28 | 12 | 1 | 25 | BeCu |
| APC0401-41689 | sharp+ball | 7 | 1.5 | 0.30, 0.30 | 0.58 | * | 1 | 25 | BeCu |
| APC0401-41781 | sharp+ball | 9.63 | 2.5 | 0.60, 0.60 | 0.95 | * | 5 | 30 | BeCu |
| APC0401-41808 | sharp+ball | 12 | 2.4 | 0.65, 0.50 | 1.01 | 12 | 1 | 40 | BeCu |
| APC0401-41597 | sharp+crown | 5.7 | 1 | 0.13, 0.13 | 0.28 | 12 | 1 | 25 | BeCu |
| APC0401-41602 | sharp+crown | 7 | 1.6 | 0.40, 0.40 | 0.75 | 12 | 1 | 41 | BeCu |
| APC0401-41867 | sharp+flat | 12.9 | 4.2 | 1.00, 1.55 | 1.5 | * | 4 | 120 | BeCu |
| APC0401-41889 | sharp+flat | 19.8 | 3.5 | 0.38, 0.61 | 0.62 | * | 2 | 80 | BeCu |
| APC0401-41884 | sharp+flat | 21.05 | 3.5 | 0.38, 0.38 | 0.62 | * | 2 | 60 | BeCu |
| APC0401-41895 | sharp+flat | 22.7 | 3.5 | 0.38, 0.36 | 0.62 | * | 2 | 100 | BeCu |
| APC0401-41900 | sharp+flat | 23 | 3.5 | 0.40, 0.36 | 0.62 | * | 1.5 | 80 | BeCu |
| APC0401-41938 | sharp+flat | 23.9 | 3.7 | 0.50, 0.36 | 0.78 | * | 3 | 130 | BeCu |
| APC0401-41943 | sharp+flat | 23.9 | 3.7 | 0.50, 0.36 | 0.78 | * | 3 | 80 | BeCu |
| APC0401-41949 | sharp+flat | 23.9 | 3.7 | 0.50, 0.36 | 0.78 | * | 3 | 130 | BeCu |
| APC0401-41694 | sharp+flat | 27 | 5.5 | 0.34, 0.34 | 0.58 | * | 3 | 70 | BeCu |
| APC0401-41710 | sharp+sharp | 5.7 | 1.2 | 0.50, 0.45 | 0.78 | * | 1 | 30 | BeCu |
| APC0401-41775 | sharp+sharp | 8.63 | 1.6 | 0.65, 0.65 | 0.95 | * | 3 | 70 | BeCu |
| APC0401-41716 | sharp+sharp | 8.85 | 1.5 | 0.55, 0.50 | 0.78 | * | 2 | 35 | BeCu |
| APC0401-41721 | sharp+sharp | 9.85 | 3 | 0.55, 0.46 | 0.78 | * | 3 | 35 | BeCu |
| APC0401-41824 | sharp+sharp | 14.5 | 3.7 | 0.70, 0.70 | 1.1 | * | 4 | 65 | BeCu |
| APC0401-41830 | sharp+sharp | 16 | 3.7 | 0.70, 0.70 | 1.1 | * | 4 | 65 | BeCu |
| APC0401-41619 | sharp+sharp | 16.4 | 4.5 | 2.50, 2.50 | 3.5 | 12 | 1 | 110 | Brass |
| APC0401-41835 | sharp+sharp | 17 | 3.7 | 0.70, 0.70 | 1.1 | * | 4 | 70 | BeCu |
| APC0401-39851 | sharp+sharp | 17.87 | 4 | 2.50, 2.50 | 3.5 | 12 | 1 | 160 | BeCu |
| APC0401-40443 | sharp+sharp | 17.87 | 4 | 2.50, 2.50 | 3.5 | 6 | 2 | 90 | BeCu |
| APC0401-39859 | sharp+sharp | 17.87 | 4.4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-40451 | sharp+sharp | 17.87 | 4.4 | 2.50, 2.50 | 3.5 | 6 | 2 | 90 | BeCu |
| APC0401-40459 | sharp+sharp | 17.87 | 4.4 | 2.50, 2.50 | 3.5 | 6 | 2 | 90 | BeCu |
| APC0401-40467 | sharp+sharp | 17.87 | 4.4 | 2.50, 2.50 | 3.5 | 6 | 2 | 90 | BeCu |
| APC0401-41651 | sharp+sharp | 18 | 4.5 | 2.50, 2.50 | 3.5 | 12 | 1 | 180 | Brass |
| APC0401-39835 | sharp+sharp | 19.37 | 4 | 2.50, 2.50 | 3.5 | 12 | 1 | 160 | BeCu |
| APC0401-39971 | sharp+sharp | 19.37 | 4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-39987 | sharp+sharp | 19.37 | 4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-39995 | sharp+sharp | 19.37 | 4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-39843 | sharp+sharp | 19.37 | 4.4 | 2.50, 2.50 | 3.5 | 12 | 1 | 160 | BeCu |
| APC0401-39963 | sharp+sharp | 19.37 | 4.4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-39979 | sharp+sharp | 19.37 | 4.4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-40003 | sharp+sharp | 19.37 | 4.4 | 2.50, 2.50 | 3.5 | 12 | 1 | 100 | BeCu |
| APC0401-41840 | sharp+sharp | 22.3 | 3 | 0.70, 0.60 | 1.1 | * | 1 | 40 | BeCu |
| APC0401-41532 | sharp+sharp | 26 | 2.6 | 0.28, 0.28 | 0.45 | 12 | 2 | 100 | Sk4, BeCu |
| APC0401-41732 | sharp+sharp | 26 | 5 | 0.50, 0.50 | 0.78 | * | 3 | 70 | BeCu |
| APC0401-41851 | sharp+sharp | 26 | 5 | 0.80, 0.80 | 1.36 | * | 1 | 100 | BeCu |
| APC0401-41857 | sharp+sharp | 26 | 5 | 0.80, 0.80 | 1.36 | * | 1 | 100 | BeCu |
| APC0401-41700 | sharp+sharp | 27 | 5.5 | 0.34, 0.34 | 0.58 | * | 2 | 70 | BeCu |
| APC0401-41738 | sharp+sharp | 29.5 | 6.5 | 0.50, 0.50 | 0.78 | * | 3 | 120 | BeCu |
